Specifications

Easywave


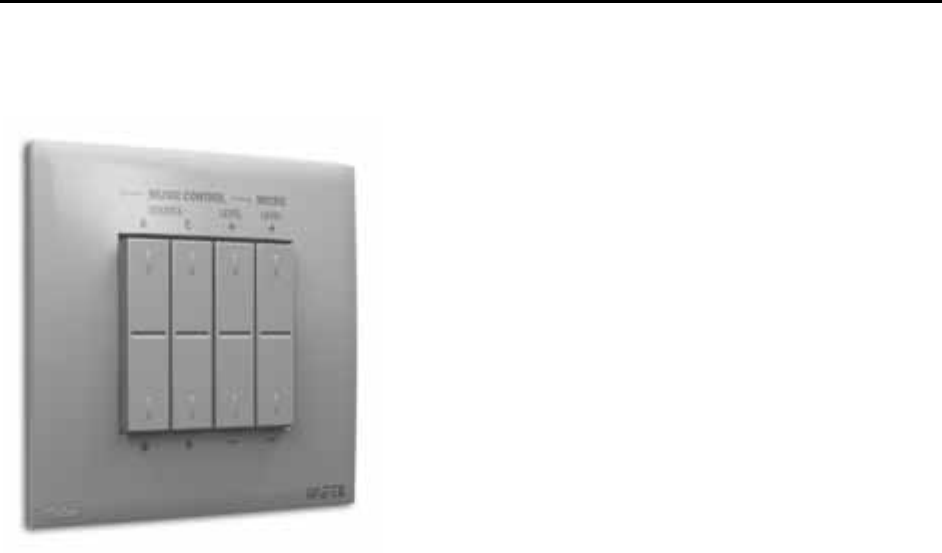

AnoptionalEasywavereceivermodulecanbemountedinsidethePM1122‐INT.AneightbuttonRF
switchcanbeassignedtoazoneofthePM1122.



4buttonsnamedAtoDareusedforselectingthesourceortorecallapreset.Bydefault,thesebuttons
areusedtoselectsourceAtoD.Nexttothatareanupanddownbuttoncontrollingthemu sicleveland
finallythesame2buttonscontrollingthemicrophonelevel.

AssigninganRFswitchisassimpleaspushingthe“Learn”buttonfromthecorrespondingzone(x)and
thanpushinganybuttonoftheRFswitchwithin5seconds.IncasethePM1122‐INTisinalessaccessible
place,thiscanalsobedonebyanRS232instruction.“LRNRFKEYZONEx\n”hasthesameeffectas
pushingthe“Learn”buttonfromzonex.Clearingthememoryorun‐assigningtheRFswitchesalsocan
bedonein2ways:pushingthe“Clear”buttononthePM1122‐INTforatleast2secondsorbythe
instruction“CLRRFKEYALL”.

Assigningthefirst4buttons(AtoD)fromzonextoapresetcanonlybedonebythefollowing
instruction:
SETRFKEYZONExPRESET\n

Thepresetsthatarerecalledare1to4iftheswitchisassignedtozone1or7to10iftheswitchis
assignedtozone2.

Toputitbacktoselectthesources,nextinstructionneedstobeexecuted:
SETRFKEYZONExSELECT\n 

There’salsoafeaturethatbothmusicasmiclevelcanbeputatminimumbydoubleclickingthevolume
downbutton.Thisfeature isenabled by“SETDOUBLECLICKON\n”ordisabledby“SETDOUBLECLICK
OFF\n”.
