PN Driver IC
Additionally to the well established H-Bridge and 3-phase
gate driver ICs, Infineon recently released a PN Driver IC.
It is designed to drive one high-side p-channel MOSFET and
one low-side n-channel MOSFET. With that approach,
new cost optimized drive solutions can be achieved.
Applications

Fan and pump control

Wiper

Electric park brake
Basic Features

PWM interface drives 1P and 1N
Channel Power MOSFETs

Separate control input for each
MOSFET

0 … 100% Duty cycle of High and
Low Side MOSFETs

Adjustable dead time
Diagnostic Features

One Error output to µC

Over temperature protection

Under voltage lock out

Short circuit protection
Product Type Operating Range
[V]
OpAmp Adjustable dead
time
Reverse Polarity
Protection
Diagnostic Package
1)
IPN10EL-S 4.0 … 40 0 Yes No UV, OT, SCD


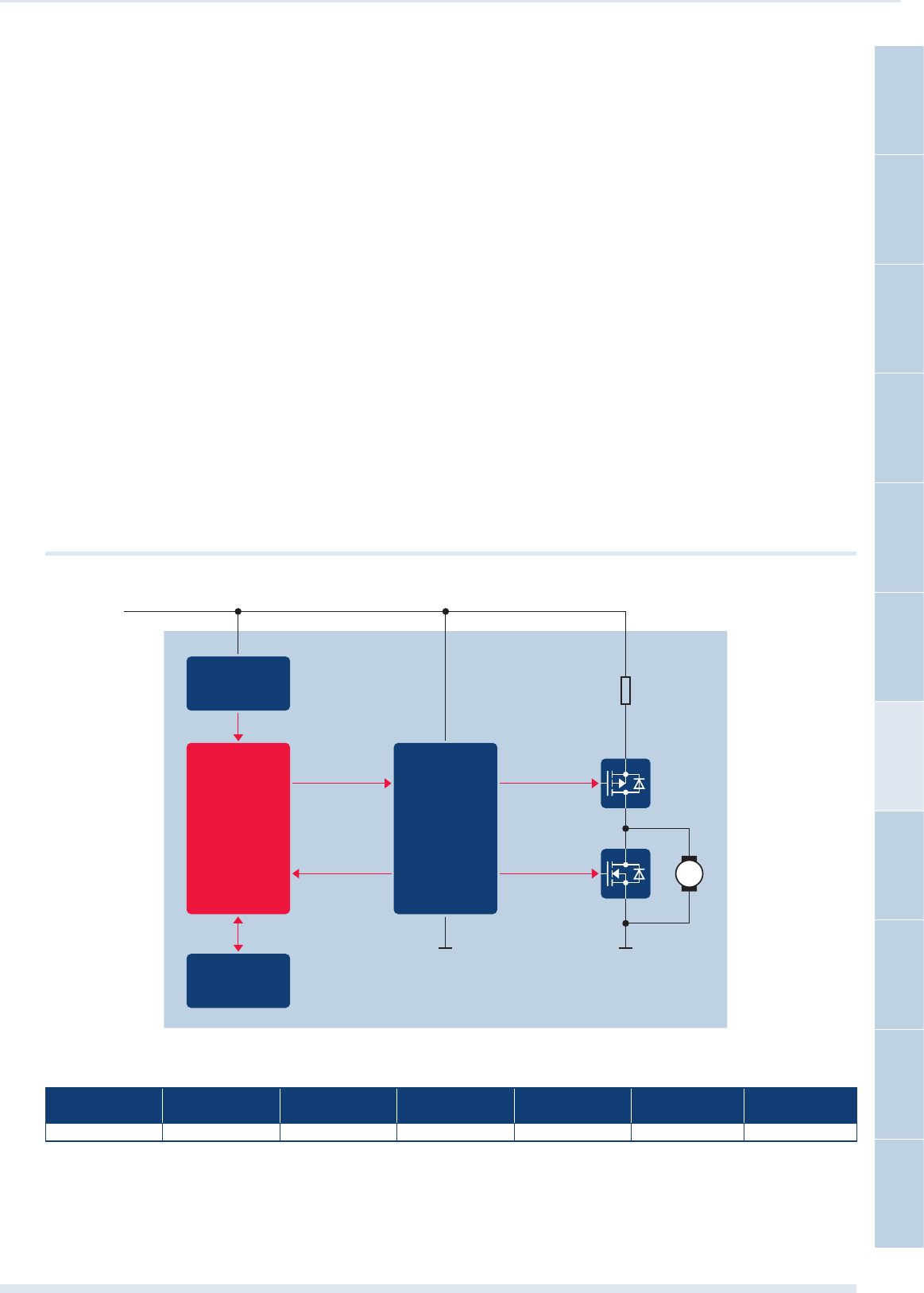

27
M
Microcontroller
or
Digital ASIC
PN
Driver IC
IPN10EL-S
Supply ICs
CAN / LIN
Transceiver
PWM
Diagnosis Gate Drive SFET
Gate Drive PFET
e.g.
IPD90P04P4-05
e.g.
IPD90N04N4-05
+12V from Battery
1) See packages on page 112
