System Benefits
Automotive LED drivers for high-
brightness LEDs
LED driver ICs supporting various
DC/DC topologies
(buck, boost, SEPIC, flyback)
Microcontroller peripherals enable
light control with a low CPU load
System basis chips combine supply,
network transceiver and supervision
functions in a monolithic device
System Benefits
High-performance, scalable
microcontroller family for various
classes of HVAC control algorithms
Integrated motor control with
diagnostics
Dedicated multi half-bridge
devices for flap motor control with
potentiometer feedback
Powerful half-bridge devices
(NovalithIC™) with high-frequency
PWM capability for the blower
control

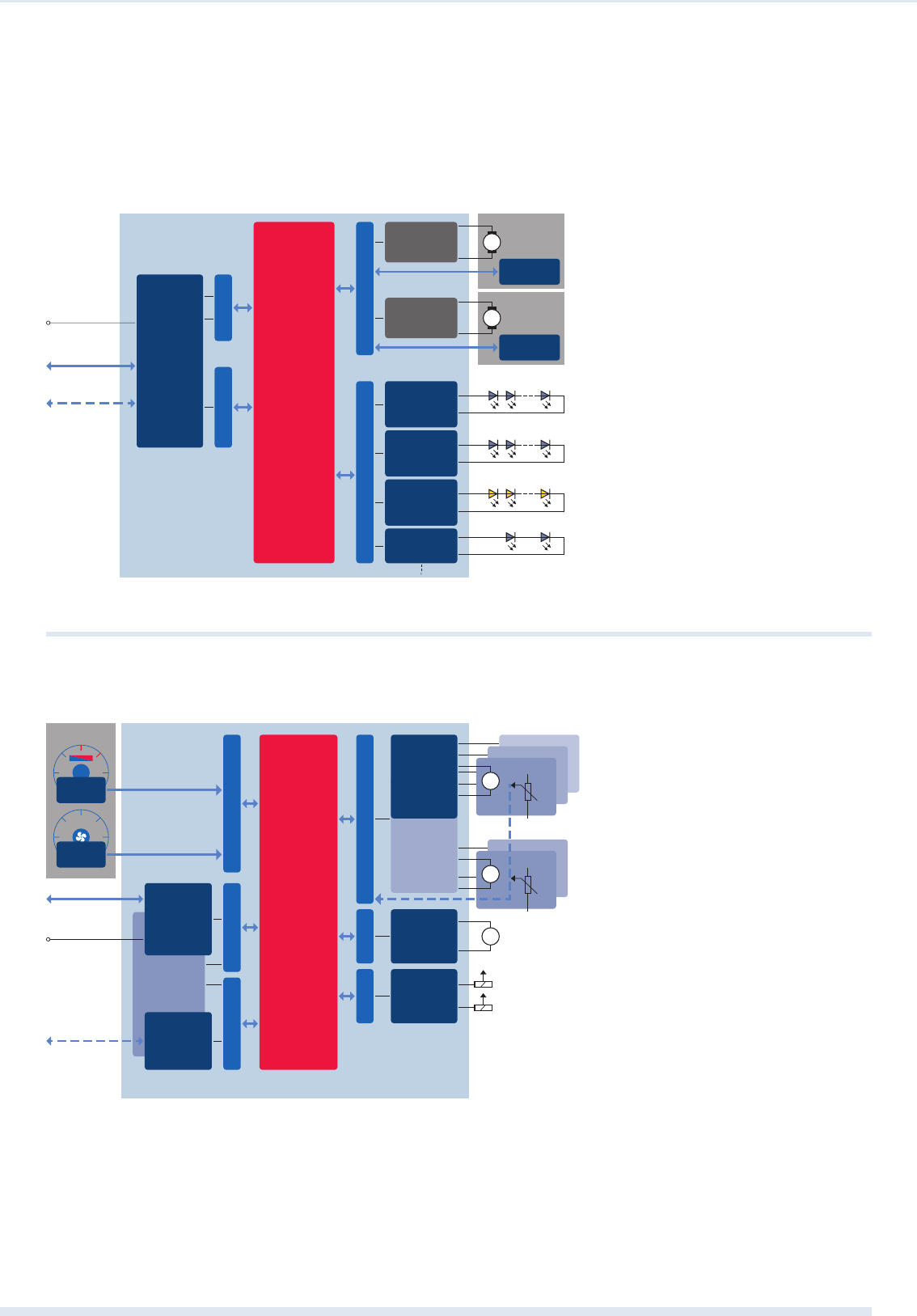

Decentralized Front Light Module
HVAC Control Module Low to Mid-End/Manual + Semi-Automatic
8-bit
Microcontroller
XC8xx
16/32-bit
Microcontroller
XC22xx
Decentralized
Light Control Module
SupplyCommunication
LED Driver Motor Driver / Beam Control
System Basis
Chip
TLE9260
TLE9261
Power LED Driver
TLD5045EJ
Position Light or Fog Light
Further LED channels
Turn Indicator
Headlight Lowbeam
Power LED Driver
TLD5095EL
TLD5097EL
TLD5098EL
Power LED Driver
TLD5095EL
TLD5097EL
TLD5098EL
Power LED Driver
TLD5095EL
TLD5097EL
TLD5098EL
Position Sensor
TLE4964
Stepper
Motor Driver
Daytime Running Light/
Position Light
Light Leveling
M
Position Sensor
TLE4964
Stepper
Motor Driver
Curve Light
M
Optional:
LIN Bus
CAN Bus
+12V from Battery/
+12V Switched
Flap #3
Flap #5
8-bit
Microcontroller
XC8xx
16/32-bit
Microcontroller
XC22xx
HVAC Control
Module
Control Panel
LIN LDO
TLE8458G
Optional:
Linear VREG
TLE42xx4
CAN Transceiver
TLE7250G
TLE6251-3G
TLE6251D
Hall Switch
TLE4966(V)
Hall Switch
TLE4966(V)
Communication
Motor DriverLS Driver
Supply I/O
SPI / Mirror Control
Multi
Half-Bridges
TLE84106EL
(3 Flaps)
Multi
Half-Bridges
TLE84110EL
(5 Flaps)
Optional:
System Basis Chip
TLE926x
TLE926x-3
1)
TLE927x
M
Flap #4
M
Blower Motor
Absolute Position Sensing
Further
High-Current Loads:
Heater, A/C on,
Defrost etc.
Flap #2
M
Flap #1
LIN Bus
Optional:
CAN Bus
SPI
+12V from Battery/
+12V Switched
2
13
04
NovalithIC™
BTN89xxTA
PROFET™
BTF50060-1TEA
HITFET™
BTS3405G
BTS3800
1) Supports CAN
partial networking
