www.infineon.com/trilithic
Basic Features

Low quiescent current

Capable for high PWM frequency
Diagnostic Features

Overvoltage

Overtemperature

Short-circuit/overcurrent

Current sense/status

Open-load
Protection Features

Overvoltage

Undervoltage

Overtemperature

Short-circuit/overcurrent
Trilith IC – Integrated H-Bridge
CS = Current Sense
OL = Open-Load
OV = Overvoltage
UV = Undervoltage
OT = Overtemperature
SC = Short-Circuit
OC = Overcurrent
1) See packages on page 112
2) AEC std. grade 3, T
j
(max) = 110°C
M
BTM77xxG*
* Except BTM7752G/7755G
IL2
SL2SL1
DHVS
GND
IL1
IH2
IH1
SH2
DL2
SH1
DL1
ST
I/OI/O I/OI/O I/O
i.e. XC866
Reset
I/O I
V
DD
V
SS
TLE4278
TLE4678
TLE4291
WO
I/O WI
RO
Q
D
GND
Microcontroller Voltage Regulator
V
S

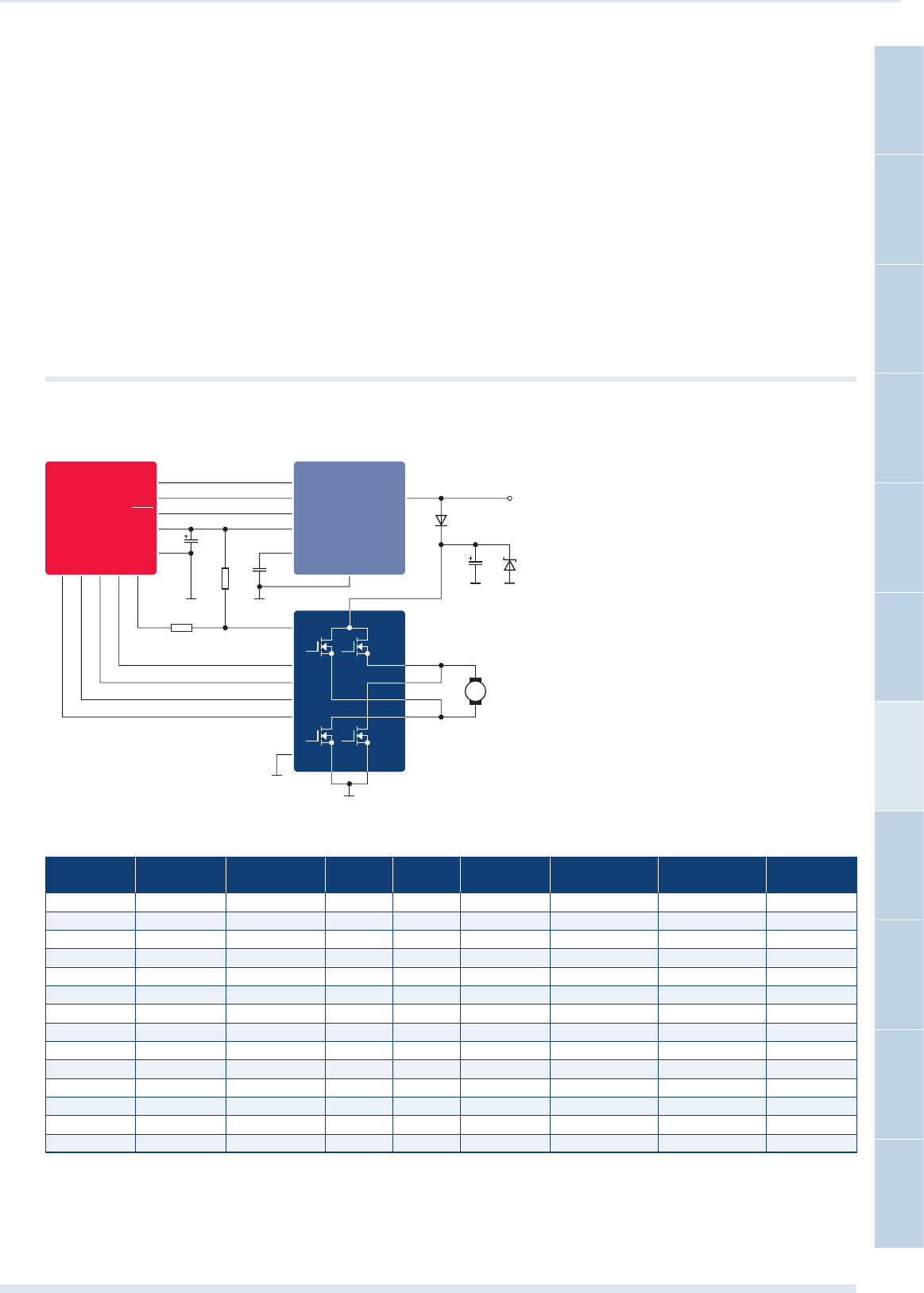

Application Example Trilith IC
Product Type Operating
Range [V]
R
DS(on)
path (typ)
@25°C [mΩ]
I
D(lim)
(typ)
[A]
I
q
(typ)
[µA]
Switch freq.
(typ) [kHz]
Diagnosis Protect Package
1)
BTM7740G 4.8 ... 42 210 8.0 5 1 OT OT, SC

10
BTM7741G 4.8 ... 42 210 8.0 5 1 OT, OL OT, SC

10
BTM7700G 4.8 ... 42 190 9.5 5 1 OT OT, SC

10
BTM7750G 4.8 ... 42 115 12.0 5 1 OT OT, SC

10
BTM7750GP
2)
4.8 ... 42 115 12.0 5 1 OT OT, SC

40
BTM7751G 4.8 ... 42 115 14.0 5 1 OT, OL OT, SC

10
BTM7710GP
2)
4.8 ... 42 110 15.0 5 1 OT OT, SC

40
BTM7710G 4.8 ... 42 110 15.0 5 1 OT OT, SC

10
BTM7810K
2)
5.0 ... 42 40 42.0 4 1 OT, OL OT, SC

40
BTM7811K
2)
5.0 ... 42 40 42.0 4 20 OT, OL OT, SC

40
BTM7742G 5.5 ... 28 250 12.0 5 25 OV, OT, SC/OC, CS OV, UV, OT, SC/OC

11
BTM7745G 5.5 ... 28 250 12.0 5 1 OV, OT, SC/OC OV, UV, OT, SC/OC

11
BTM7752G 5.5 ... 28 150 12.0 5 25 OV, OT, SC/OC, CS OV, UV, OT, SC/OC

11
BTM7755G 5.5 ... 28 150 12.0 5 1 OV, OT, SC/OC OV, UV, OT, SC/OC

11
Trilith IC Product Overview
