Standard Features

SPI Interface

I
Q
= 3µA

Operating Range: 8–20VS
Product Type Outputs I
L(lim)
[A]
R
DS(on)
[mΩ]
Driver
Stage
Operating Range
[V]
Protect Diagnosis Target Load Package
1)
TLE8201R
2)
1, 2 8.0 120 Half-bridge
8–20 OC, OT, OV, UV
CS Central lock

13
3, 4 3.0 350 Half-bridge CS Mirror folding
5, 6 1.25 650 Half-bridge OC, OT Mirror X-Y
7 6.25 85
High-side switch
(mirror defrost)
CS Mirror defrost
8–11 1.8 400 Lamp driver OC, OT Repeater
TLE8203E
4 3.0 350 Half-bridge
8–20 OC, OT, OV, UV
CS Mirror folding

12
5, 6 1.25 650 Half-bridge OC, OT Mirror X-Y
7 6.25 85
High-side switch
(mirror defrost)
CS Mirror defrost
8, 10 1.8 400 Lamp driver OC, OT Repeater
LO = Lockout
OL = Open-Load
OV = Overvoltage
OC = Overcurrent
UV = Undervoltage
OT = Overtemperature
SC = Short-Circuit

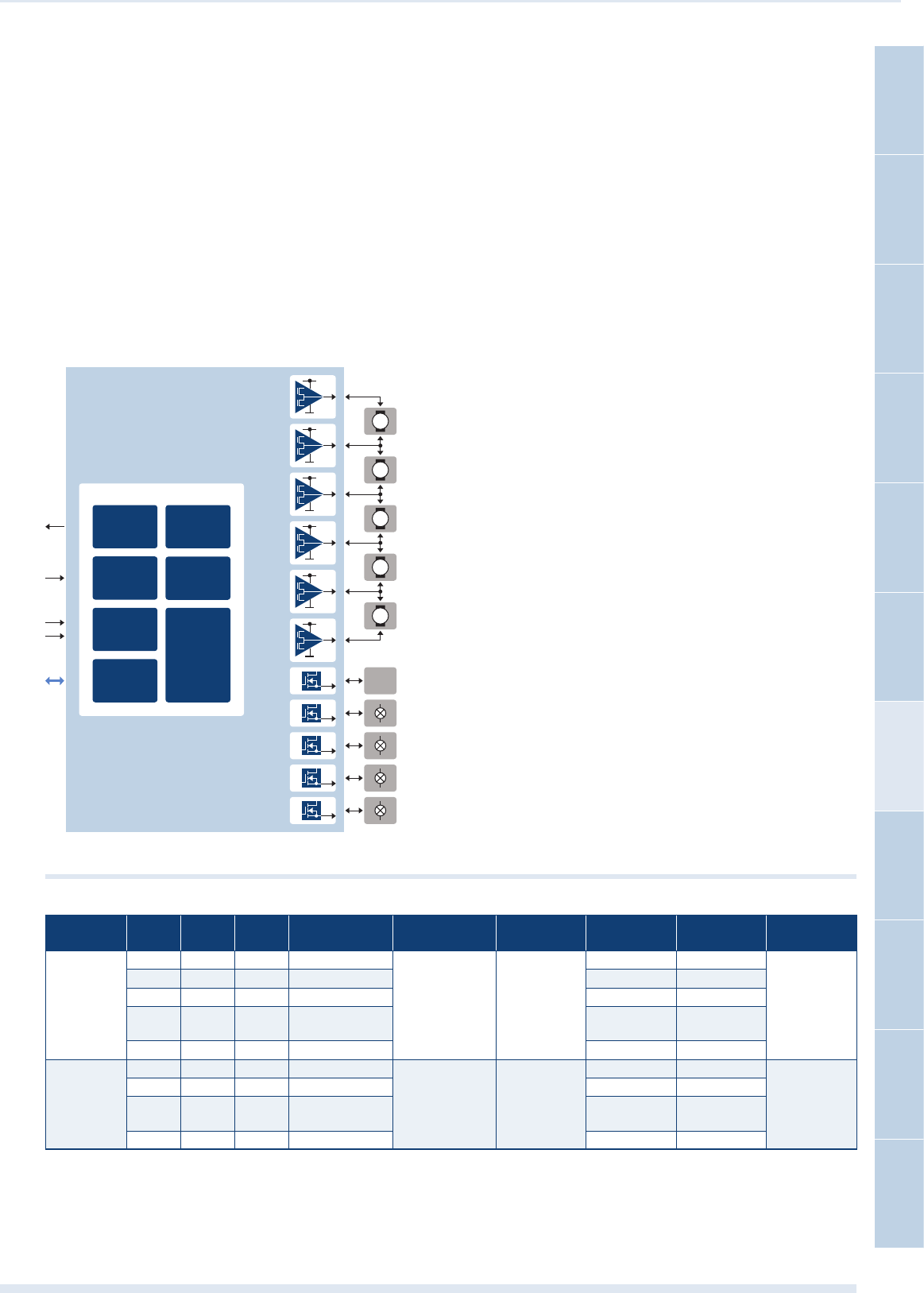

Current
Sense
Inhibit
PWM
SPI
RevPol
MOS
Driver
Fault
Detect
Logic
and
Latch
Power Logic
OUT11
OUT10
OUT9
OUT8
OUT7
OUT6
OUT5
OUT4
OUT3
OUT2
OUT1
Door
Lock
Safe
Lock
Mirror Fold
3A
Mirror x
1.25A
Mirror y
1.25A
Mirror Heat
6.25A
Lamp
5/10W or LED
Mirror
Heat
Lamp
5/10W or LED
Lamp
5/10W or LED
Lamp
5/10W or LED
TLE8201
M
M
M
M
M
1) See packages on page 112
2) Product not intended for new design
The TLE8201R is an ASSP for door-module applications. It
includes those power stages necessary to drive the following
loads in a typical front door: Central lock, mirror fold, mirror
position, mirror defrost plus 5 and 10W lamps. It is designed
as a monolithic circuit in a SPT technology which combines
bipolar and CMOS control circuit with DMOS power devices.
Door Module ICs
The TLE8203E is a derivative of the TLE8201R for
automotive mirror control applications. The following
output stages are included in this monolithic device, mirror
position, mirror defrost and one lamp driver for
5 or 10W.
