www.infineon.com/dc-motor-bridges

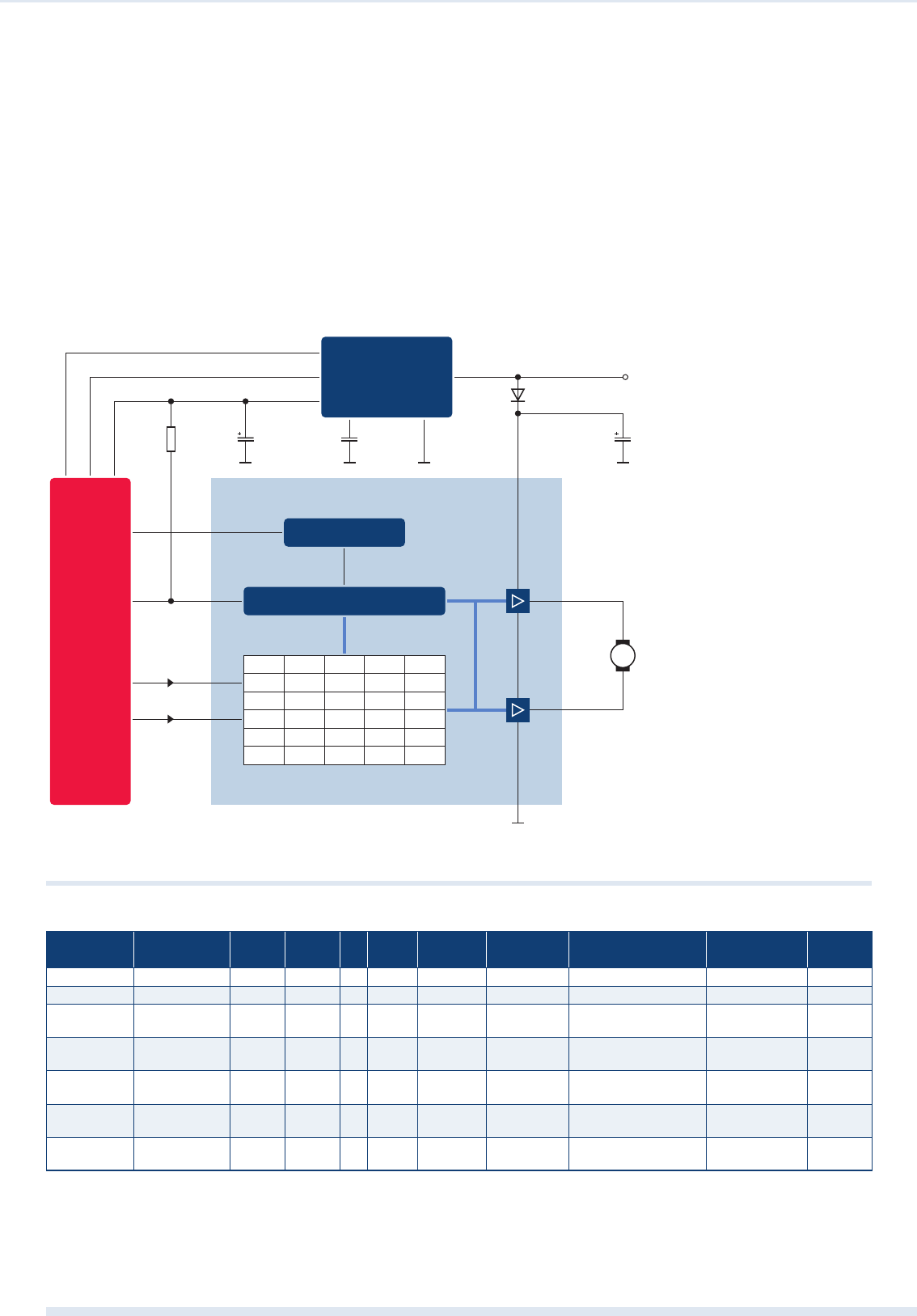

INH
0XXZZ
100LL
101LH
110HL
111HH
IN1 IN2
Fault Detection
Inhibit
OUT1 OUT2
DRV2
3, 4, 5
10, 11, 12
DRV1
13
7
8
9IN1
EF
INH
Watchdog
WD
R
V
CC
Reset
Polarity Protection
Diode
Q
IN2
6
1
2
e.g.
Infineon
XC866
Voltage Regulator
TLE4263-2ES
TLE4207G
C
D
100nF
C
Q
22µF
C
S
22µF
R
Q
10kΩ
D GND
GND
OUT1
I
OUT2
V
Bat
V
S
M
Basic Features

OV = Overvoltage

UV = Undervoltage

OT = Overtemperature

SC = Short-Circuit
Product Type Config. I
L(NOM)
[A]
I
L(LIM)
[A]
I
q
V
S(op)
[V]
Protection Diagnostic
Interface
Highlights V
CE(sat)
/R
DS(on)
Package
1)
TLE4207G 2x Half-bridge 2 x 0.8 2 x 1.5 20 8 ... 18 LO Status flag Error det. 1.2V
2)

4
TLE4208G 4x Half-bridge 4 x 0.8 4 x 1.5 20 8 ... 18 LO Status flag Error det. 1.2V
2)

10
TLE8444SL 4x Half-bridge 4 x 0.5 4 x 0.9 1 8 ... 18 OL Status flag
Open-load detection in
ON-State
600mΩ/switch

29
TLE6208-3G 3x Half-bridge 3 x 0.8 3 x 1.0 10 8 ... 40 LO 16-bit SPI
Detailed diagnosis
via SPI
800mΩ
3)
/switch

4
TLE6208-6G 6x Half-bridge 6 x 0.8 6 x 1.0 12 8 ... 40 LO 16-bit SPI
Single switch
usage possible
800mΩ
3)
/switch

10
TLE84106EL 6x Half-bridge 6 x 0.3 6 x 0.5 2 7 ... 18 OL 16-bit SPI
Pin compatible to
TLE84110EL
800mΩ
3)
/switch

30
TLE84110EL 10x Half-bridge 10 x 0.3 10 x 0.5 2 7 ... 18 OL 16-bit SPI
Pin compatible
to TLE84106EL
800mΩ
3)
/switch

30
1) See packages on page 112
2) Total drop saturation voltage typ. value @ 25°C and 0.4A
3) R
DS(on)
is typical and specified @ T
j
= 25°C
LO = Lockout
OL = Open-Load
The TLE4207, TLE4208, TLE6208-3/-6 and TLE841xxEL
are multipurpose bridges designed to drive DC brush
motors with nominal load currents < 1A for automotive
Motor Control ICs
and industrial applications. The TLE4207 and TLE4208
parts are built using Infineon’s robust bipolar technology
DOPL. TLE6208-3/-6 and TLE84xxx use SPT, a technology
combining bipolar, CMOS and DMOS cells.
Integrated Low-Current Motor Drivers
