www.infineon.com/dc-motor-bridges
Product Type I
L(NOM)
[A]
I
L(lim)
[A]
I
q
[µA]
V
S(op)
[V]
Step
Operations
Protection Diagnostic
Interface
Highlights Package
1)
Current controlled
TCA3727G 2 x 0.75 2 x 1.5 200 5–50 Full to mini step OT –
High operating voltage,
low quiescent current
with inhibit

9
TLE4726G 2 x 0.75 2 x 1.5 200 5–50 Full to mini step OT –

9
TLE4729G 2 x 0.7 2 x 1.5 50 6–16 Full to mini step OL, OT, SC Status flag
Very low quiescent
current with inhibit

9
Voltage controlled
TLE4208G 4 x 0.8 4 x 1.5 20 8–18 Full to half-step SC, OT, OV, UV Status flag Dual Full Bridge

10
TLE8444SL 4 x 0.5 4 x 0.9 1 8–18 Full to half-step SC, OT, OV, UV, OL Status flag
Open-load detection in
ON-State

29
The Infineon low-current DC motor bridge family consists
of a broad variety of bridges for stepper and DC brush
motors including servo motors. They are designed for
use in automotive and industrial applications. Typical
applications are light leveling, HVAC flap control, and
mirror adjustment.
The products are oered with protection features as well as
diagnosis. Depending on the product type the protection
ranges from basic protection against overtemperature to
a full set of protection against open-load, overvoltage,
undervoltage, overtemperature and short-circuit. The
diagnosis capabilities range from a simple status flag to
communication via a 16-bit SPI.
LO = Lockout
OL = Open-Load
OV = Overvoltage
UV = Undervoltage
OT = Overtemperature
SC = Short-Circuit
Integrated Low-Current Motor Drivers
Product Table
1) See packages on page 112

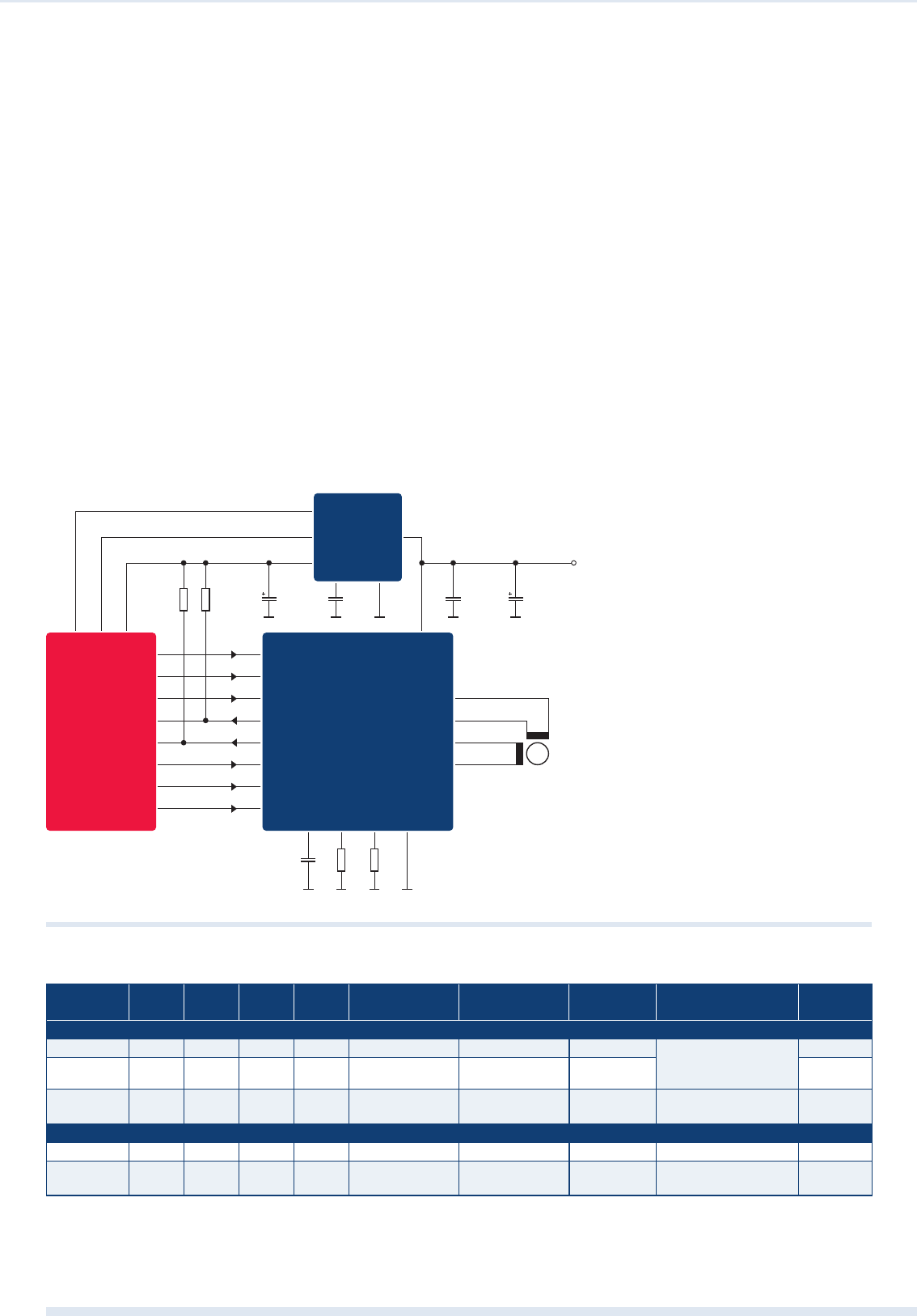

Stepper Motor Drivers
The TCA3727 and TLE4726 et seqq. cover a broad range of
applications from automotive to industry. The TLE4726
can be used in 24V applications. The products are either
produced in DOPL, Infineon’s robust bipolar technology, or
SPT, a technology combining bipolar CMOS and DMOS cells.
1
2
3
21
14
24
9
12
16
13
23
22
C
D
100nF
C
Q
22µF
R
pullup2
10kΩ
R
pullup1
10kΩ
R
2
1Ω
R
1
1Ω
V
S
V
CC
RWD
Watchdog
ResetI
11
Q
D
22nF
41510 5, 6, 7, 8
17, 18, 19, 20
Stepper
Motor
GND
TLE4729G
TLE4263-2ES
Microcontroller
XC866
I10
I11
Phase 1
Error 1
Error 2
I20
Q11
Q12
Q21
Q22
I21
OSC GND
Phase 2
100nF 100µF
+12V
M
