Body Applications
System Benefits
Reduced board space due to integrated functionality
Protected load control with sophisticated diagnostic
features
Supports the “Limp Home” functional safety concept
High scalability and benchmark short-circuit robustness
of power semiconductors (PROFET™)
Supports a smooth transition to LEDs for interior and
exterior lighting

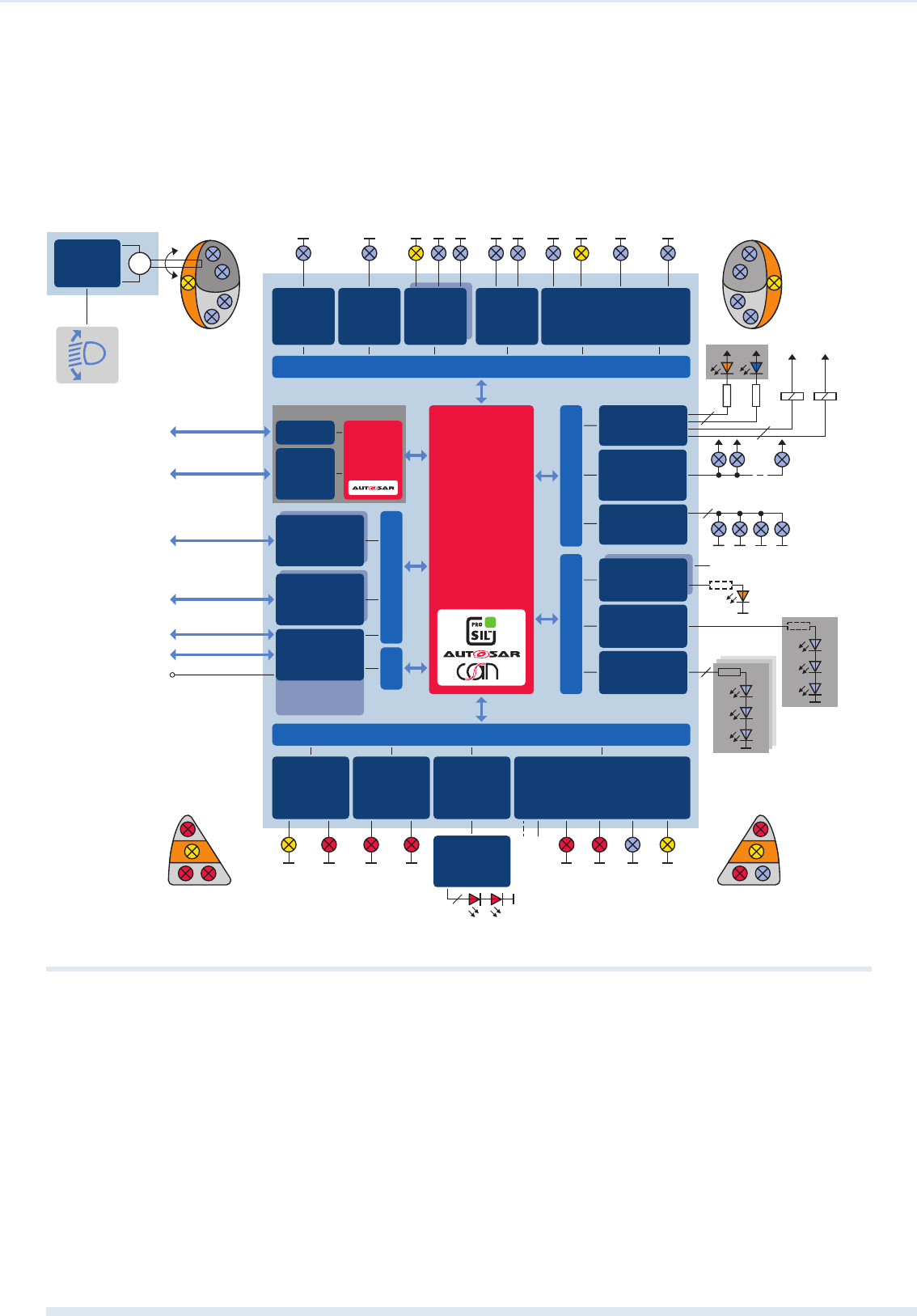

Body Control Module
Highbeam
65W
Lowbeam
55W
Add,
5W
Out
Park
10W
Indicator
27W
Park
10W
DRL
21W
Optional Fog
2x 55W
Indicator
27W
1) Supports CAN Partial Networking
Fog
27W
Multi-Channel High-Side DriverSingle or Dual High-Side Driver
Multi-Channel High-Side DriverSingle or Dual High-Side Driver
Lowbeam
55W
PROFET™
BTS5012-1
BTS5016-1/2
Highbeam
65W
PROFET™
BTS5008-1
BTS5010-1
PROFET™
BTS5045-2
BTS5120-2
PROFET™
BTS5016-1/2
PROFET™
BTS5045-1/2
Brake
27W
Backlight
10W
Exterior Light
with LEDs
Backlight
10W
Brake
27W
Reverse
27W
Indicator
27W
PROFET™
BTS5120-2
BTS5045-2
PROFET™
BTS5xxx-2
Basic LED Driver
TLD1314EL
TLD2314EL
TLD1124EL
SPOC™ FL
BTS5482SF
SPOC™+
BTS54220-LBx
SPOC™+
BTS54040-LBx
BTS55032-LBx
BTS56033-LBx
Headlight
Assembly
Rear Light
Assembly
Headlight
Assembly
Manual or
St
atic Automatic
Light Leveling
Rear Light
Assembly
SPIDER
TLE723x/4x
Linear LED Driver
BCR40x
TLD1211SJ
SPIDER
TLE723x
Servo Driver IC
TLE4209
TLE4206-2G
PROFET™
BTS5200-4
System Basis Chip
TLE926x
TLE926x-3
1)
TLE927x
CAN Transceiver
TLE6254-3G
TLE6251-3G
TLE6251D
HITFET™
BTS3110/18
BTS3134
BTS3160D
Basic LED Driver
TLD1120EL
TLD1314EL
CAN TRX
TLE7250G
TLE6251-3G
TLE6251D
XC22xx Family
(optional)
FlexRay TRX
TLE9221SX
Optional:
DC/DC Regulator
TLF50281
Low-/High-Side DriverLED Driver
CommunicationSupply
Interior Light
Interior Light
Logic Signals on V
BAT
Level
e.g. Switched V
BAT
Rails
LEDs
Body Control Module
Interior LEDs
Ambient
LEDs
n
n
n
4
m
Relays
32-bit
Multicore/Lockstep
Microcontroller
AURIX™
16/32-bit
Microcontroller
CAN Bus
FlexRay
CAN Bus
CAN Bus
LIN Transceiver
TLE7259-3GE
TLE7258SJ/LE
TLE7269G
LIN Bus
1x … 4x LIN Bus
+12V from Battery
Optional Gateway
M
FD
