www.infineon.com/basic-led

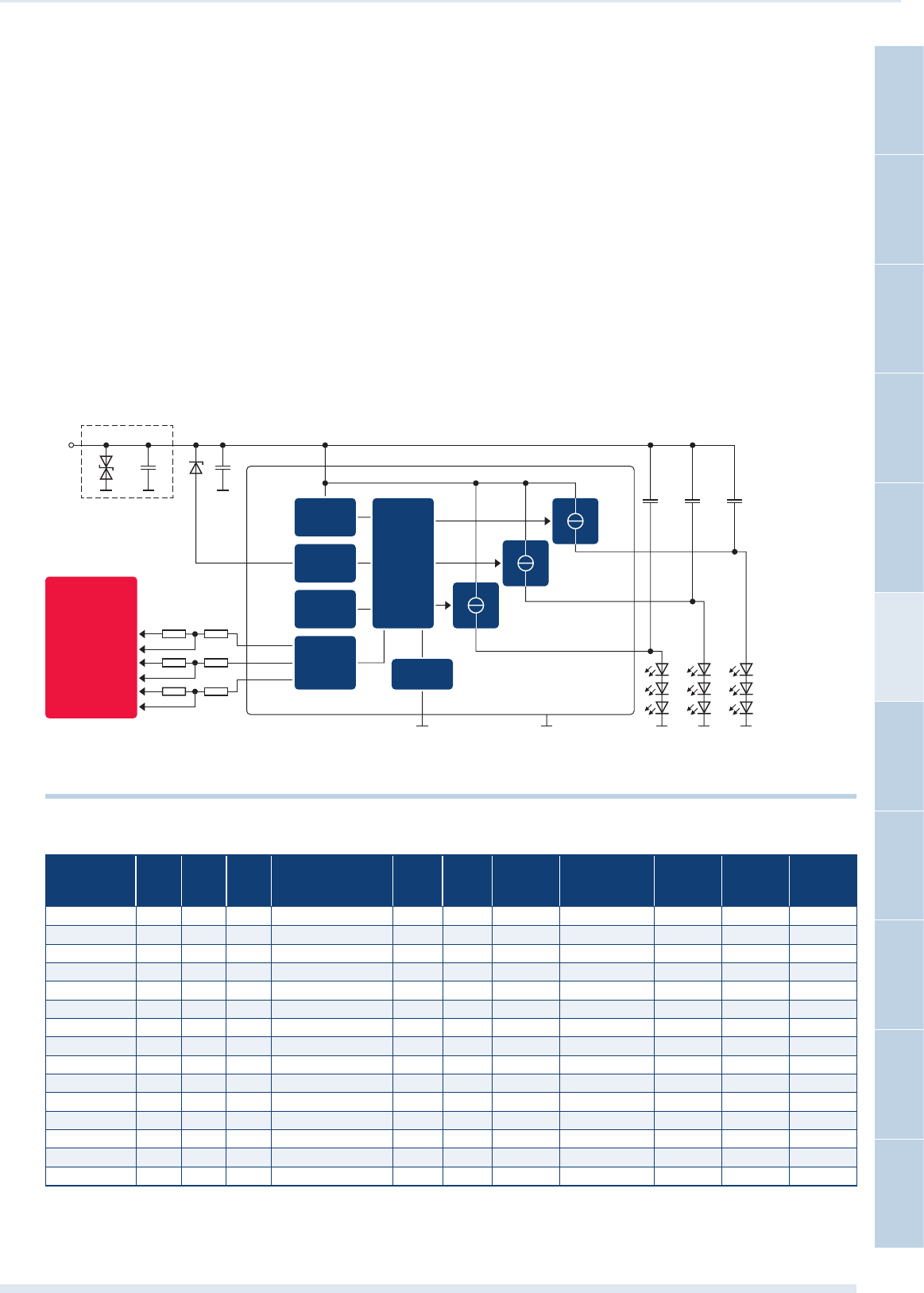

Application Diagram TLD2314EL
V
S
V
BATT
Output
Control
Microcontroller
(e.g. XC866)
OUT3
1)
OUT2
1)
OUT1
1)
IN3
IN1
IN2
Internal
Supply
Thermal
Protection
Status
Current
Adjust
Diagnosis
Enable
DEN
IN_SET3
RSET/2
ISO-Pulse protection circuit
depending on requirements
RSET/2
IN_SET2
IN_SET1
1) Open Drai
n
2) For EMI improvement, if required
GNDST
OUT1
OUT2
OUT3
C
VS
= 4.7nF
4.7nF
2)
4.7nF
2)
4.7nF
2)
C
mod
= 2.2µF
Basic LED Driver
Product Type 1 IN
1 OUT
1 IN
3 OUT
3 IN
3 OUT
Output Current (typ.)
mA per Channel
PWMI N - 1 OL & SC
Detection
OL & SC with
Double Fault
Detection
DEN Matrix Package
1)
TLD1120EL
l
180
27
TLD1310EL
l
60
27
TLD2310EL
l
60
27
TLD1312EL
l
60
l
27
TLD1311EL
l
60
l
27
TLD1121EL
l
180
l
27
TLD2311EL
l
60
l
27
TLD1313EL
l
60
l
27
TLD1124EL
l
180
l l
27
TLD1314EL
l
60
l l
27
TLD2314EL
l
60
l l
27
TLD1125EL
l
180
l
l
27
TLD1315EL
l
60
l l
l
27
TLD1326EL
l
60
l l
l
27
TLD2326EL
l
60
l l
27
Product Table
1) See packages on page 112
Infineon® Basic LED Driver
Flexible linear current source family with scalable feature set
Infineon’s Basic LED driver are optimized for the control
of low to medium power LEDs in automotive applications.
The whole family of linear constant current sources oers
footprint compatibility ranging from 1 to 3 output channels
and 60–180mA and enables stable and reliable LED
brightness by precise current control.
Its diagnostics and logic feature set enables improved
system reliability by significant component reduction on
board level, improved system protection (e.g. against ISO
pulses), as well as an energy optimized system solution
(DC/DC control).
PWMI = Internal PWM dimming engine
N - 1 = Complete device deactivation during Open Load
OL = Open Load Diagnosis
SC = Short Circuit Diagnosis
DEN = Diagnosis Enable Input
Matrix = Feedback to DC/DC to optimize efficiency
