HITFET™:
Low-Side Protected Switches
HITFET™ provides a high level of protection for
overtemperature, short-circuit, overcurrent,
overvoltage, open-load and ESD-sensitive circuits.
HITFET™ combines all these protection features
in one easy-to-use device.
Infineon has recently expanded its HITFET™ portfolio
with the new product BTF3050TE.

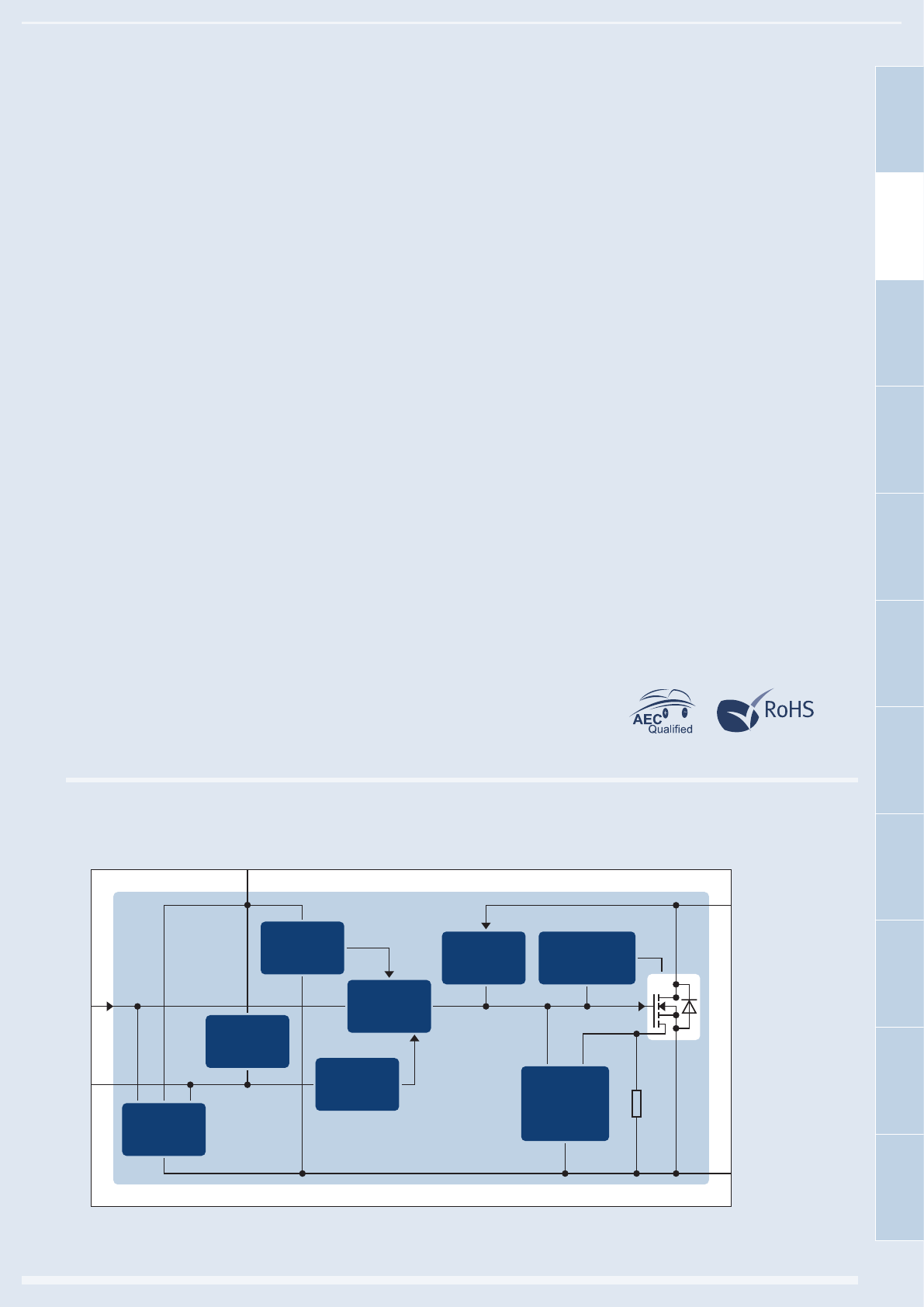

Block Diagram HITFET™+ BTF3050TE
Short Circuit
Detection /
Current
Limitation
Overtemperature
Protection
OUT
IN
SRP
V
DD
Overvoltage
Protection
Slew Rate
Adjustment
Unit
Supply
Unit
Status
Feedback
ESD
Protection
Gate
Driving
Unit
Features

Overtemperature protection

Overload protection

Current limitation

Short-circuit protection

Open-load detection (only on BTS3408G)

Thermal shutdown with auto-restart
or latch behavior

Overvoltage protection

Logic level input

Electrostatic Discharge (ESD) protection

Linear drive capability

Status feedback
– Digital flag or with external resistor
– Analogous with external resistor at input

Slew rate adjustable (only on BTF3050TE)
Automotive and Industrial Applications

Relays

Fans and pumps

Solenoids

Valves

Heating element

Bulbs and LEDs

Fuses

Line drivers and supply switches
www.infineon.com/hitfet
