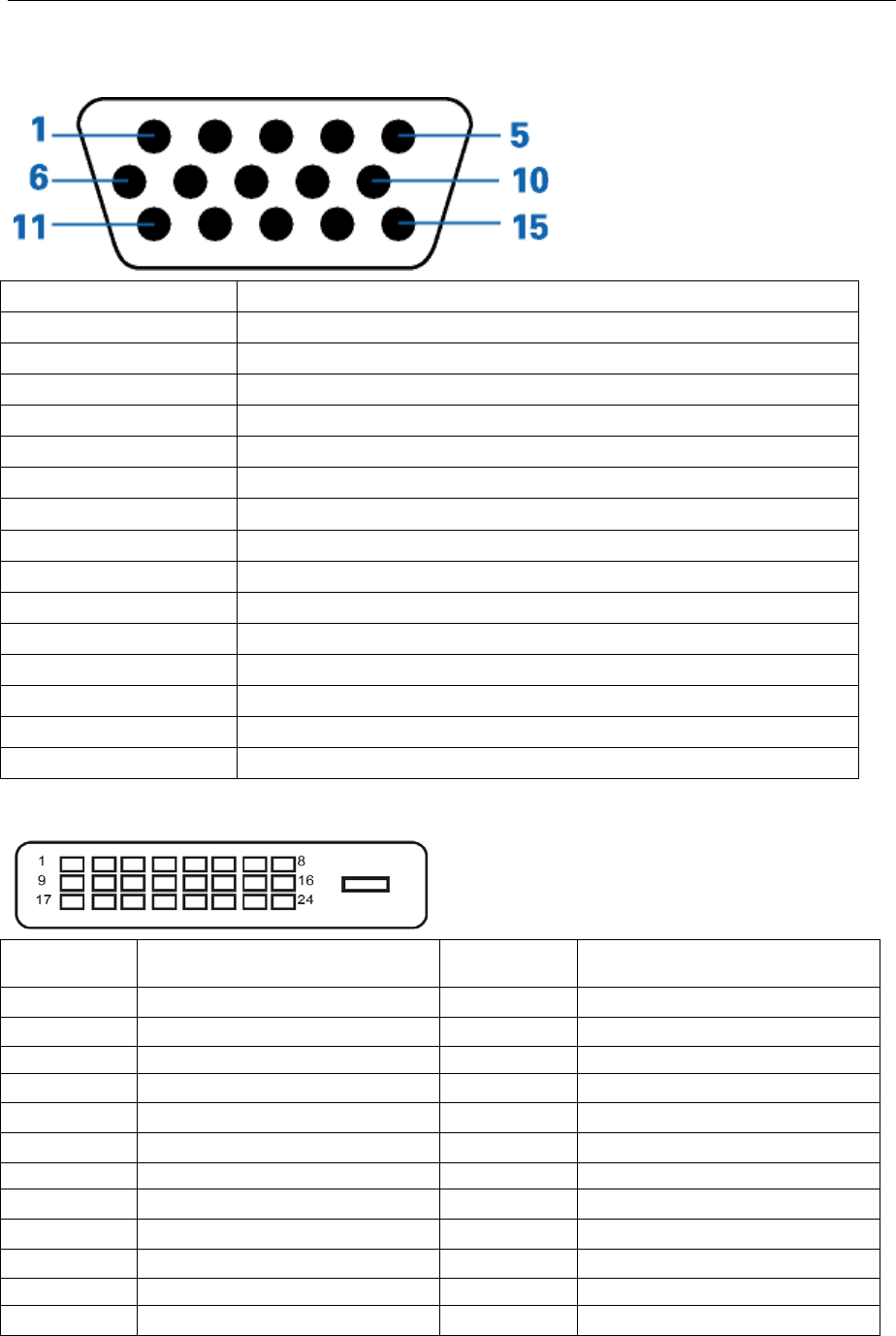

Pin Assignments
Pin Number
15-Pin Side of the Signal Cable
1
Video-Red
2
Video-Green
3
Video-Blue
s
N.C.
5
Detect Cable
6
GND-R
7
GND-G
8
GND-B
9
+5V
10
Ground
11
N.C.
12
DDC-Serial data
13
H-sync
14
V-sync
15
DDC-Serial clock
Pin Number
24-Pin Color Display Signal
Cable
Pin Number
24-Pin Color Display Signal
Cable
1
TMDS data 2－
13
TMDS data 3＋
2 TMDS data 2＋ 14 ＋5V Power
3 TMDS data 2/4 Shield 15 Ground (for+5V)
4
TMDS data 4－
16 Hot Plug Detect
5
TMDS data 4＋
17
TMDS data 0－
6 DDC Clock 18 TMDS data 0＋
7 DDC Data 19 TMDS data 0/5 Shield
8 N.C. 20
TMDS data 5－
9 TMDS data 1－ 21 TMDS data 5＋
10 TMDS data 1＋ 22 TMDS Clock Shield
11 TMDS data 1/3 Shield 23 TMDS Clock +
12
TMDS data 3－
24
TMDS Clock －
