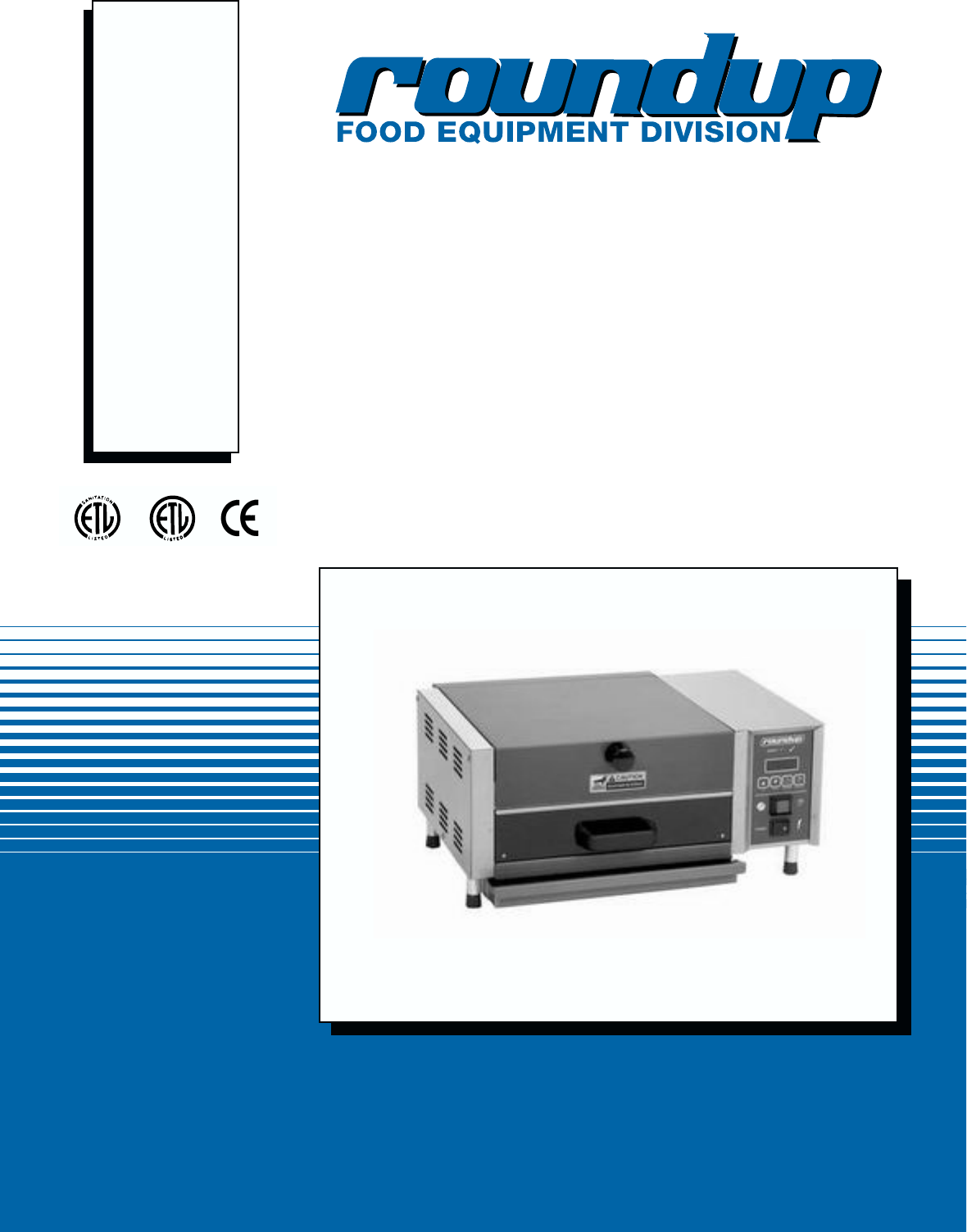

MANUFACTURING NUMBERS: 9100420 9100426 9100428 9100430 9100436 9100438 9100450 9100456 9100458 9100460 9100462 9100466 9100468 9100480 9100486 MIRACLE STEAMER Models MS-150/155, ® C P/N 1010699 US MS-250/255 & MS-355 Rev.
A.J. Antunes & Co. MIRACLE STEAMER TABLE OF CONTENTS Operation ...................................................................8 General ......................................................................8 Operating Instructions ...............................................9 Programming .............................................................9 Steaming Tips ..........................................................11 Hi-Limit Reset Button...............................................
A.J. Antunes & Co. MIRACLE STEAMER Service/Technical Assistance Use only genuine Roundup replacement parts in this unit. Use of replacement parts other than those supplied by the manufacturer will void the warranty. Your Authorized Service Agency has been factory trained and has a complete supply of parts for this unit. If you experience any problems with the installation or operation of your unit, contact your local Roundup Authorized Service Agency.
A.J. Antunes & Co. MIRACLE STEAMER In addition to the warnings and cautions in this manual, use the following guidelines for safe operation of the unit. • WARNING ELECTRICAL SHOCK HAZARD. FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH. • Read all instructions before using equipment. • For your safety, the equipment is furnished with a properly grounded cord connector. Do not attempt to defeat the grounded connector.
A.J. Antunes & Co. MIRACLE STEAMER • The following tips are recommended for maintenance of your stainless steel equipment, - Stains and spots should be sponged using a vinegar solution as required. - - Finger marks and smears should be rubbed off using soap and water. - Hard water spots should be sponged using a vinegar solution. - Always use soft, damp cloth for cleaning, rinse with clear water and wipe dry. When required, always rub in direction of metal polish lines.
A.J. Antunes & Co. MIRACLE STEAMER Dimensions MS-150/155 & MS-250/255 21-3/16" (53.8 cm) 17-11/32" (28.8 cm) 20-3/4" 25" (52.7 cm) 14" (35.5 cm) 8-13/32" (21.4 cm) MS-355 17-5/32" (43.5 cm) 17-5/32" 25" (63.5 25" cm) P/N 1010699 Rev. B 14" 14" (35.
A.J. Antunes & Co. MIRACLE STEAMER INSTALLATION Unpacking Bolt 1. Remove unit and all packing materials from shipping carton. Guard 2. Open the large box. It should contain the following: • Miracle Steamer, • Handle, Handle Guard & Shoulder Bolt, (MS-150/250 only) • Water Hookup Kit (MS-250 only). Handle Spatula Figure 1. Assembling Handle–MS-150/250 Only NOTE: If any parts are missing or damaged, contact Antunes Technical Service IMMEDIATELY at 1-877392-7854 or 1-630-784-1000. work surface.
A.J. Antunes & Co. MIRACLE STEAMER WARNING ELECTRICAL SHOCK HAZARD. Filter FAILURE TO FOLLOW THE INSTRUCTIONS IN THIS MANUAL COULD RESULT IN SERIOUS INJURY OR DEATH. • Electrical ground is required on this appliance. • Do not modify the power supply cord plug. If it does not fit the outlet, have a proper outlet installed by a qualified electrician. • Do not use an extension cord with this appliance.
A.J. Antunes & Co. MIRACLE STEAMER Model MS-250/255 Quick Disconnect Insert Water Connect Fitting The MS-250/255 requires a direct water hookup. An installation kit is packed inside the unit. Hi-Limit Reset Button 1. Connect the 1/4" (6.5 mm) I.D. flexible tubing to your cold water line using the supplied hose clamp. Power Cord 2. Push the quick disconnect insert into the fitting on the back of the unit (Figure 4).
A.J. Antunes & Co. MIRACLE STEAMER IMPORTANT: Your 208V and/or 220-240V Miracle Steamer is factory programmed for the following settings: to zero and an audio signal will sound at the end of the steaming cycle. 6. Remove steamed product. • Total Cycle Time (CYC) = 15 minutes (Range: 3 secs to 99 mins 59 secs) WARNING To avoid injury, be careful when pulling spatula out from unit. Be sure to allow steam to escape before putting hands or face over the steamer.
A.J. Antunes & Co. MIRACLE STEAMER NOTE: Recommended settings are: MS-250/255 - [0_40] or 0.40 sec (120 VAC) MS-250/255 - [0_70] or 0.70 sec (208-240 VAC) MS-150/155/355 - [1_00] or 1.00 sec (208-240 VAC) 6. Depress the program button once and use the UP or DOWN arrow buttons to change the SHO (Shot Interval Time) in seconds (Item E, Figure 6). NOTE: 20 seconds is recommended. 10. Press the Start/Stop button to store the changes, exit the PROGRAM Mode and initiate the cooking cycle. 7.
A.J. Antunes & Co. MIRACLE STEAMER Steaming Tips Hi-Limit Reset Button • Pre-cooked pasta is easily reconstituted, and gives you a hot product without the wetness of the normal “dip” method. • Experiment with your products and different steaming times–a little more or less steam could change the appearance/flavor. • If you serve melted cheese on sandwiches, steam is the perfect way to melt cheese. • A steamed bun (which takes about 10-15 seconds) says “Hot Sandwich” to your customer.
A.J. Antunes & Co. MIRACLE STEAMER MAINTENANCE Daily WARNING Turn the unit off, disconnect the power source and allow the unit to cool down before performing any service or maintenance on the unit. 1. Turn the rocker switch (power on/off) to OFF. Unplug the power cord and allow the unit to cool down before proceeding. 2. Check the water quick disconnect fitting (MS-250) and all hose clamps connections for leakage. If leakage is apparent, tighten all clamps or replace part if required.
A.J. Antunes & Co. MIRACLE STEAMER 5. Examine all generator orifices (holes). If mineral deposits have formed, place a flat blade screwdriver into openings. Use a gentle twisting motion to scrape openings clean. 11. Clean unit surface with a hot, clean, damp cloth (not dripping wet) and wipe dry. 12. Re-install all parts and fasten the generator cover. 6. Use a brass or stainless steel wire brush to remove deposits from the generator surface.
A.J. Antunes & Co. MIRACLE STEAMER Water Filters–Models MS-150/155 To prevent solids or food products from entering the water pump, the unit uses two water filters (Figure 9). Inspect and clean (if necessary) these filters monthly using the following procedure: Top Water Filter 1. Turn the rocker switch (power on/off) to OFF. Unplug the power cord and allow the unit to cool down before proceeding. 2. Remove access cover and tank assembly. Bottom Water Filter 3.
A.J. Antunes & Co. MIRACLE STEAMER TROUBLESHOOTING WARNING To avoid possible personal injury and/or damage to the unit, inspection, test and repair of electrical equipment should be performed by qualified service personnel. The unit should be unplugged when servicing, except when electrical tests are required. Problem Unit will not heat up. Rocker (power on/off) switch is ON. Unit heats up but will not steam. or Possible Cause Unit is not plugged in. Plug power cord into outlet. Loose connections.
A.J. Antunes & Co. MIRACLE STEAMER Problem Possible Cause Steam from generator is Restrictor tube or generator tubes are reduced compared to former clogged. operation. Flooding condition. Unit becomes flooded or always steaming. Power ON, solenoid makes a chattering noise. or Unit floods overnight. Power OFF. Water leaking in the electrical housing. Corrective Action Clean restrictor tube and/or generator tubes. Allow 20 minutes for excess water to evaporate and generator to recover to 375°F.
A.J. Antunes & Co. Problem Unit heats up, pump or solenoid valve works with the momentary switch but will not steam during timer cycles. MIRACLE STEAMER Possible Cause Corrective Action Programming. See pages 8-10. If Ready light does not light but the unit steams regularly, the Ready light is inoperable. Contact maintenance or AJA Authorized Service Center. If the Ready light does light and the Contact maintenance or AJA Authorized unit does not steam, the control board Service Center.
A.J. Antunes & Co. MIRACLE STEAMER REPLACEMENT PARTS MS-150/155/250/255 64 17 15 74 16 57 57 11 53 53 10 20 41 18 36 73 6 42 75 53 21 24 7 9 RE 6 13 AD Y 62 66 12 70 37 35 89 87 86 65 85 81 79 80 82 83 88 3 81 84 85 18 P/N 1010699 Rev.
A.J. Antunes & Co. MIRACLE STEAMER MS-150/155/250/255 Item Part No.
A.J. Antunes & Co. MIRACLE STEAMER MS-150/155/250/255 NOTE: Refer to parts list on page 19. RE A AD Y INSET A (Model MS 150) 77 76 49 78 43 B C 4 B 46 C 28 32 43 33 31 46 23 54 INSET C (Model MS 150) INSET B (Model MS 150) 48 67 47 1 39 2 68 56 51 72 9 55 49 71 26 58 37 59 34 RE AD Y 43 A C C 27 69 54 19 61 60 20 P/N 1010699 Rev.
A.J. Antunes & Co. MIRACLE STEAMER MS-150/155/250/255 NOTE: Refer to parts list on page 19. 22 55 RE AD Y 55 INSET A (Model MS 250) A 45 5 30 29 28 32 33 45 23 INSET B (Model MS 250) 48 67 66 47 37 14 56 72 61 71 49 26 58 59 RE AD Y A 27 69 54 19 60 P/N 1010699 Rev.
A.J. Antunes & Co. MIRACLE STEAMER MS-355 Item Part No.
A.J. Antunes & Co. MIRACLE STEAMER MS-355 NOTE: Refer to parts list on page 22. AD WATD ER RE AD Y INSET A (Model MS 355) INSET B (Model MS 355) 82 80 51 54 51 81 AD WA D TE R 34 63 38 C B 59 B 79 41 17 39 40 78 C 23 36 79 33 35 37 41 40 29 A 20 38 47 83 INSET C (Model MS 355) 43 57 42 15 24 47 14 58 45 44 62 50 12 51 22 RE AD Y C 49 32 C 28 49 48 P/N 1010699 Rev.
A.J. Antunes & Co. MIRACLE STEAMER MS-355 NOTE: Refer to parts list on page 22. 53 27 26 25 47 47 2 21 46 46 19 10 74 75 77 73 76 46 11 1 25 A WADD TE R 30 13 71 18 70 RE 5 AD 7 Y 52 56 6 61 8 16 55 69 64 65 4 9 3 68 66 67 72 65 69 24 P/N 1010699 Rev.
A.J. Antunes & Co. MIRACLE STEAMER REPLACEMENT PARTS (continued) Item Water Pressure Regulator Kit - Part No. 7000235 To Steamer 5 To Steamer 2 3 1 1 2 3 0503615 2030125 2040150 4 5 6 7 8 9 10 2040151 2080105 2080118 2170113 2170114 2190113 2110160 Description Bracket, Manifold Tubing, 1/4" I.D.
A.J. Antunes & Co. MIRACLE STEAMER WIRING DIAGRAMS MS-150/155/250/255 POWER CORD BLK/BRN BRN BLK/ WHT/BLU GRN GRN-YEL NOTE: ALL WIRES TO BE 14 GA. AWM–105 C UNLESS OTHERWISE SPECIFIED. #18 GA. AWM–105 C l22 GA. AWM–105 C MOMENTARY SWITCH TERMINAL BLOCK GRN BLU THERMOCOUPLE BLU GRD HI-LIMIT THERMOSTAT HEATER S.S.
LIMITED WARRANTY Equipment manufactured by Roundup Food Equipment Division of A.J. Antunes & Co. has been constructed of the finest materials available and manufactured to high quality standards. These units are warranted to be free from mechanical and electrical defects for a period of one year from date of purchase or 18 months from shipment from factory, whichever occurs first, under normal use and service, and when installed in accordance with manufacturer’s recommendations.
