User Manual

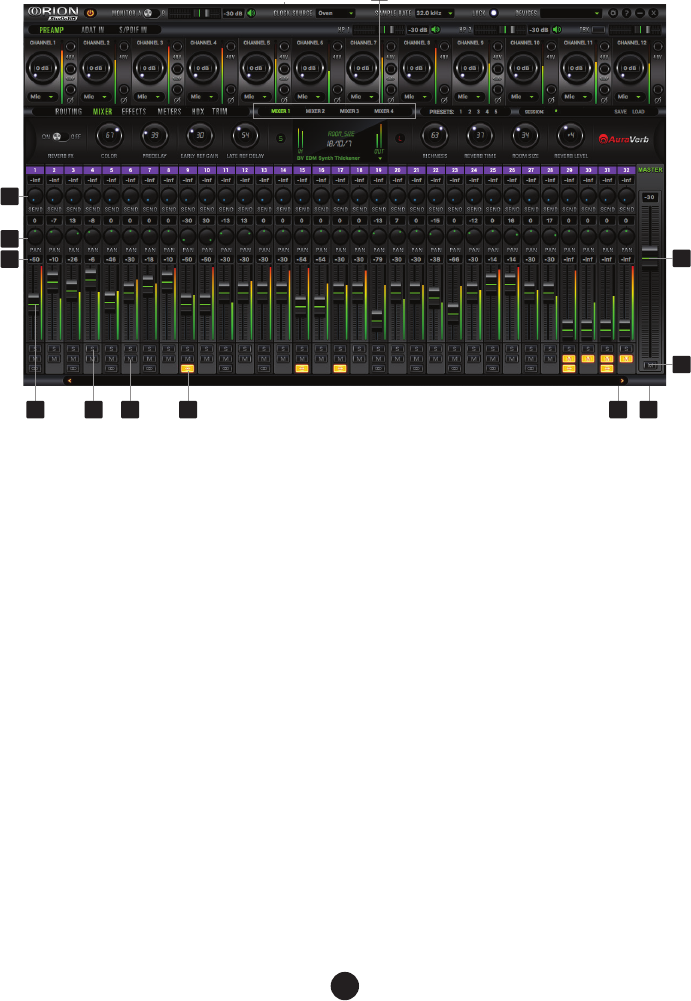

7.2. Mixer Tab

1. Fader (double-click to reset to zero)

2. Fader Level indication

3. Solo

4. Mute

5. Stereo Link

6. Pan

7. Send

8. Master Mix Fader

9. Mute Master

10. Mixer 1-4 Show/Hide

Orion Studio HD comes with four software low latency mixers which provide near zero latency mix

and monitoring that can be distributed using the control panel. The new Orion Studio allows a low

latency mix to be distributed to any output.

For example, you can drag all of the twenty-four USB play channels to Mixer 1 channels and then

drag and drop MIX 1 L/R to LINE OUT 1&2 providing a stereo bus mix to LINE OUT channels 1

and 2.

The low latency mixers provide the basic functions of a real mixer such as: Solo, Mute, Pan, Link

channels, Volume Level controlled by faders and a Master Fader, so you can easily make a stereo

mix, plus an Auxiliary send in order to use the FPGA eects.
