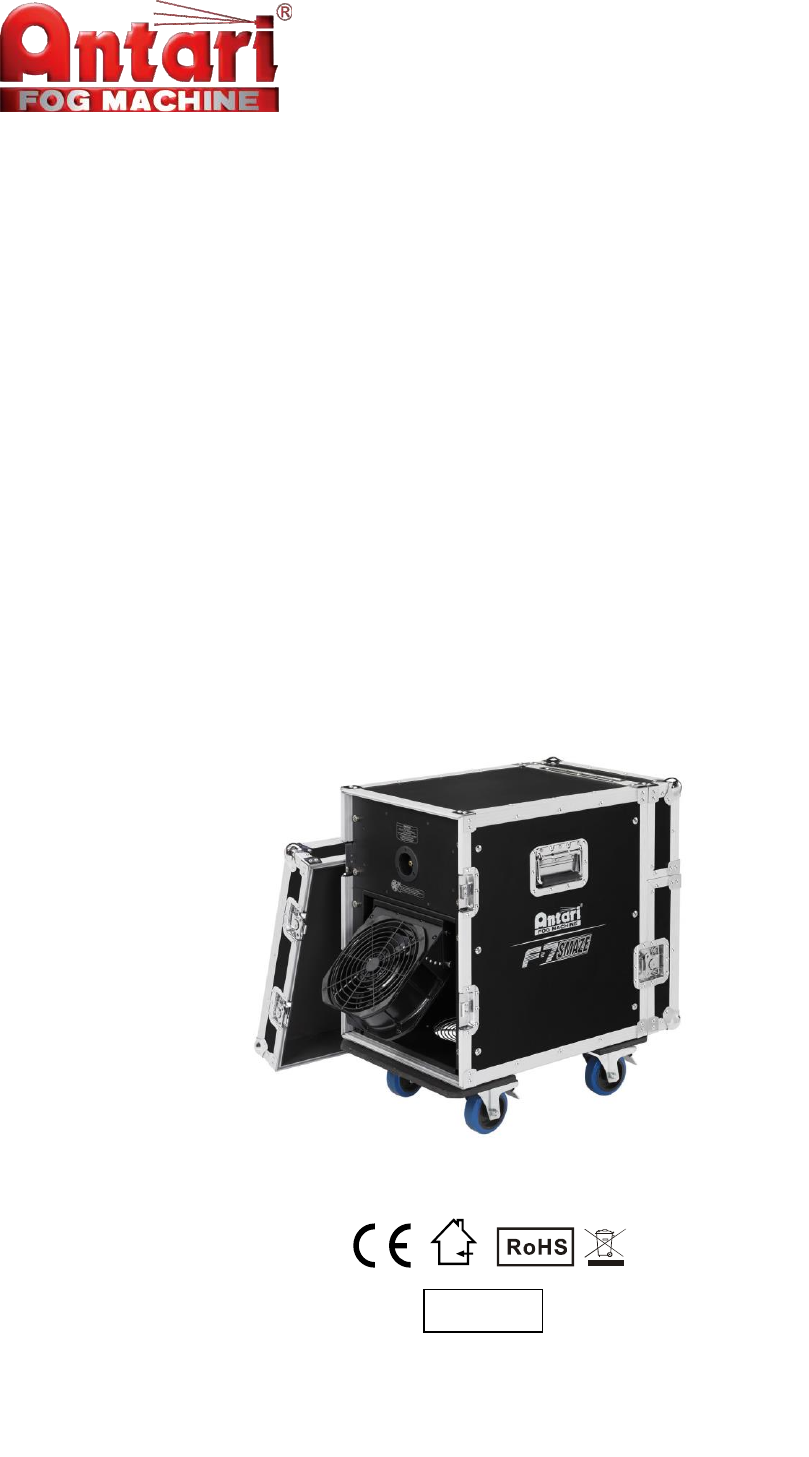

F-7 SMAZE User Manual English © 2014 Antari Lighting and Effects Ltd.
User Manual - English Safety Information Please read the following safety information carefully before operating the machine. This information includes important safeguards about installation, usage, and maintenance. Pay attention to all warning labels and instructions in this manual and printed on the machine. If you have questions about how to operate the machine safely, please contact your local Antari dealer for help. ․ Keep this device dry.
․ Only use Antari fluid. Other fluid may lead to heater clog and malfunction. ․ If the machine fails to work, unplug the machine and stop operation immediately. Contact your local Antari dealer for advise. ․ Before transporting the machine, make sure the fluid tank is completely drained. ․ Fog fluid may present health risks if swallowed. Do not drink fog fluid. Store it securely. In case of eye contact or if fluid is swallowed, immediately look for medical advice.
Product Overview Control Options：DMX、W-DMX XLR 3-Pin DMX Connector XLR 5-Pin DMX Connector Neutrik PowerCon Blue LCD screen, Timer mode, Volume mode Tank Capacity：5 liters Setting Up Step 1: Place the machine on a flat surface and in a suitable large area with at least 50 cm open space around the machine. Step 2: Fill the fluid tank with Antari approved fluid. Step 3: Connect the machine to suitable rated power supply.
Step 6: To turn off the machine, hold the STOP button for 3 seconds; the machine will automatically run a self-cleaning process and shut down after the self-cleaning process is done. Operation Control Panel Operation The machine can be operated with the onboard digital control interface. Antari F-7 Ready to Fog Button Function [MENU] Scroll through setting menu [UP]/[TIMER] Up/Activate Timer fucntion [DOWN]/[VOLUME] Down/Activate Volume function [STOP] Deactivate Timer/Volume function.
Set interval time at Timer mode from 1 to 300 seconds Timer Interval XXX Sec Set duration time at Timer mode from 1 to 120 seconds Timer Duration XXX Sec Set output volume at Timer mode from 20 to 100 % Timer Output XXX % Set output volume at Volume mode from 20 to 100 % Volume Output XXX % or continuous output Set fan speed from 20 to 100% or to turn off Fan Fan Speed XXX % Set DMX/W-DMX address from 1 to 510 DMX-512 Address: XXX Turn On/Off W-DMX function W-DMX Power XX Unlink from a W-DMX t
DMX Connector Pin Assignment The machine provides a 3- or 5-pin XLR connector for DMX connection. The diagram below indicates pin assignment information. Pin Function 1 Ground 2 Data- 3 Data+ DMX Operation Making the DMX Connection – Connect the machine to a DMX controller or to one of the machines in the DMX chain. The machine uses a 3-pin or 5-pin XLR connector for DMX connection, the connector is located on the front of the machine. Address Setup – Use control menu to set DMX address.
DMX Channel Function Channel Value Function 0-127 Faze Mode 128-255 Fog Mode 0-5 Output Off 6-255 Output 21-100% 0-5 Fan speed at 20% 6-255 Fan speed 21-100% 1 2 3 Status of W-DMX connection Symbol on the Liquid Crystal Display Status of W-DMX connection ● Transmitter assigned, DMX signal received ◎ Transmitter assigned, No DMX signal ⊙ Transmitter link lost or linking to transmitter ○ Transmitter not assigned Service and Maintenance ․ Do not allow the machine and fluid to becom
Technical Specifications Input voltage 110-120V 60Hz or 220-240V 50Hz Power Consumption Heater: 1500 W Fan: 72W at 120V 60Hz 74W at 230V 50Hz Warm-up time 6 minutes (approx.
C08F00700 12
