Antaira Industrial Ethernet Switches

LNX-1002G-SFP Series User Manual V1.2

3

2. Hardware Description

2.1 Physical Dimensions

Figure 2.1, below, shows the physical dimensions of Antaira’s LNX-1002G-SFP series: 10-port

industrial gigabit unmanaged Ethernet switch with 8*10/100/1000Tx + 2*100/1000SFP slots.

(W x D x H) is 46mm x 99mm x 142mm

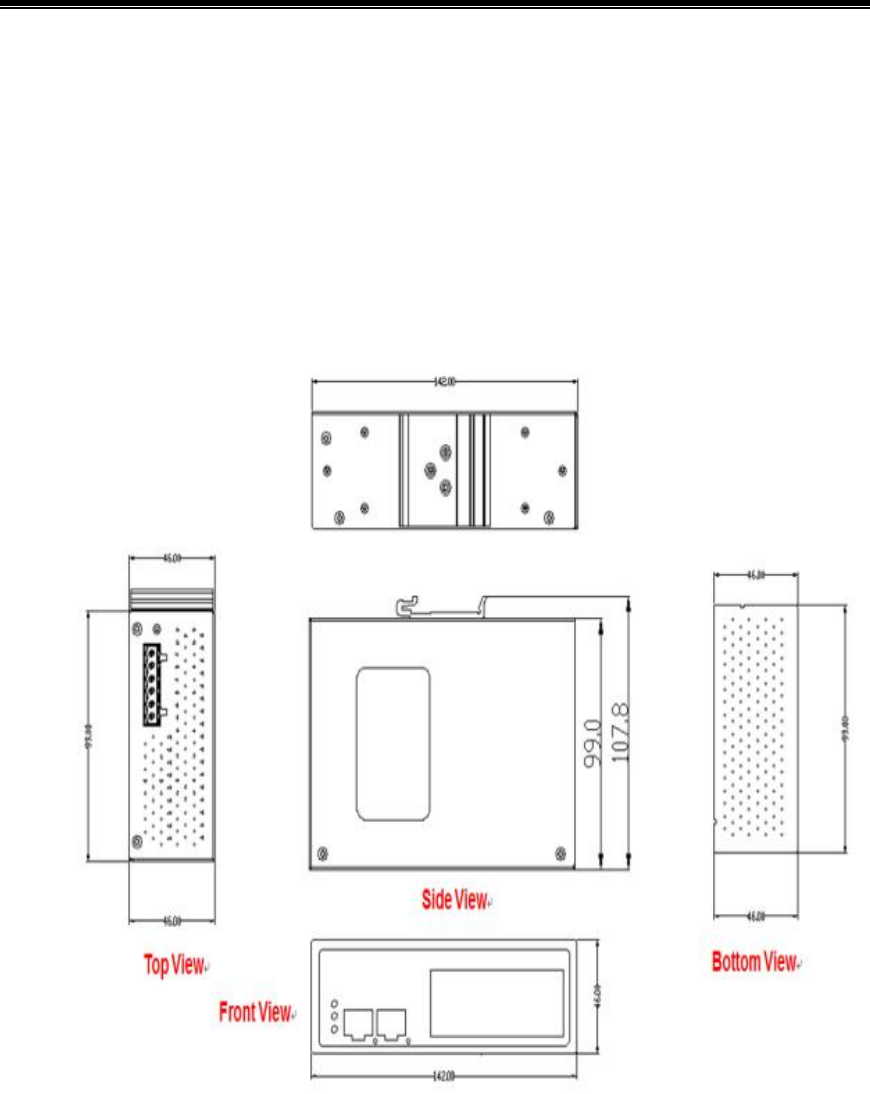

Figure 2.1

LNX-1002G-SFP Series Physical Dimensions
