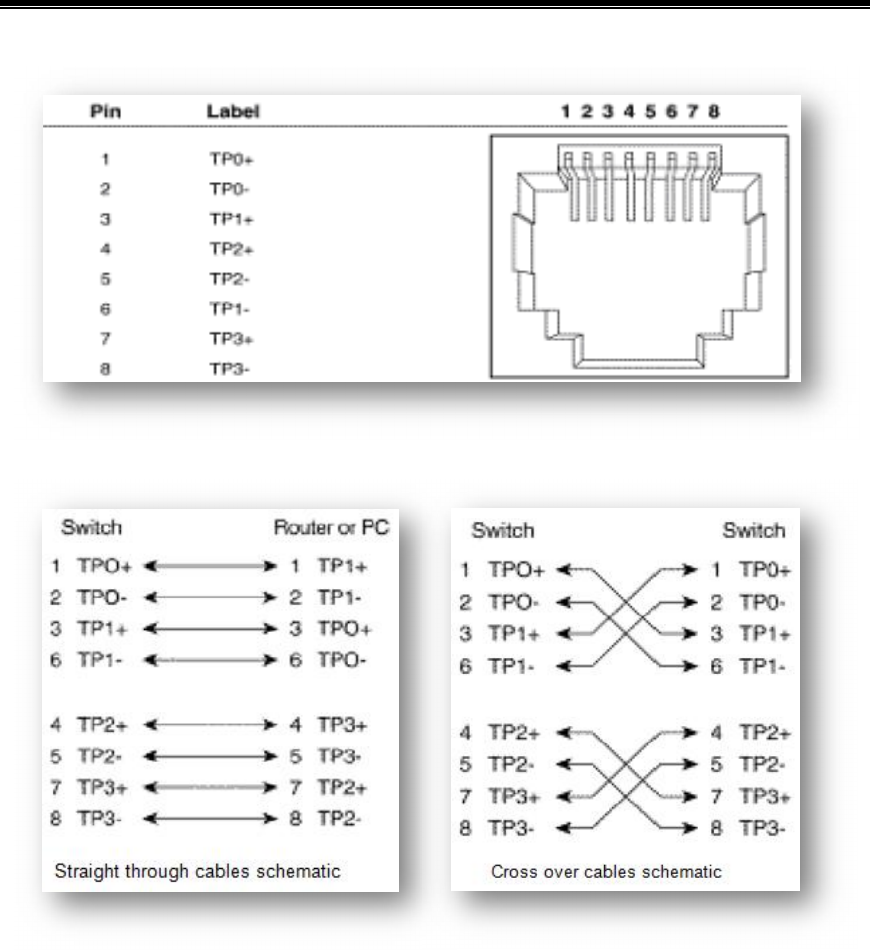

The following figures show the 10,100, and 1000 Ethernet RJ-45 pin outs.
Figure 2.7 Figure 2.8
Straight-Through Cable Schematic Crossover Cable Schematic
Figure 2.6
RJ45 Ethernet Port Pin Outs
