Antaira Technologies - Industrial Ethernet Switches
LNX-1002C-SFP Series User Manual V1.2
4

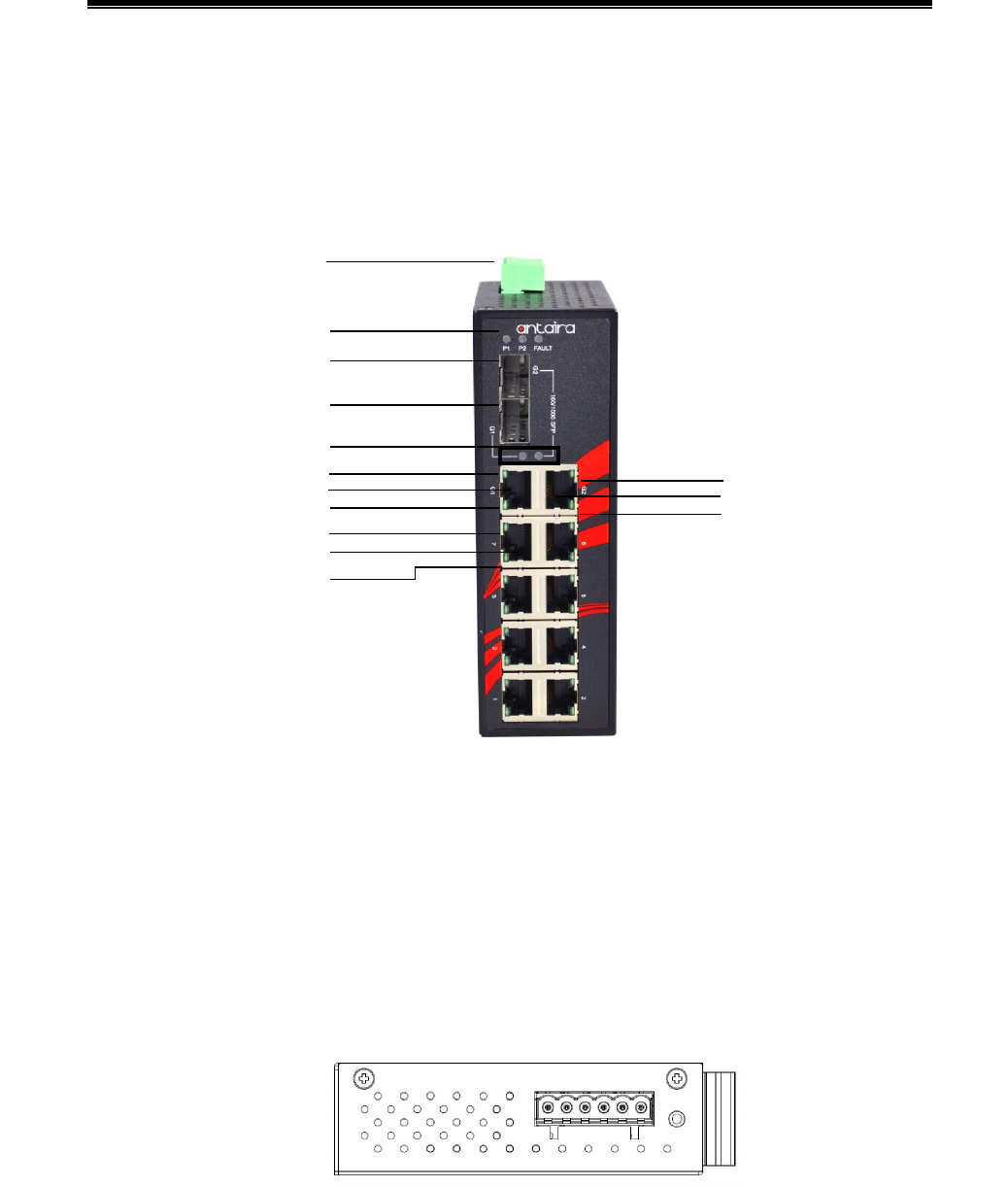

2.2 Front Panel
The front panel of the LNX-1002C-SFP series: 10-port industrial unmanaged switch with
8*10/100Tx and 2* Gigabit combo ports (2*10/100/1000Tx RJ45 and 2*100/1000 SFP slots) is
shown below in Figure 2.2.
2.3 Top View
Figure 2.3, below, shows the top panel of the LNX-1002C-SFP switch series that is equipped
with one 6-pin removal terminal block connector for dual DC power inputs (12~48VDC).
Figure 2.2 - Front Panel of the LNX-1002C-SFP Series
Figure 2.3 - Top Panel View of LNX-1002C-SFP Series
6-Pin Removal Terminal Block
(Power Input)
LED for PWR1, PWR2, and Fault
Gigabit Combo Port G2 – 100/1000 SFP
Gigabit Combo Port G1 – 100/1000 SFP
LED for G1 & G2 SFP Fiber Ports
LED for Ethernet Port Status
Gigabit Combo Port G1 – 10/100/1000Tx
LED for Ethernet Port Status
LED for Ethernet Port Status
LAN Port (1~8) 10/100Tx
LED for Ethernet Port Status
LED for Ethernet Port Status
Gigabit Combo Port G2 – 10/100/1000Tx
LED for Ethernet Port Status
