Antaira Technologies - Industrial Ethernet Switches

LNX-1002C-SFP Series User Manual V1.2

3

2. Hardware Description

2.1 Physical Dimensions

Figure 2.1, below, shows the physical dimensions of Antaira Technologies’ LNX-1002C-SFP

series: 10-port industrial unmanaged switch with 8*10/100Tx and 2* Gigabit combo ports

(2*10/100/1000Tx RJ45 and 2*100/1000 SFP slots).

(W x D x H) is 46mm x 99mm x 142mm

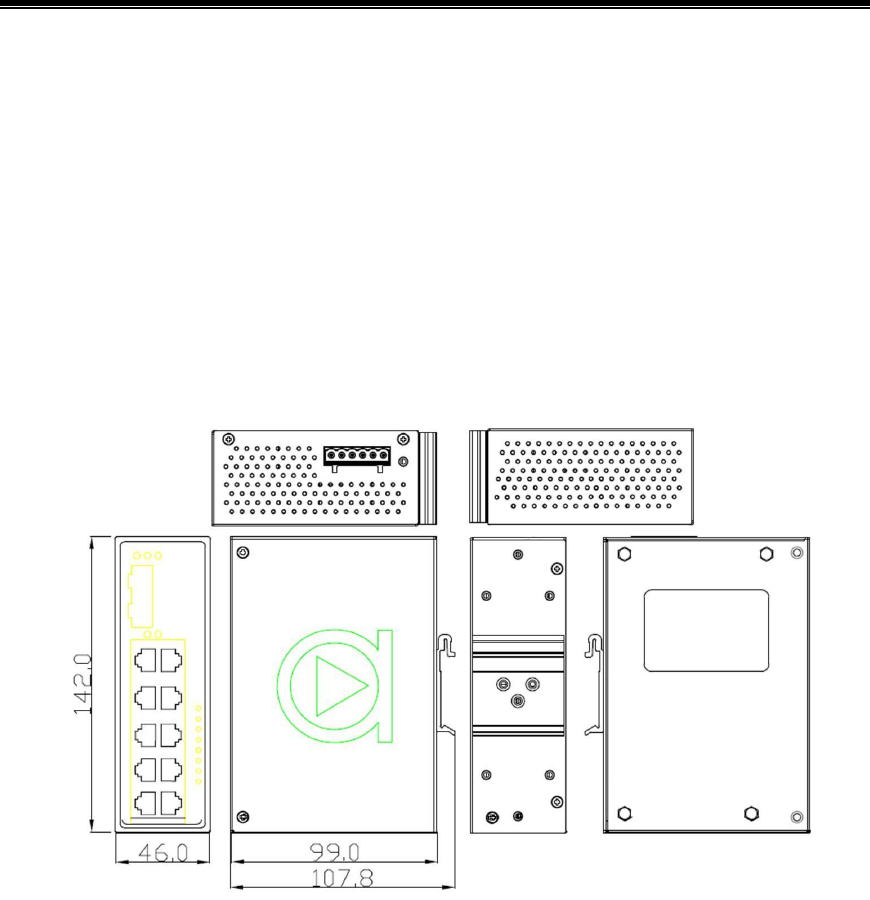

Figure 2.1

LNX-1002C-SFP Series Physical Dimensions
