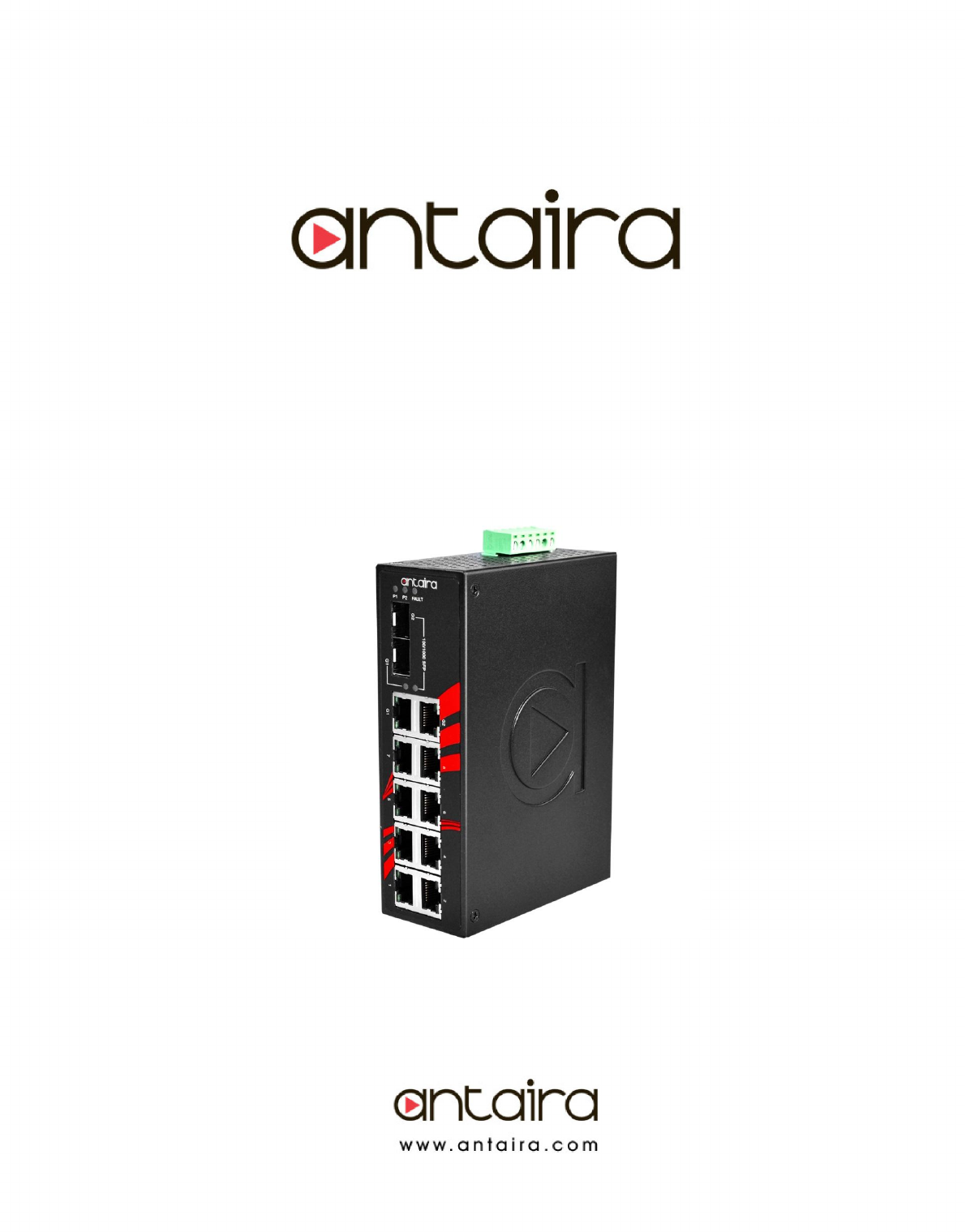

Antaira Technologies - Industrial Ethernet Switches LNX-1002C-SFP series User Manual V1.2 LNX-1002C-SFP Series 10-Port Industrial Unmanaged Ethernet Switches, with 8*10/100Tx and 2* Gigabit Combo Ports (2*10/100/1000Tx RJ45, and 2*100/1000 SFP Slots) User Manual Version 1.
Antaira Technologies - Industrial Ethernet Switches LNX-1002C-SFP Series User Manual V1.2 © Copyright 2018 Antaira Technologies, LLC All Rights Reserved This document contains information, which is protected by copyright. Reproduction, adaptation or translation without prior permission is prohibited, except as allowed under the copyright laws. Trademark Information Antaira is a registered trademark of Antaira Technologies, LLC, Microsoft Windows and the Windows logo are the trademarks of Microsoft Corp.
Antaira Technologies - Industrial Ethernet Switches LNX-1002C-SFP Series User Manual V1.2 FCC Notice This equipment has been tested and found to comply with the limits for a Class-A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy.
Antaira Technologies - Industrial Ethernet Switches LNX-1002C-SFP Series User Manual V1.2 Table of Contents 1. Overview....................................................................... 1 1.1 Key Features ...................................................... 1 1.2 Package Contents .............................................. 2 1.3 Safety Precaution ............................................... 2 2. Hardware Description ................................................. 3 2.1 Physical Dimensions ..
Antaira Technologies - Industrial Ethernet Switches LNX-1002C-SFP series User Manual V1.2 1. Overview Antaira Technologies’ LNX-1002C-SFP industrial gigabit unmanaged Ethernet switch series is IP30 rated and DIN-Rail mountable with 8*10/100Tx and 2*GigE combo ports (2*10/100/1000Tx RJ45 and 2*100/100 SFP slots for fiber). This series is ideal for applications that demand high bandwidth and long distance communication.
Antaira Technologies - Industrial Ethernet Switches LNX-1002C-SFP Series User Manual V1.2 1.2 Package Contents 1 - LNX-1002C-SFP (T): 10-port industrial unmanaged Ethernet switch, with 8*10/100Tx, 2* Gigabit combo ports (2*10/100/1000Tx RJ45, and 2* 100/1000 SFP slots) 1 - User manual 1 - Product CD 2 - Wall mounting brackets and screws 1 - DC cable –18 AWG & DC jack 5.5x2.1mm 1.
Antaira Technologies - Industrial Ethernet Switches LNX-1002C-SFP Series User Manual V1.2 2. Hardware Description 2.1 Physical Dimensions Figure 2.1, below, shows the physical dimensions of Antaira Technologies’ LNX-1002C-SFP series: 10-port industrial unmanaged switch with 8*10/100Tx and 2* Gigabit combo ports (2*10/100/1000Tx RJ45 and 2*100/1000 SFP slots). (W x D x H) is 46mm x 99mm x 142mm Figure 2.
Antaira Technologies - Industrial Ethernet Switches LNX-1002C-SFP Series User Manual V1.2 2.2 Front Panel The front panel of the LNX-1002C-SFP series: 10-port industrial unmanaged switch with 8*10/100Tx and 2* Gigabit combo ports (2*10/100/1000Tx RJ45 and 2*100/1000 SFP slots) is shown below in Figure 2.2.
Antaira Technologies - Industrial Ethernet Switches LNX-1002C-SFP Series User Manual V1.2 2.4 LED Indicators There are LED light indicators located on the front panel of the industrial Ethernet switch that display the power status and network status. Each LED indicator has a different color and has its own specific meaning, see below in Table 2.1.
Antaira Technologies - Industrial Ethernet Switches LNX-1002C-SFP Series User Manual V1.2 2.5 Ethernet Ports RJ-45 Ports RJ-45 Ports (Auto MDI/MDIX): The RJ-45 ports (LAN 1~8) are auto-sensing for 10Base-T or 100Base-Tx device connections. The Gigabit combo RJ-45 ports (LAN G1~G2) are auto-sensing for 10Base-T, 100Base-Tx, and 1000Base-T device connections. Auto MDI/MDIX means that the switch can connect to another switch or workstation without changing the straight-through or crossover cabling.
Antaira Technologies - Industrial Ethernet Switches LNX-1002C-SFP Series User Manual V1.2 The following figures show the cabling schematics for straight-through and crossover cables. Figure 2.4 - Straight-Through Cables Schematic Figure 2.5 - Crossover Cables Schematic The following figures show the 10 and 100 Ethernet RJ-45 pin outs. Figure 2.6 - RJ45 Ethernet Port Pin Outs Figure 2.7 - Straight-Through Cables Schematic Figure 2.
Antaira Technologies - Industrial Ethernet Switches LNX-1002C-SFP Series User Manual V1.2 2.6 Cabling Use the four twisted-pair, category 5e, or the above cabling for the RJ-45 port connections. The cable between the switch and the link partner (switch, hub, workstation, etc.) must be less than 100 meters (328 ft.) in length. 2.6.
Antaira Technologies - Industrial Ethernet Switches LNX-1002C-SFP Series User Manual V1.2 The small form-factor pluggable (SFP) is a compact optical transceiver used in optical communications for both telecommunication and data communication applications. To connect the transceiver and LC cable, please follow the steps below: First, insert the SFP transceiver module into the SFP slot as shown below in Figure 2.9. Notice that the triangle mark is at the bottom of the SFP slot. Figure 2.
Antaira Technologies - Industrial Ethernet Switches LNX-1002C-SFP Series User Manual V1.2 To remove the LC connector from the transceiver, please follow the steps shown below: 1. Press the upper side of the LC connector from the transceiver and pull it out to release as shown below in Figure 2.12. Figure 2.12 Remove LC Connector 2. Push down the metal clasp and pull the transceiver out by the plastic part as shown below in Figure 2.13. Figure 2.
Antaira Technologies - Industrial Ethernet Switches LNX-1002C-SFP Series User Manual V1.2 2.7 Wiring the Power Inputs Please follow the steps below to insert the power wire. 1. Insert the positive and negative wires into the PWR1 (V1+, V1-) and PWR2 (V2+, V2-) contacts on the terminal block connector as shown below in Figure 2.14. Figure 2.14 Power Terminal Block 2. Tighten the wire-clamp screws to prevent the wires from loosening, as shown below in Figure 2.15. Figure 2.
Antaira Technologies - Industrial Ethernet Switches LNX-1002C-SFP Series User Manual V1.2 2.8 Wiring the Fault Alarm Contact The fault alarm contact is in the middle of the terminal block connector as the picture shows below in Figure 2.16. By inserting the wires, it will detect the fault status including power failure or port link failure (managed industrial switch only) and form a normal open circuit. An example is shown below in Figure 2.16. Figure 2.
Antaira Technologies - Industrial Ethernet Switches LNX-1002C-SFP Series User Manual V1.2 3. Mounting Installation 3.1 DIN-Rail Mounting The DIN-Rail is pre-installed on the industrial Ethernet switch from the factory. If the DIN-Rail is not on the industrial Ethernet switch, please refer to Figure 3.1 to learn how to install the DIN-Rail on the switch. Figure 3.
Antaira Technologies - Industrial Ethernet Switches LNX-1002C-SFP Series User Manual V1.2 Follow the steps below to learn how to hang the industrial Ethernet switch. 1. Use the screws to install the DIN-Rail bracket on the rear side of the industrial Ethernet switch. 2. To remove the DIN-Rail bracket, do the opposite from step 1. 3. After the DIN-Rail bracket is installed on the rear side of the switch, insert the top of the DINRail on to the track as shown below in Figure 3.2. Figure 3.
Antaira Technologies - Industrial Ethernet Switches LNX-1002C-SFP Series User Manual V1.2 3.2 Wall Mounting Follow the steps below to mount the industrial Ethernet switch using the wall mounting bracket as shown below in Figure 3.4. 1. Remove the DIN-Rail bracket from the industrial Ethernet switch by loosening the screws. 2. Place the wall mounting brackets on the top and bottom of the industrial Ethernet switch. 3. Use the screws to screw the wall mounting bracket on the industrial Ethernet switch. 4.
Antaira Technologies - Industrial Ethernet Switches LNX-1002C-SFP Series User Manual V1.2 4. Hardware Installation 4.1 Installation Steps This section will explain how to install Antaira Technologies’ LNX-1002C-SFP series: 10-port industrial unmanaged switch with 8*10/100Tx and 2* Gigabit combo ports (2*10/100/1000Tx RJ45 and 2*100/1000 SFP slots). Installation Steps 1. Unpack the industrial Ethernet switch from the original packing box. 2.
Antaira Technologies - Industrial Ethernet Switches LNX-1002C-SFP Series User Manual V1.2 5. Network Application This segment provides an example of an industrial Ethernet switch application (Figure 5.1). Figure 5.
Antaira Technologies - Industrial Ethernet Switches LNX-1002C-SFP Series User Manual V1.2 6. Trouble Shooting Verify that the user has the right power cord or adapter. Never use a power supply or adapter with a non-compliant DC output voltage or it will burn the equipment. Select the proper UTP or STP cable in order to construct the network. Use an unshielded twisted-pair (UTP) or shielded twisted-pair (STP) cable for RJ-45 connections: 100Ω category 5e for 10M/100Mbps.
Antaira Technologies - Industrial Ethernet Switches LNX-1002C-SFP Series User Manual V1.2 7. Technical Specifications Table 7.1 has the technical specifications for Antaira Technologies’ LNX-1002C-SFP series: 10port industrial unmanaged switch with 8*10/100Tx and 2* Gigabit combo ports (2*10/100/1000Tx RJ45 and 2*100/1000 SFP slots). IEEE 802.3 10BaseT Ethernet Standard IEEE 802.3u 100BaseTX Fast Ethernet IEEE 802.3ab 1000BaseT IEEE 802.
Antaira Technologies - Industrial Ethernet Switches LNX-1002C-SFP Series User Manual V1.
