Antaira Industrial Ethernet Switches

LNX-0501G-SFP Series User Manual V1.2

3

2. Hardware Description

2.1 Physical Dimensions

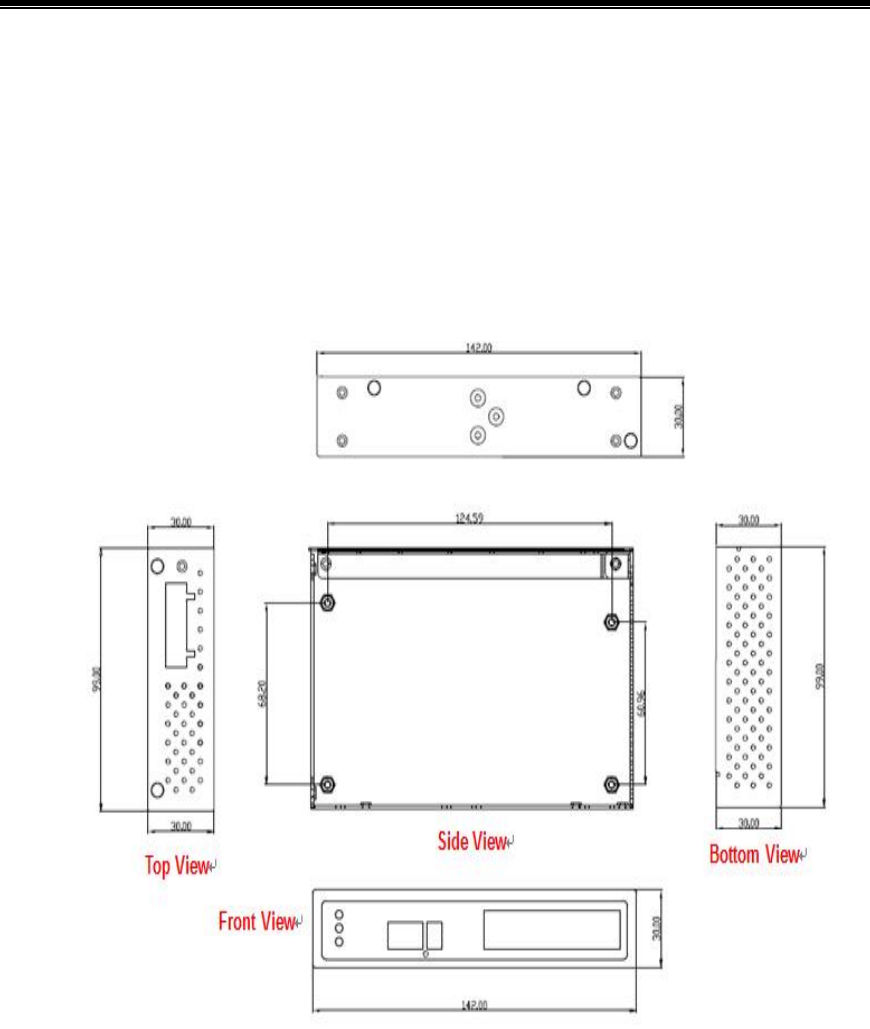

Figure 2.1, below, shows the physical dimensions of Antaira’s LNX-0501G-SFP series:

5

-port

industrial gigabit unmanaged Ethernet switch with 4*

10/100/1000Tx and 1*100/1000SFP slot.

(W x D x H) is 30mm x 99mm x 142mm

Figure 2.1

LNX-0501G-SFP Series Physical Dimensions
