5. Network Application
This segment provides an example of an industrial
Ethernet
switch application (Figure 5.1).

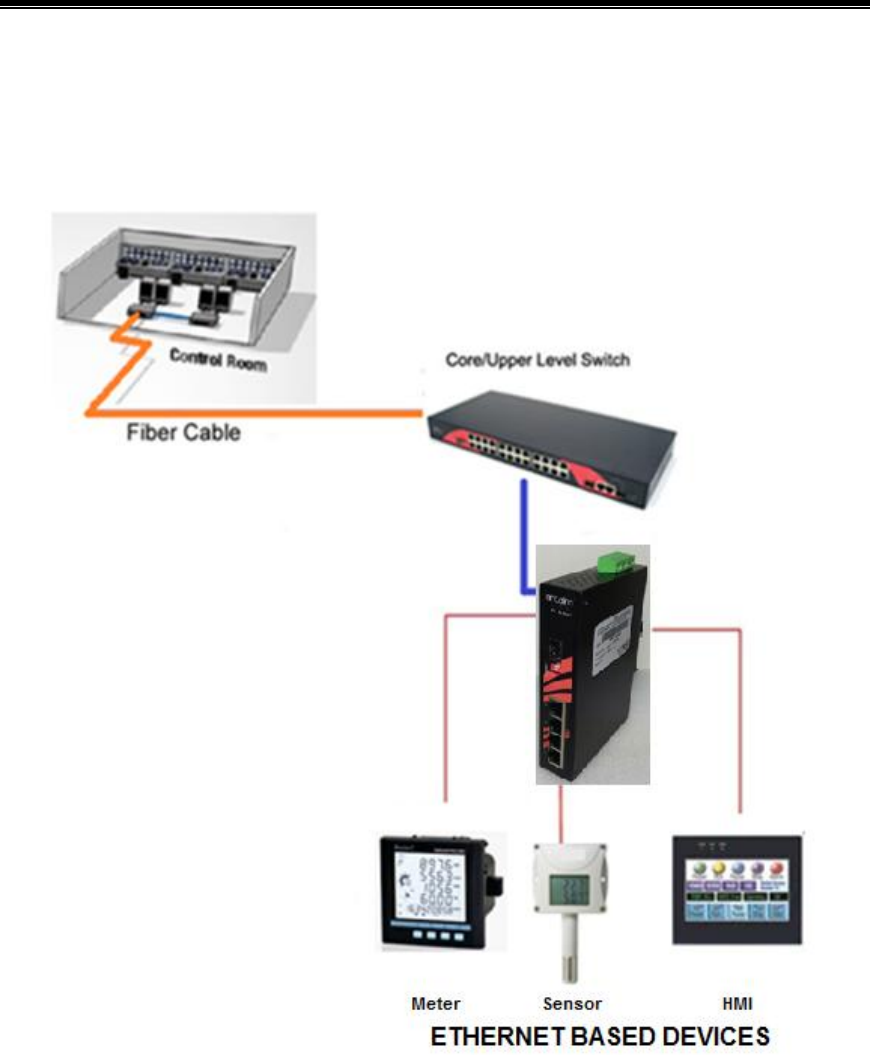

Figure 5.1
Industrial Ethernet Switch Application Reference
