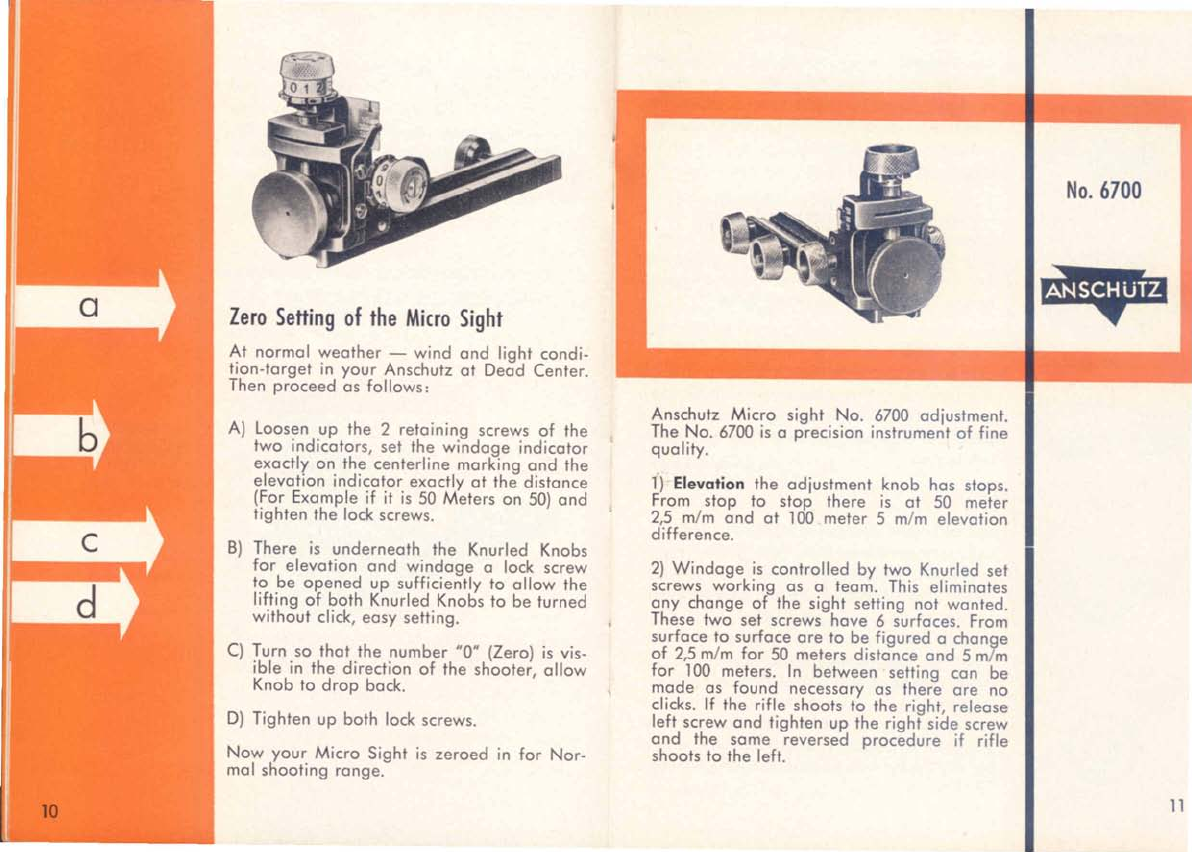

Zero Setting of the Micro Sight
At normal weather -
wind and light condi-
tion-target in your Anschutz at Dead Center.
Then proceed as follows:
A) Loosen up the 2 retaining screws of the
two indicators, set the windage indicator
exactly on the centerline marking and the
elevation indicator exactly at the distance
(For Example if it is 50 Meters on 50) and
tighten the lock screws.
B) There is underneath the Knurled Knobs
for elevation and windage a lock screw
to be opened up sufficiently to allow the
lifting of both Knurled Knobs to be turned
without click, easy setting.
C) Turn so that the number "0. (Zero) is vis-
ible in the direction of the shooter, allow
Knob to drop back.
D) Tighten up both lock screws.
Now your Micro Sight is zeroed in for Nor-
mal shooting range.
Anschutz Micro sight No. 6700 adjustment.
The No. 6700 is a precision instrument of fine
quality.
1) Elevation the adjustment knob has stops.
From stop to stop there is at 50 meter
2,5 m/m and at 100 meter 5 m/m elevation
difference.
2) Windage is controlled by two Knurled set
screws working as a team. This eliminates
any change of the sight setting not wanted.
These two set screws have 6 surfaces. From
surface to surface are to be figured a change
of 2,5 m/m for 50 meters distance and 5 m/m
for 100 meters. In between setting can be
made as found necessary as there are no
clicks. If the rifle shoots to the right, release
left screw and tighten up the right side screw
and the same reversed procedure if rifle
shoots to the left.
