The "nschutz

Barre

The Ans~hutz

Butts~ck"

L',

The barrel steel used by Anschutz is of the best

grade especially selected for Rifle barrels. Such are

of maximum weight which allow a balance of the

rifle which is very much in its favor and give such

fine accuracy never thought possible up to now.

Each one has 8 Lands of the most exact sculpture and

all standard .22 cartridges of any reliable make will

give good results. Many Gun editors have men-

tioned this in their reports to the Shooter.

Below shows actual size 50.shot

group fired at 50 meters (55

yards) at the International Smoll-

Bore Target. Such groups are

routine for Anschutz.Model 54

~ .

(

"CC'"

--'

,.)

C r -

\ ~".p

Only well seasoned walnut will go into a stock for

your Anschutz Rifle. Stock length, Shape, Cheekrest

and the anatomic pistol grip are the result of

many years of tests by prominent Shooters. Particu-

lar attention was given to different size of men

as well as various shooting positions. All stocks ar~

rubbed .dow.n and oiled but not polished. A polished

stock will slide too easy and a scratch will show up

at once. A few drops of oil rubbed in from time to

time is always a good idea.

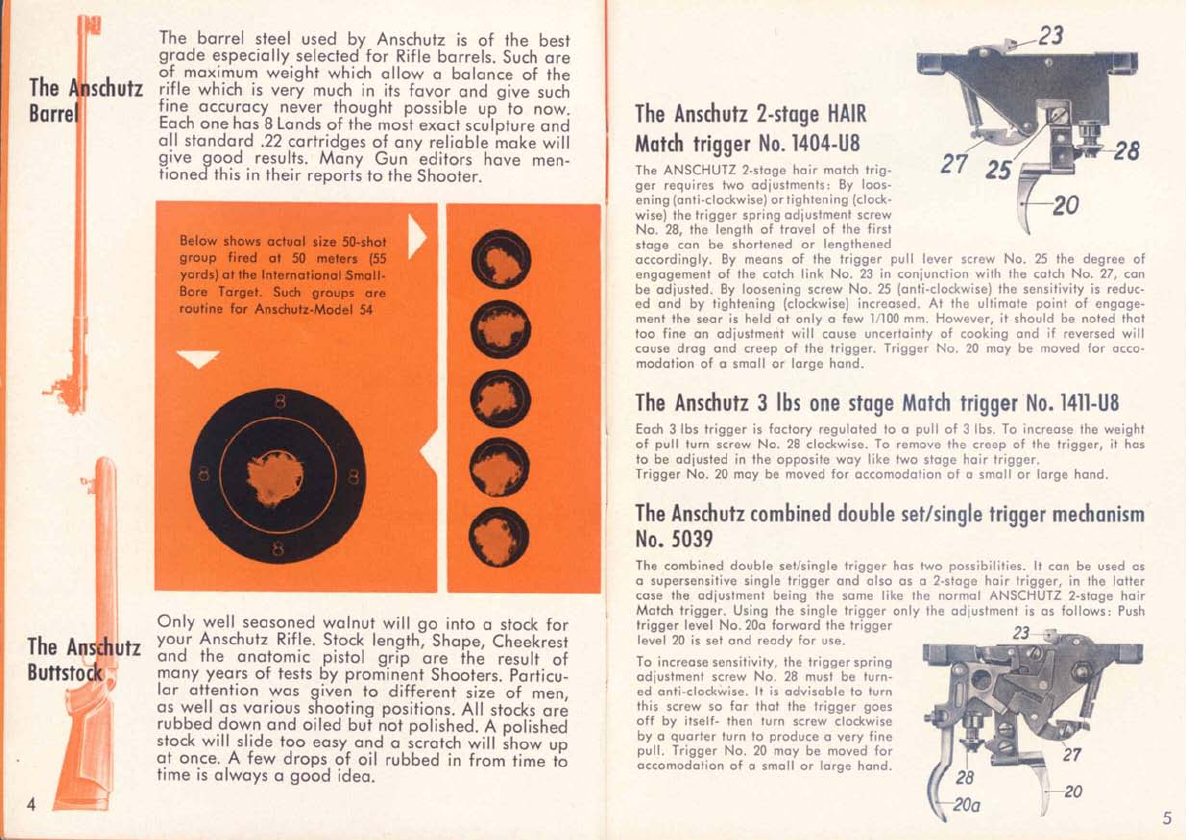

The Anschutz 2-stage HAIR

Match trigger No. 1404-U8

The ANSCHUTZ 2.stoge hair match trig.

ger requires two adjustments: By laos.

ening (onti.clockwise) or tightening (clock.

wise) the trigger spring adjustment screw

No. 28, the length of travel of the first

stage can be shortened or lengthened

accordingly. By means of the trigger pull lever screw No. 25 the degree of

engagement of the catch link No. 23 in conjunction with the catch No. 27, can

be adjusted. By loosening screw No. 25 (anti.clockwise) the sensitivity is reduc-

ed and by tightening (clockwise) increased. At the ultimate point of engage-

ment the sear is held at only a few 11100mm. However, it should be noted that

too fine on adjustment will couse uncertainty of cooking and if reversed will

couse drag and creep of the trigger. Trigger No. 20 may be moved for occo-

modotion of a small or large

hand.

The Anschutz 3 Ibs one stage Match trigger No. 1411-U8

Each 3 Ibs trigger is factory regulated to a pull of 3 Ibs. To increase the weight

of pull turn screw No. 28 clockwise. To remove the creep of the trigger, it has

to be adjusted in the opposite way like two stage hair trigger.

Trigger No. 20 may be moved for occomodotion of a small or large hand.

The Anschutz combined double set/single trigger mechanism

No. 5039

The combined double set/single trigger has two possibilities. It can be used as

a supersensitive single trigger and also as a 2-stoge hair trigger, in the latter

case the adjustment being the some like the normal ANSCHUTZ 2-stoge hair

Match trigger. Using the single trigger only the adjustment is as follows: Push

trigger level No. 200 forward the trigger

level 20 is set and ready for use.

To increase sensitivity, the trigger spring

adjustment screw No. 28 must be turn-

ed anti-clockwise. It is advisable to turn

this screw so for that the trigger goes

off by itself- then turn screw clockwise

by a quarter turn to produce a very fine

pull. Trigger No. 20 may be moved for

occomadation of a small or large hand.

-20
