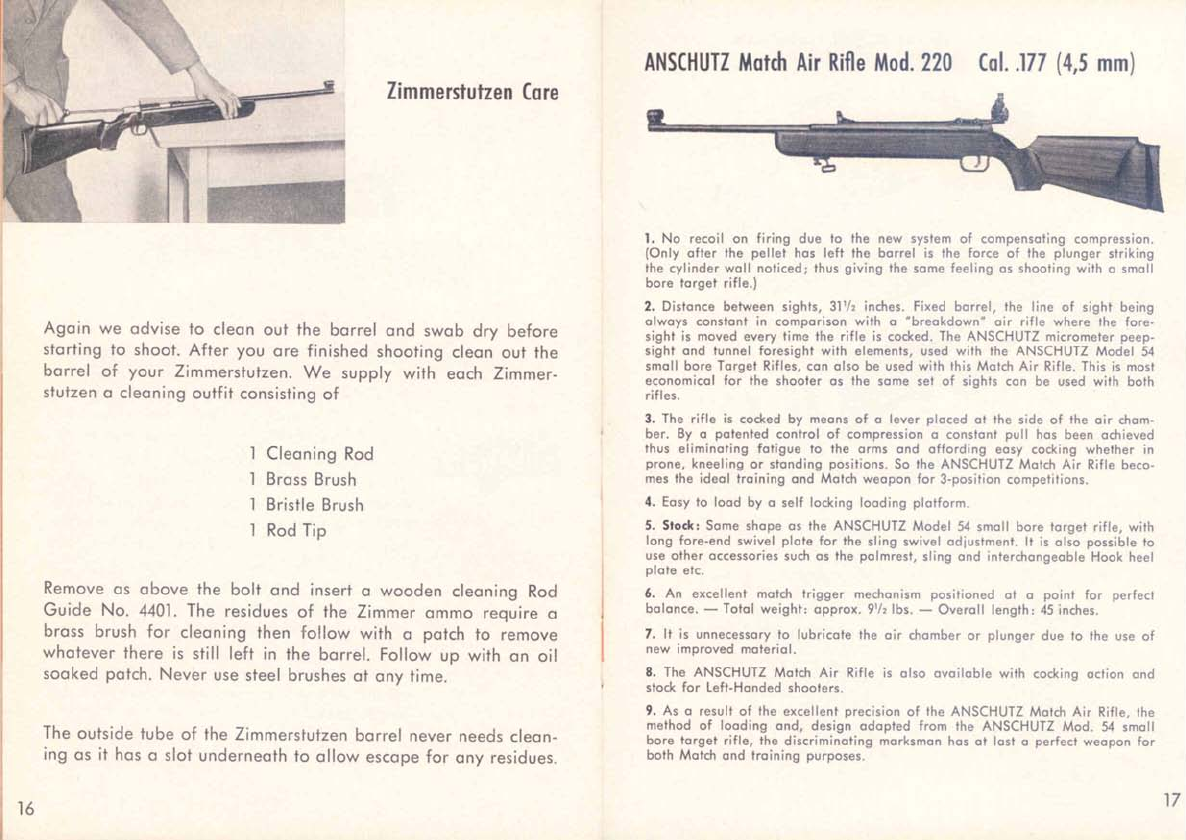

Zimmerstutzen Care
r','
...~
.
,'
.
/\
.,_"r,,\!,:-.
Again we advise to clean out the barrel and swab dry before
starting to shoot. After you are finished shooting clean out the
barrel of your Zimmerstutzen. We supply with each Zimmer-
stutzen a cleaning outfit consisting of
1 Cleaning Rod
1 Brass Brush
1 Bristle Brush
1 Rod Tip
Remove as above the bolt and insert a wooden cleaning Rod
Guide No. 4401. The residues of the Zimmer ammo require a
brass brush for cleaning then follow with a patch to remove
whatever there is still left in the barrel. Follow up with an oil
soaked patch. Never use steel brushes at any time.
The outside tube of the Zimmerstutzen barrel never needs clean-
ing as it has a slot underneath to allow escape for any residues.
16
ANSCHUTZ Match Air Rifle Mod, 220
Cal. .177 (4,5 mm)
1I
~
1. No recoil on firing due to the new system of compensating compression.
(Only after the pellet has left the barrel is the force of the plunger striking
the cylinder wall noticed; thus giving the some feeling as shooting with a small
bore target rifle.)
2. Distance between sights, 31'/, inches. Fixed barrel, the line of sight being
always constant in comparison with a "breakdown" air rifle where the fore-
sight is moved every time the rifle is cocked. The ANSCHUTZ micrometer peep.
sight and tunnel foresight with elements, used with the ANSCHUTZ Model 54
small bore Target Rifles, can also be used with this Match Air Rifle. This is most
economical for the shooter as the some set of sights can be used with both
rifles.
3. The rifle is cocked by means of a lever placed at the side of the air cham-
ber. By a patented control of compression a constant pull has been achieved
thus eliminating fatigue to the arms and affording easy cocking whether in
prone, kneeling or standing positions. So the ANSCHUTZ Match Air Rifle beco-
mes the ideal training and Match weapon for 3-position competitions.
4. Easy to load by a self locking loading platform.
S. Stock: Same shope as the ANSCHUTZ Model 54 small bore target rifle, with
long fore-end swivel plate for the sling swivel adjustment. It is also possible to
use other accessories such as the palmrest, sling and interchangeable Hook heel
plate etc.
6. An excellent match trigger mechanism positioned at a point for perfect
balance.
-
Total weight: approx.
9'/'
Ibs.
-
Overall length: 45 inches.
7. It is unnecessary to lubricate the air chamber or plunger due to the use of
new improved material.
8. The ANSCHUTZ Match Air Rifle is also available with cocking action and
stock for Left-Handed shooters.
9. As a result of the excellent precision of the ANSCHUTZ Match Air Rifle, the
method of loading and, design adapted from the ANSCHUTZ Mod. 54 small
bore target rifle, the discriminating marksman has at last a perfect weapon for
bath Match and training purposes.
