Specification Sheet

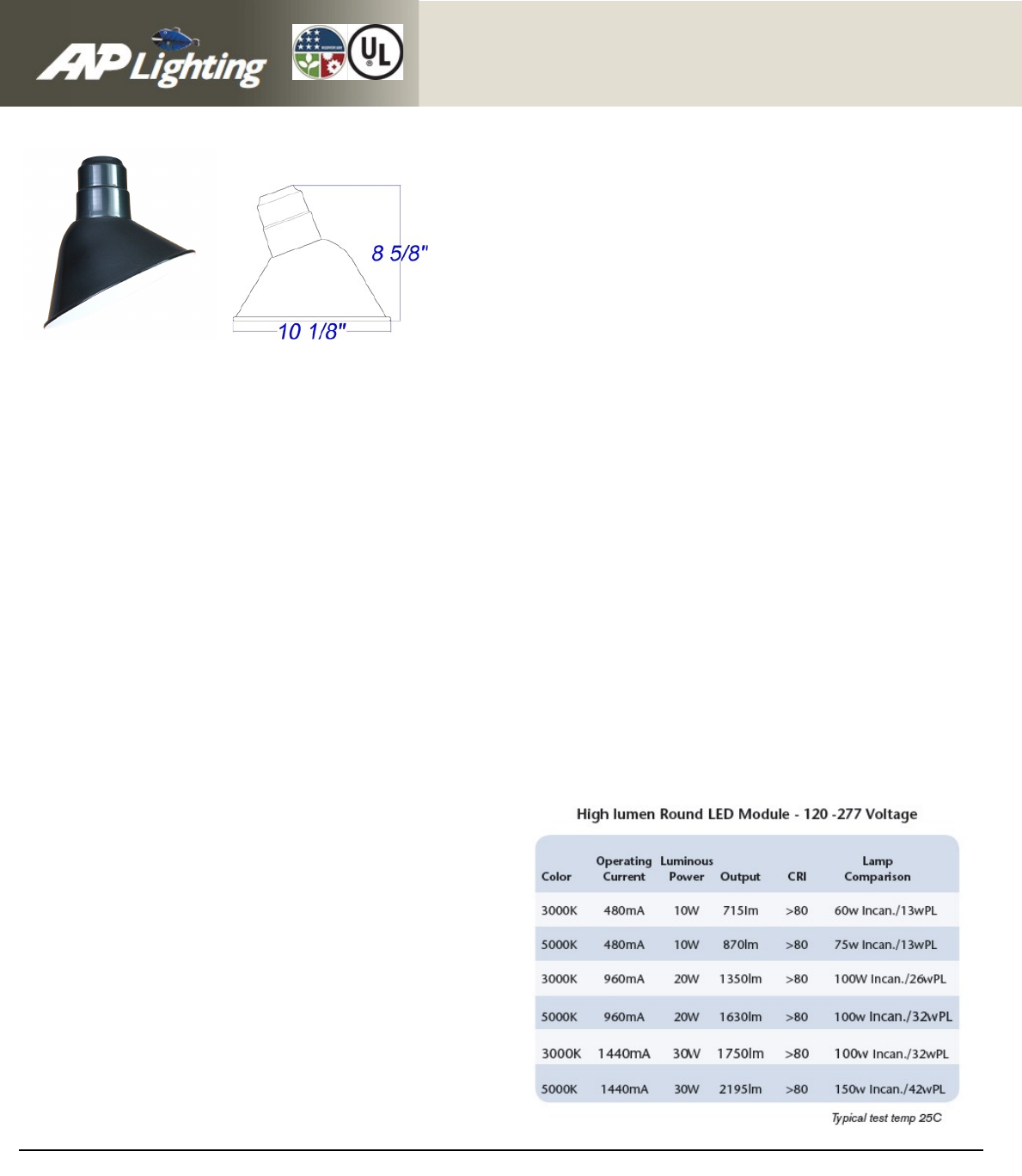

A810 - TECHNICAL SPECIFICATIONS
Max LED: 20w
Max HID: 100w
Max INC: 150w
Max WPL: 42w
Height: 8.62"
Width: 10"
Product Description
10" Angle Shade-Our Line of Angle Shades are the Perfect Solution for Illuminating
Signs, Doorways, and Awnings. They Range in Sizes from 7" to 14" for you
Specific Application. They are Constructed of Spun 1100 Aluminum Alloy and are
offered in a Wide Array of Powder Coated Color Finishes for Durability. UL Wet
Listed when Installed on a Stem or Arm.
Paint:
Standard Powder Coating Process A polyester powder coat is used for superior
gloss and color retention. State of the art 20 PSI pressure power wash at 140˚
incorporates five step iron phosphate process with sealer and DI water to cleanse
and pretreat the metal surface for maximum paint adhesion. Electrostatically
applied ranging from texture to smooth glossy, polyester powder topcoat and
baked at 430˚ for maximum hardness and exterior durability.
Shades, Arms, Post and Wall Mounts and Accessories:
White paint standard inside all painted fixtures. Screw hardware may not match
finish, but are made of stainless steel – see color selections. ANP will do its best
to match your custom color. Consult Factory for prices. Steel shades available,
consult Factory. Fixtures, arms and post mount are U.L. wet listed when installed
according to manufacturer’s instructions. Design and construction may change at
Factory’s discretion. When ordering Raw Copper finish or Brass, please note that
some accessories/components – such as finials, decorative balls and spacer
tubes are painted Copper or Brass and are not raw Copper or raw Brass. Cast
back plates included are solid copper. All hubs are painted Copper. Some
accessories may extend below fixture line or be out of proportion. When using a
combination of accessories, contact factor for compatibility.
Marine Grade Paint
For objects exposed to extreme conditions as is found in coastal
regions or industrial atmospheres we offer, at an additional charge, a
highly weather and UV resistant powder coating that withstands up
to 3000 hours of continuous salt spray and comes with a 5 year
warranty.
Consult Factory for additional paint cost and availability.
RLM Aluminum Specifications:
RLMmounts:Aluminummanufacturedusingschedule401∕2"or3∕4"IPS.RLM
shades: 1100 aluminum alloy, typically .08 - .125 thickness.
HID Ballast
Maximum Ballast to lamp distance
50w - 5' 70w - 15' 100w - 20' 150w - 10'
175w only limited by size of conductor between the ballast and the lamp. To
increase ballast to lamp distance long range igniter is available.
l The desired voltage must be specified
l If required voltage cannot be determined, only the 277 volt line will be drawn
to prevent damage to ballast
l 250 Watt HID ballasts supplied as multi-tap and with mogul socket
l 480 volt ballasts, where available, will have an additional up-charge (480
volts requires a separate ballast, it is not included in a multi-tap setup)
l All HID ballasts will be HPF (High Power Factor) except as noted
l Multi-tap 120 volts and 277 volts provided
l Dimming Ballast available
l Emergency Back-up Ballast available
Fluorescent Ballast
l Multi-tap 120 volts and 277 volts provided
l Minimum Starting temperature -18◦C
l Long range ignitors available Fluorescent
l UL Listed and CSA Certified
l Fluorescent dimming Ballast available
