-U

4.3.15.3. Disconnect Opus short plug from RU

To disconnect the Opus short plug, pull on the collar to release the plug.

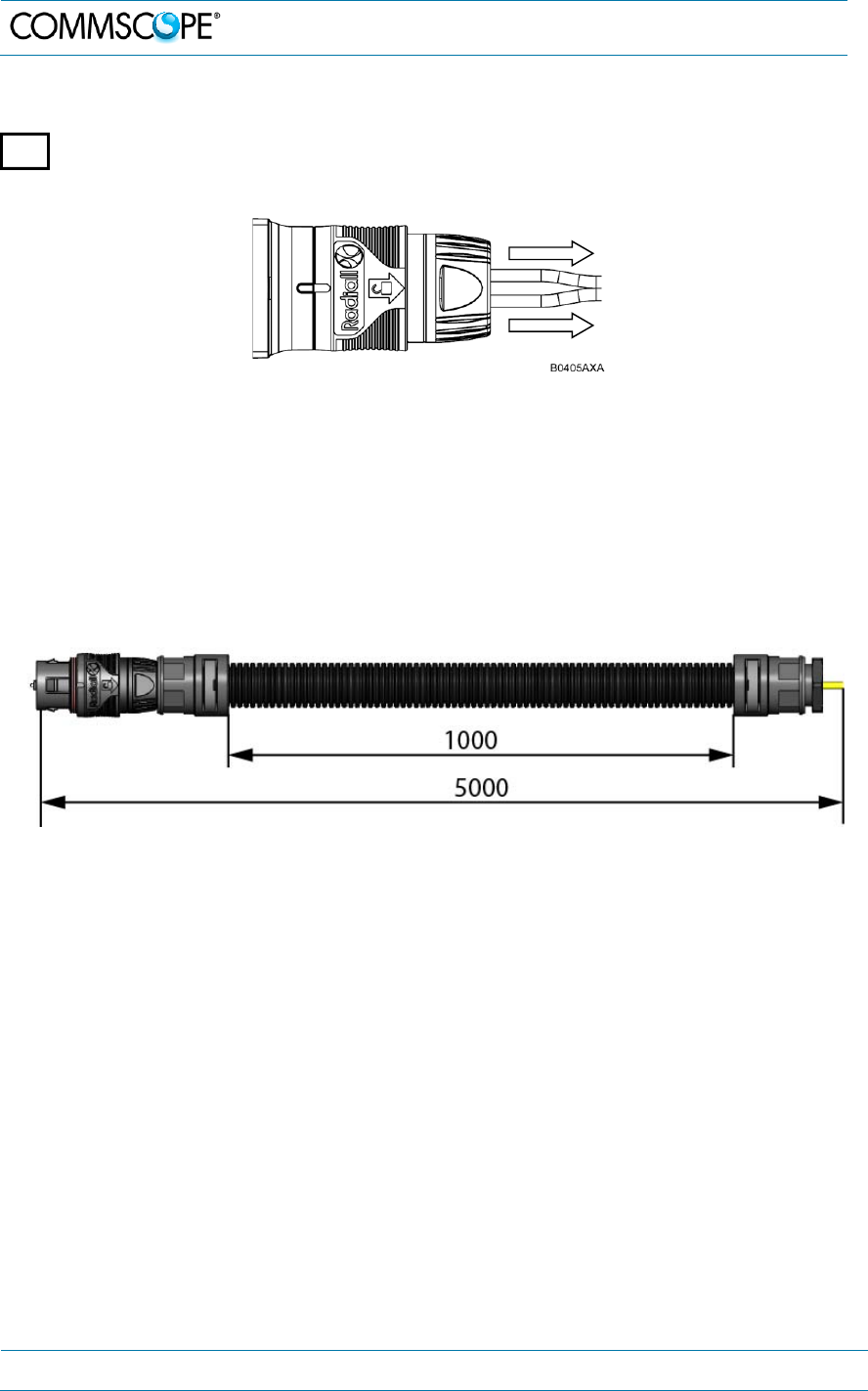

figure 4-33 Disconnect Opus short plug from RU

4.3.16. Optional equipment for optical fiber connection

To ease the optical connection additional equipment is available as an option:

- optical LC/APC pigtail, 5000 mm

- ready-made optical pigtail kit with Opus connector and protective tube, 5000 mm

figure 4-34 Optional pigtail kit

For connecting/disconnecting the Opus plug of the optical pigtail kit see chapters

4.3.15.2 and 4.3.15.3.
