4. Commissioning
Page 44 User’s Manual for ION
®
-U
Note: The LC latch must be pressed down in order to slide it into the cavity of the LC
support.
Insert the LC connector by its side
into Cavity A of LC support until it
clicks into place.
Insert the LC connectors by their sides
into the LC support until they click
into place. Ensure that the channel
positioning is correct as shown.

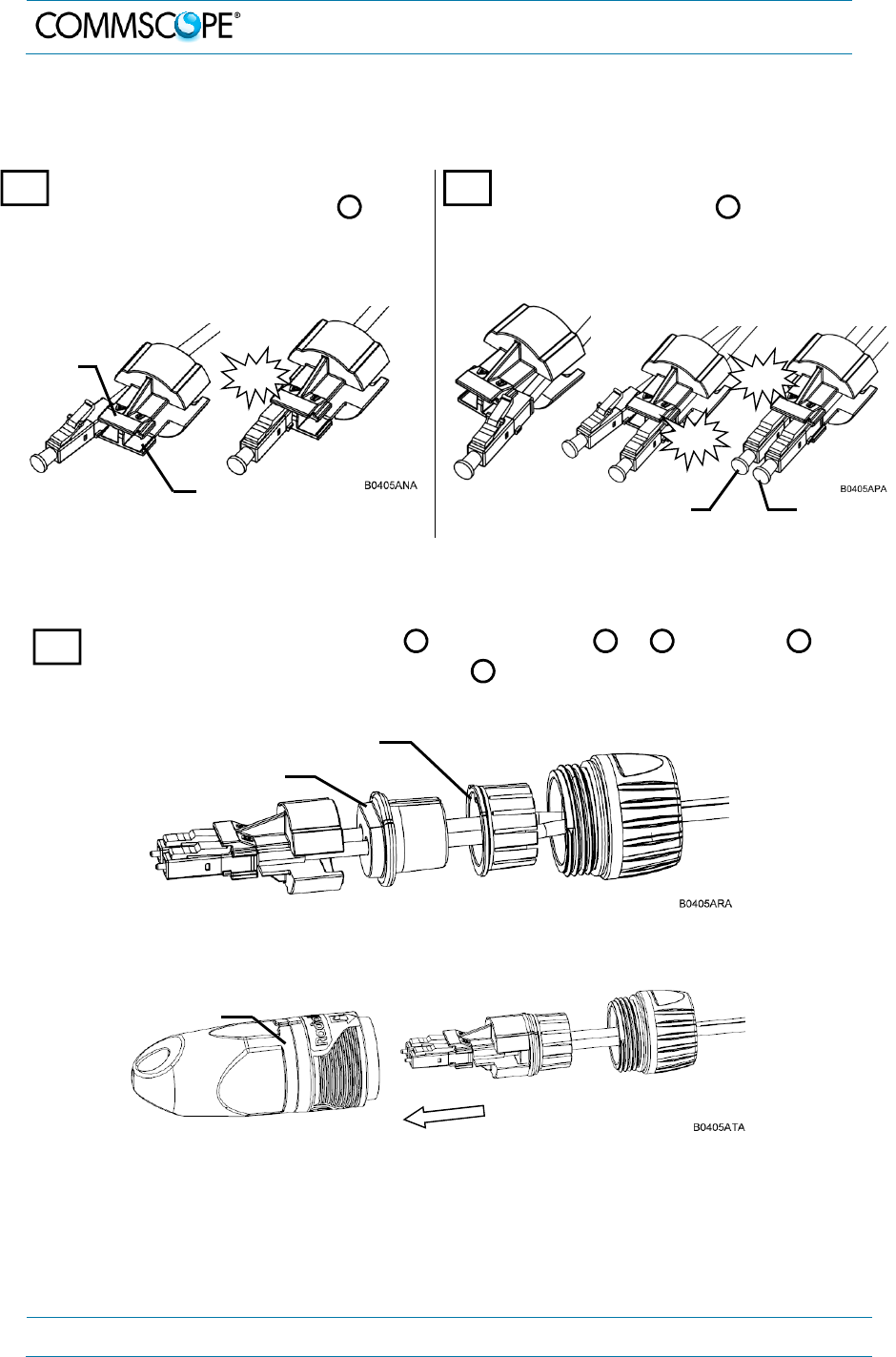

figure 4-26 Simplex cavity A figure 4-27 Duplex cavity A & B
Align and assemble LC support with split gasket or and clamp .
Insert this assembly into the plug body as shown. The inside pin of the
clamp must be aligned with the groove in the split gasket.
figure 4-28 Assemble Opus short plug
figure 4-29 Insert LC connector plug into plug body
5
5
5
3
4
2
6
3 3b
click
click
Channel BChannel A
click
Channel A
Free slot
4
Inside Pin
Flat surface
Slot alignment mark
