User's Manual

4. Commissioning

Page 26 User’s Manual for ION

-U

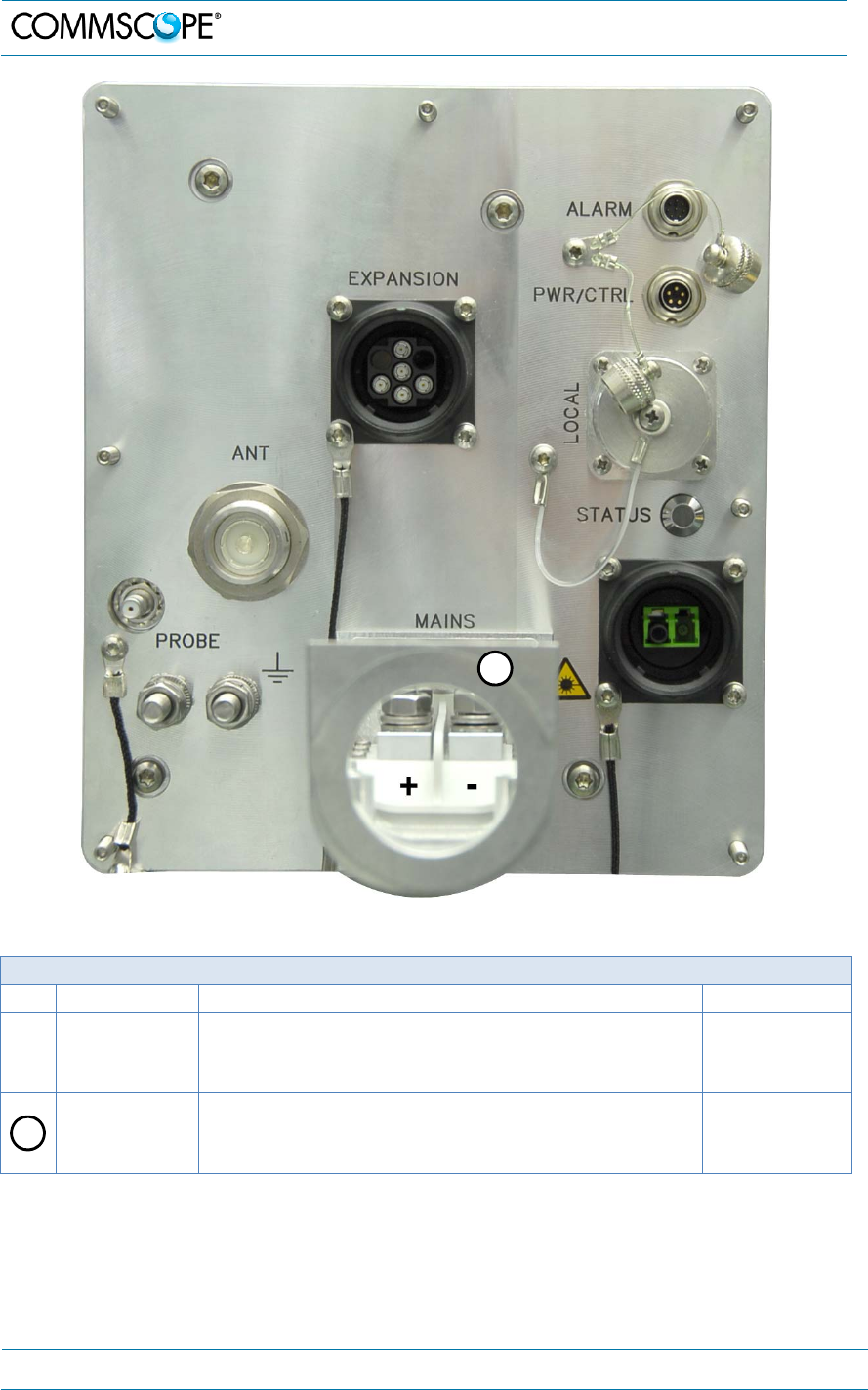

figure 4-11 ION-U H 7P/80-85P/17(E)P/19P DC version connector flange

ION-U High Power RU Connectors/Indicators

Port/Conn Purpose Type

All, except

MAINS

The connectors and indicators for the AC and the

DC version are identical except for the MAINS

connector.

MAINS

This connector provides the power to RU models

that use standard DC (-60 to -48 Vdc) power.

M6 bolts,

hex nut, &

washers
