CommScope ERA
®
CAP MX Medium Power Carrier Access Point Installation Guide M0203A5A_uc
Page 60 © November 2020 CommScope, Inc.
Installing CAP MXs

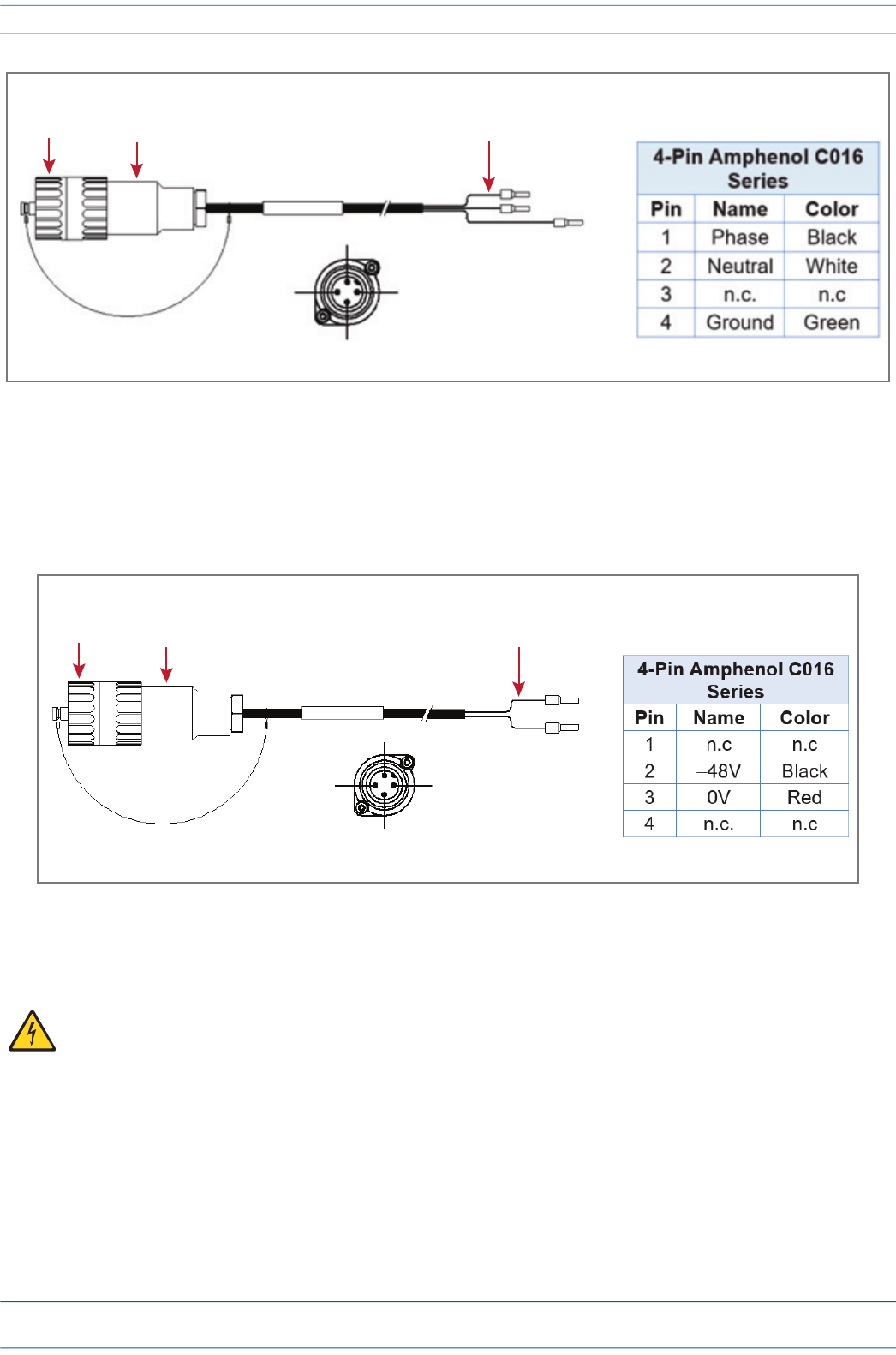

Figure 17. CAP MX AC Power Cable
CAP MX DC Power Cable
The standard CAP MX DC power cable is a 3.2 m (10.5 ft) 13 AWG cable with a 4-pin Amphenol C016 series
plug on one end to connect to the CAP MX Mains connector. The other end of the cable is unterminated with
2 end splices to connect to the -48 Vdc power source. The standard DC power cable is shown in Figure 18.
Figure 18. CAP MX DC Power Cable
Connect the CAP MX Power
Connect the Power connector as appropriate for this installation:
• "Connect the Mains Power to the CAP MX” on page 61
• "Connect a Hybrid Fiber Splice Box” on page 62.
Do not connect or disconnect the power cable at the Mains connector while power is on. Turn off Mains
power before connecting the power cable at the unit, then, engage mains power again.
Protecve
cap
1
2
3
4
CAP M
Mains
connector
Black
White
Green
Amphenol
4-Pin female
connector
3x
end splice
Protecve
cap
1
2
3
4
CAP M
Mains
connector
Black
Red
Amphenol
4-Pin female
connector
2x
end splice
