Installing CAP MXs

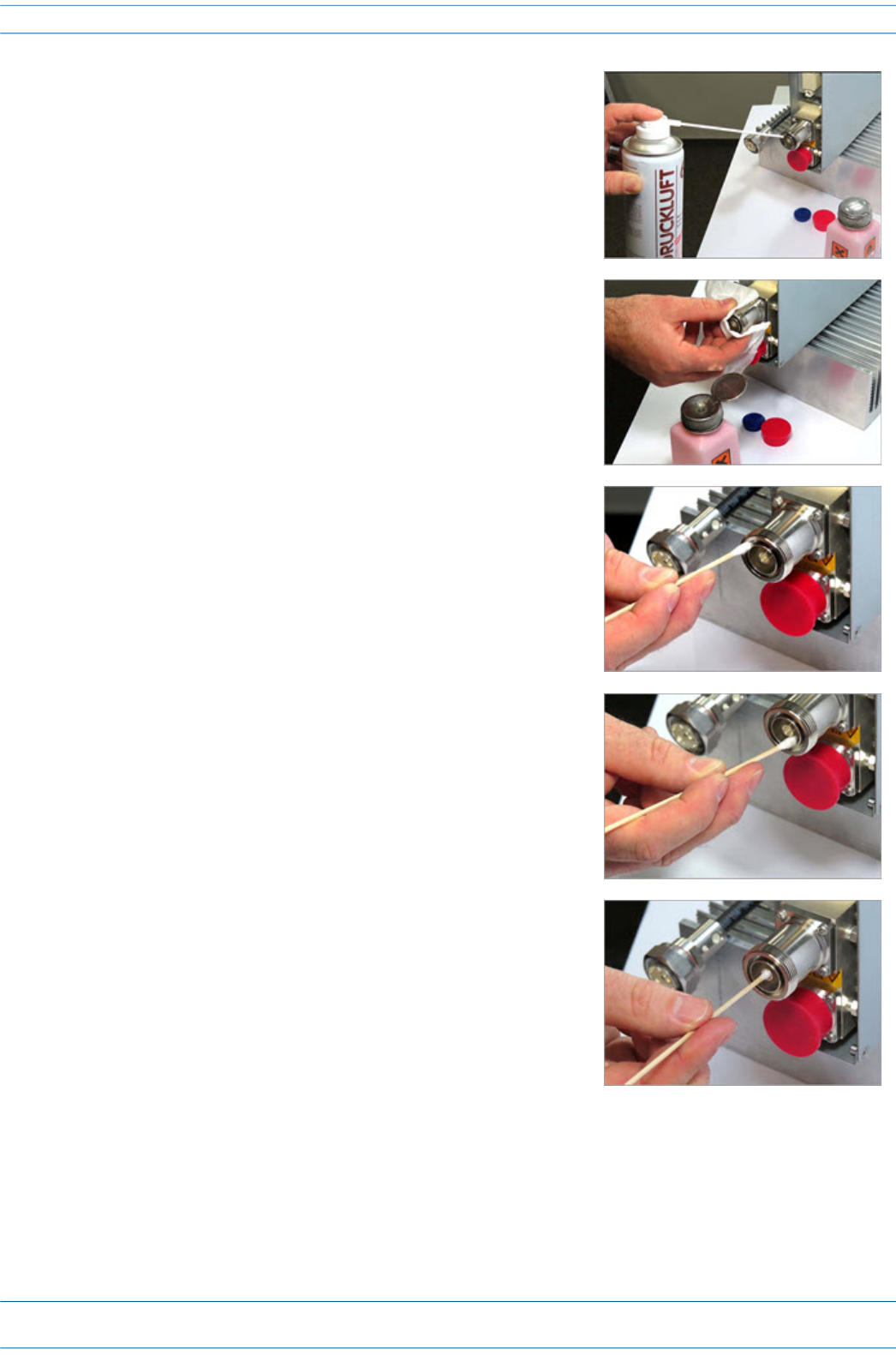

3 Use compressed air to remove metal chips and small particles
from the mating and inner surfaces of the connector.
4 Use a lint-free wipe drenched with isopropyl alcohol to clean the
connector winding.
5 Use a cotton bud drenched with isopropyl alcohol to clean the lip
of the inner ring.
6 Use a cotton bud drenched with isopropyl alcohol to clean the
inside surface of the inner ring.
7 Use a cotton bud drenched with isopropyl alcohol to clean the
inside of the center conductor spring tines.
