CommScope ERA
®
CAP MX Medium Power Carrier Access Point Installation Guide M0203A5A_uc
Page 54 © November 2020 CommScope, Inc.
Installing CAP MXs
Connect the CAP MX to an RF Antenna
The following sections guide you through connecting the CAP MX; complete these procedures in the order in
which they are presented.
• "Clean the RF Cable Connectors” on page 54
• "Connect the Antenna Cable(s)” on page 57.

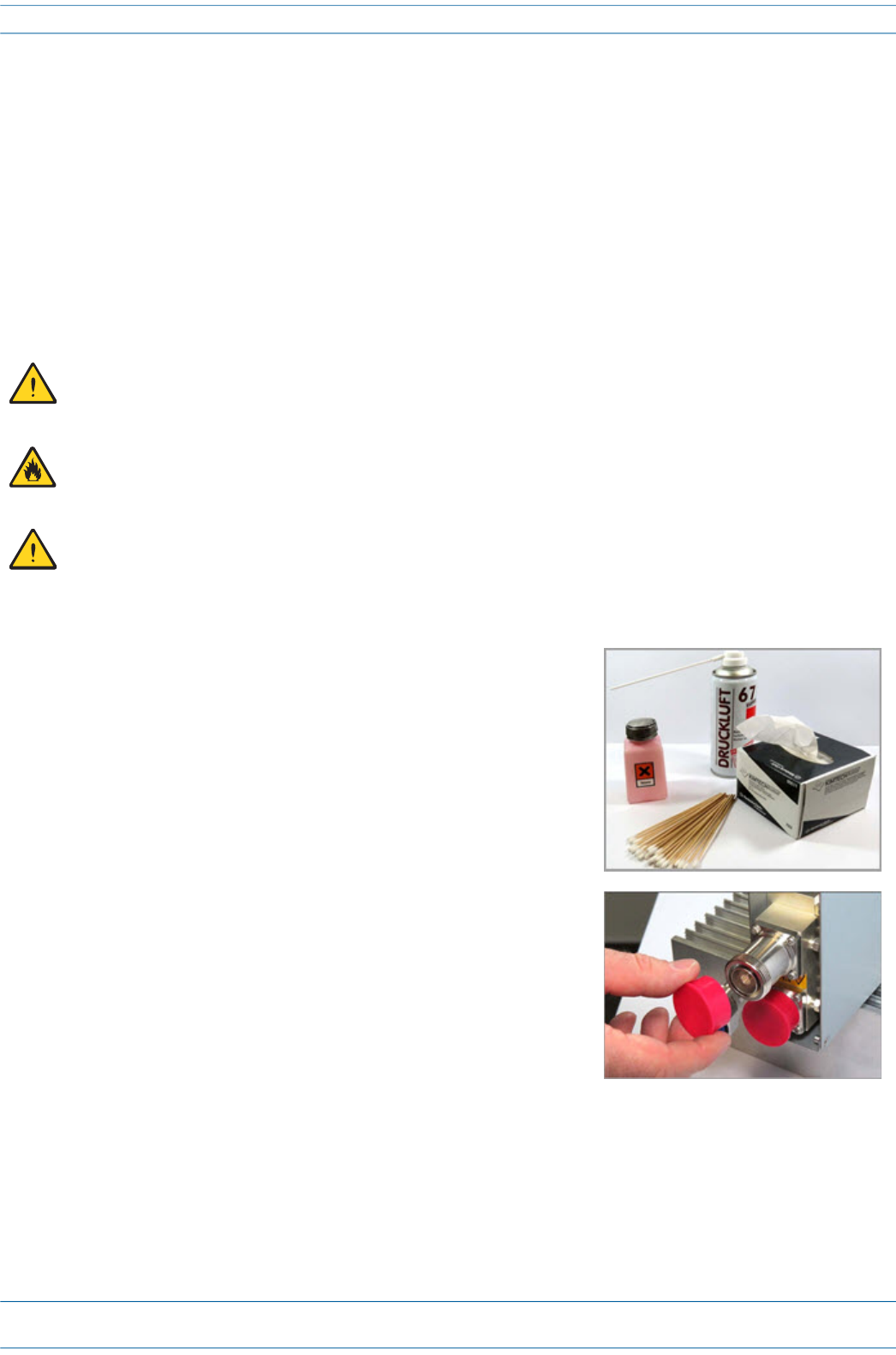

Clean the RF Cable Connectors
This section tells you how to clean RF cable connectors. The graphics in this section illustrate the cleaning
procedure and do not show the CAP MX.
Do the following to clean the RF cable connectors.
This procedure requires the use of compressed air. Wear protective clothing—especially protective
glasses—to protect against injury from flying particles.
This procedure requires the use of flammable material. There is a risk of fire. Keep away from sources of
ignition.
This procedure requires the use of eye irritant product. There is a risk of eye irritation. Avoid contact with
eyes and skin. Wear protective clothing—especially protective glasses.
1 Gather the following cleaning tools:
• Isopropyl alcohol
• Compressed air
• Lint-free wipe
• Cotton buds.
2 Remove the protective cap from the RF connector.
