CommScope ERA
®
CAP MX Medium Power Carrier Access Point Installation Guide M0203A5A_uc
Page 50 © November 2020 CommScope, Inc.
Installing CAP MXs

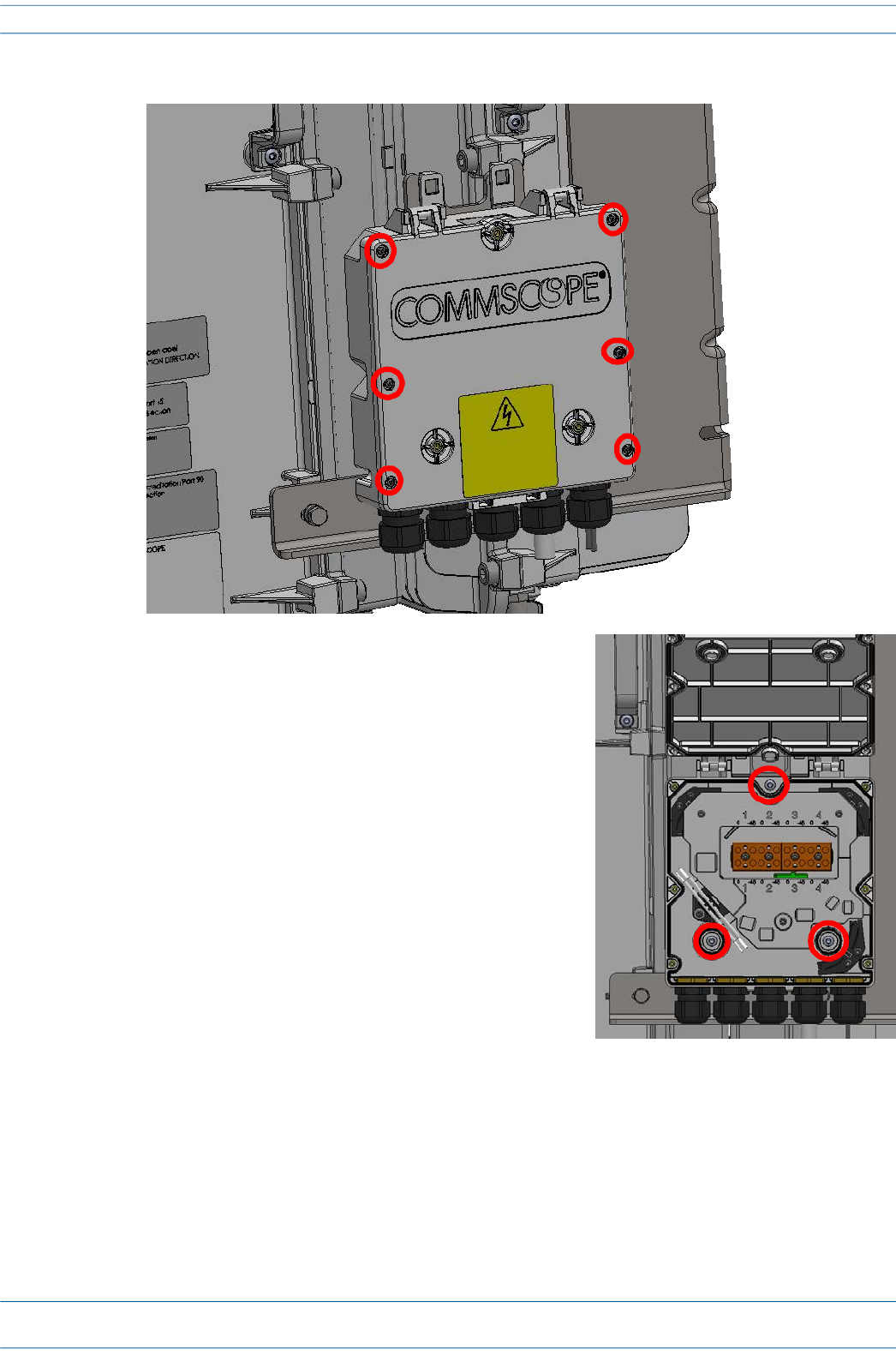

3 Remove the six neck screws (shown below) from the front cover of the Splice Box.
4 Open the Splice Box.
5 Attach an M4 x 25 pan-head screw to the upper hole, and two M4
x 25 pan-head screws to the holes in the lower corners of the
Splice Box.
6 Close the Splice Box.
7 Replace the six neck screws that you removed from the front
cover of the Splice Box in Step 3 on page 50.
8 Go to "Grounding the CAP MX” on page 51.
