CommScope ERA
®
CAP MX Medium Power Carrier Access Point Installation Guide M0203A5A_uc
Page 46 © November 2020 CommScope, Inc.
Installing CAP MXs
Attach a Hybrid Fiber Splice Box to the CAP MX
Follow the procedure that is appropriate for this installation:
• "Attaching a Hybrid Fiber Splice Box for a Single Mount Installation” on page 46
• "Attaching a Hybrid Fiber Splice Box for a Dual Mount Installation” on page 49.
Attaching a Hybrid Fiber Splice Box for a Single Mount Installation

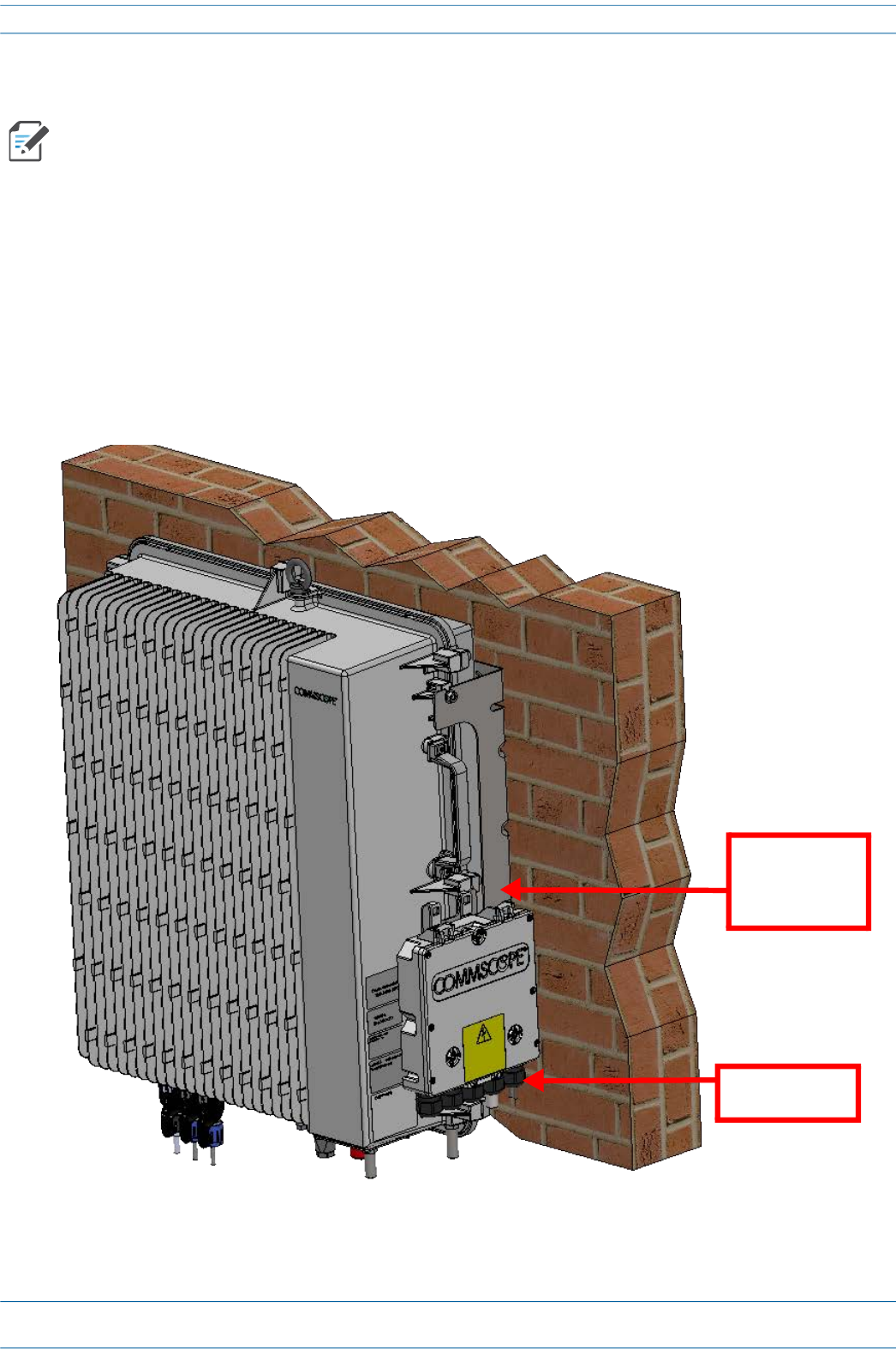

1 Hang the Splice Box onto the Single Mounting Bracket on the right-hand side of the CAP MX, as shown
below.
The steps in this section pertain only to those installations that require the use of the optional Hybrid
Fiber Splice Box to provide fiber and power to the CAP MX. If the optional Hybrid Fiber Splice Box is not
required for this installation, skip to "Grounding the CAP MX” on page 51.
Single
Mounting
Bracket
Hybrid Fiber
Splice Box
