User's Manual

WLS Installation and Maintenance Manual Installation
Geometrix
®
Wireless Location System 12
Andrew Corporation Proprietary
• Terminal Crimp tool
• Adjustable Wrench
• Wire Stripper
• Utility Knife
• Cable ties
• Digital Multimeter
• Laptop PC with HyperTerminal (or equivalent) application installed
• DB-9 (F) – DB-9 (F) null-modem serial cable
2.2 Rack Mounting
1. Attach the WLS mounting brackets to the WLS chassis using supplied #20 torx screws
(or Phillips Screws depending on hardware provided) Figure 2-1 and Figure 2-2 show
the mounting bracket configurations for center mount (relay style rack) and front mount
(open frame rack), respectively.
CAUTION: Do not use screws longer than ½”. Damage to the WLS may result.
2. Mount the unit in the equipment rack using the supplied rack bolts.

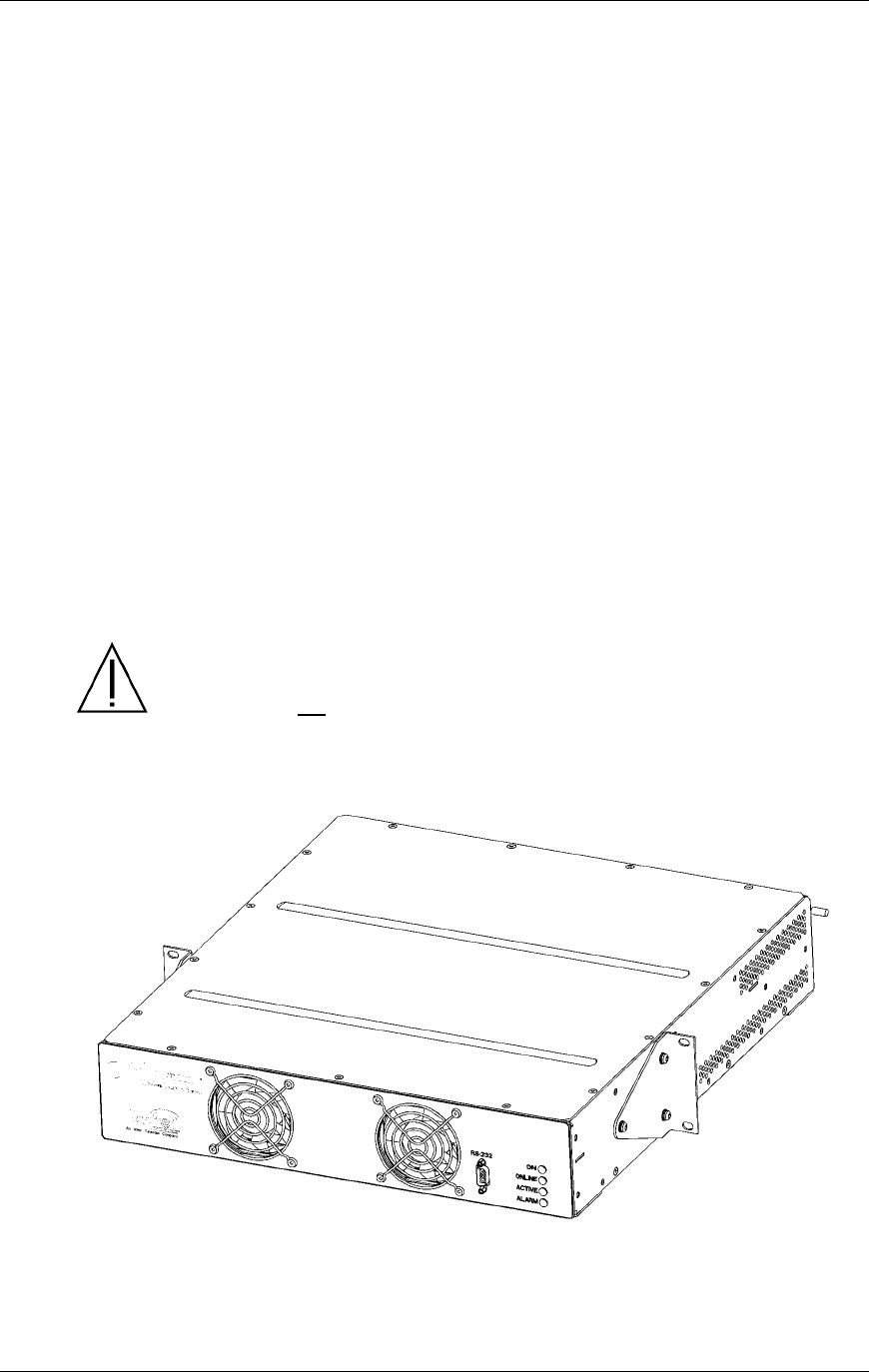

Figure 2-1 Center Mount Bracket Configuration
