Installation Guide

INSTALLATION CONTINUE:

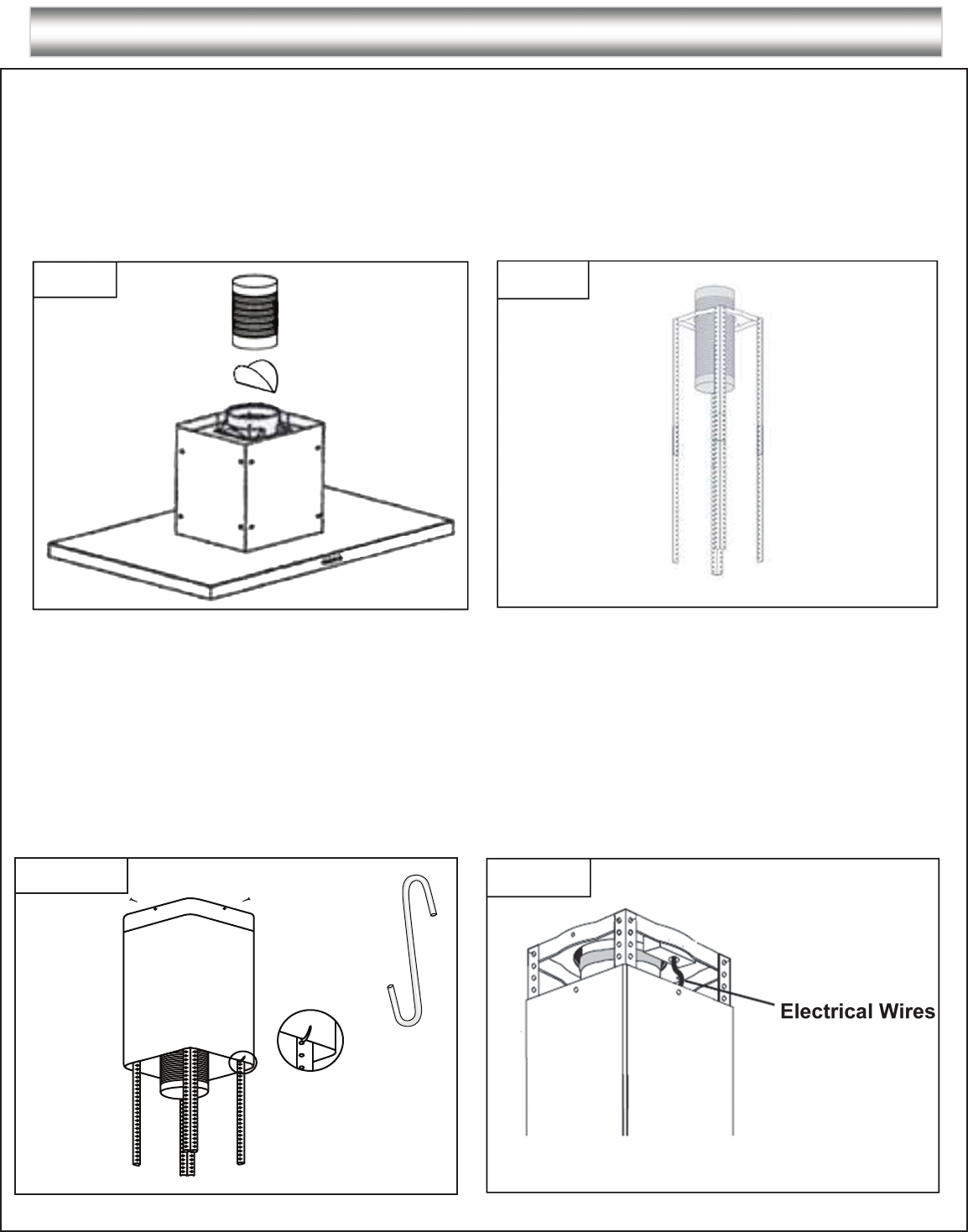

• Fix the damper flap into the damper hole on top of the range hood motor box. (See Fig. # 3)

• Let the ducting pipe go inside through the hole from the ceiling. (See Fig. # 4)

• Measure the length of 6`` round metal duct required from the dampler / duct connector to the ductwork

rough-in in the ceiling. Connect the duct to the damper / duct connector and seal with duct tape.

• Use the supplied `S` hook to hold up the chimneys while feeding the electrical wires. (See Fig. # 5)

• Remove the protective coating from the inner chimney. Carefully slide the inner chimney down into the outer

chimney. Slide the chimneys over the angle brackets.

• Feed the electrical wires up through the chimneys. (See Fig. #6)

• Connect the electrical wires to the wiring box on the ceiling bracket.

Fig # 6

Step 3: Venting

Step 4: Electrical

Fig # 4Fig # 3

Fig # 5

.................
