Faucet Installation
1
2
Tools might be applied to the following places:

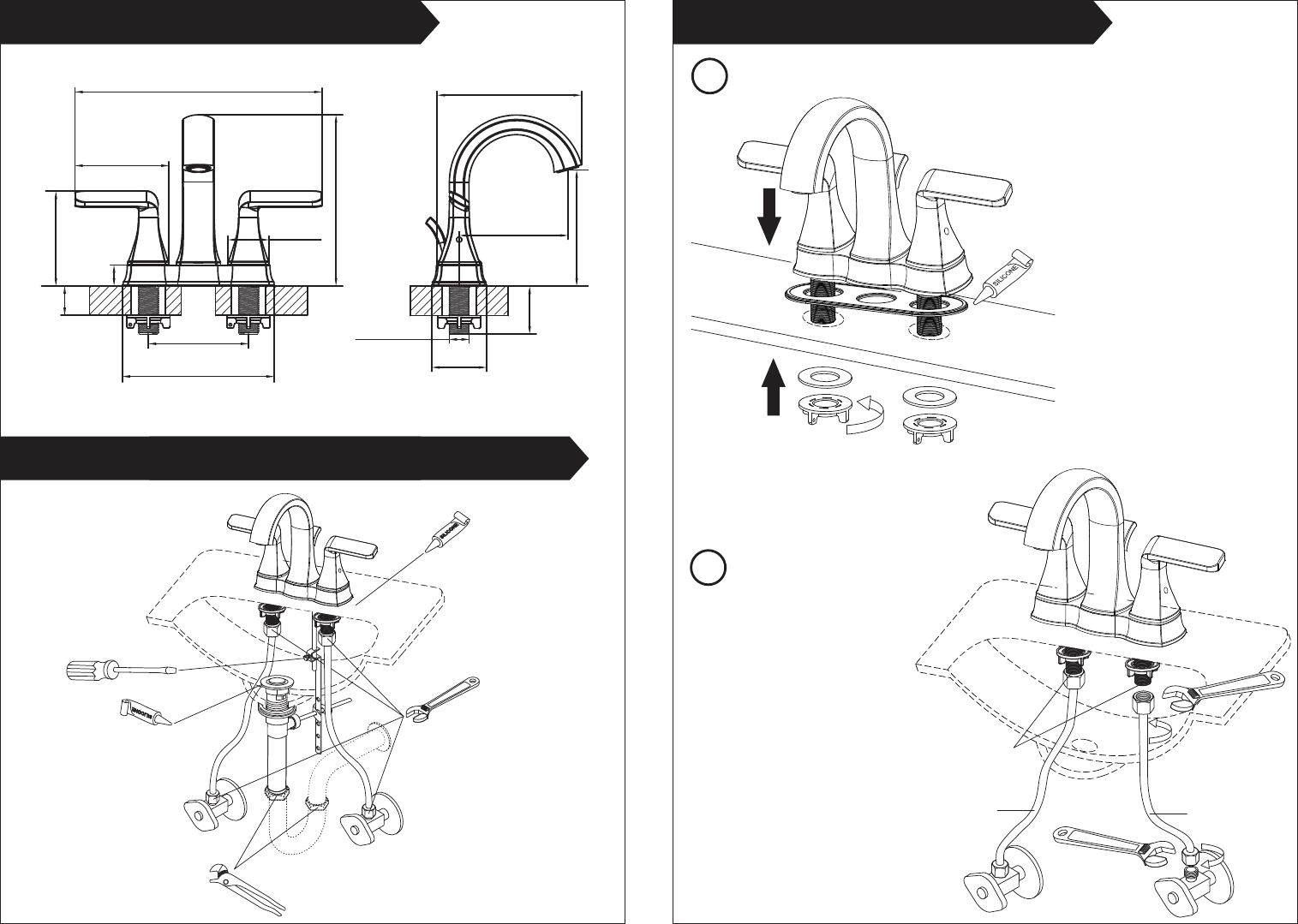

Installation size map
Place the faucet and gasket on the basin.
Underneath the basin, assemble the washer and
lock nut, and tighten the lock nut by hand.
If the basin is uneven, please use silicone
under the gasket.
Connect the supply lines to the faucet
and secure the nuts with an adjustable
wrench.
Warning: Supply line #1 is for hot
water, supply line #2 is for cold
water, don't mix up.
HOT
COLD
9.9 in. (25.2 cm)
1.6 in.
(4.2 cm)
3.75 in. (9.6 cm)
1.1 in.
(3 cm)
Max.
3.8 in.
(9.7 cm)
1/2-14NPSM
6.1 in. (15.5 cm)
6.8 in.
(17.5 cm)
4 in. (10.2 cm)
2.2 in. (5.6 cm)
0.8 in.
(2.1 cm)
5.75 in. (14.7 cm)
4.3 in. (11.1cm)
4.6 in.
(11.9 cm)
1.9 in. (4.9 cm)
2
1
1/2”( 13mm) IPS
