2.1.2. All LaunchPads
The following steps need to be performed on the LaunchPad/BoosterPack:
1) Install the AIR B-Smart BoosterPack onto the LaunchPad board. Ensure the
BoosterPack is oriented correctly. With the LaunchPad emulator section at the top, the
BoosterPack radio module should overhang at the right. Figure 4 shows an example of
a BoosterPack installed on a MSP-EXP430G2 LaunchPad, but the orientation is the
same for all LaunchPads.
2) Ensure the jumper is installed on BoosterPack JP1. See section 3.2.7 and Table 6 for
more information regarding this jumper.
3) Ensure the jumper is installed on BoosterPack JP2, unless an ammeter is connected for
taking current measurements. See section 3.2.7 and Table 7 for more information
regarding this jumper.
4) Install jumpers on BoosterPack JP3 and JP4 to select the desired UART CTS/RTS pin
mapping. See section 3.2.7, Table 8, and Table 9 for details. Also refer to the Emmoco
Em-Ware Wiki (see section 2.2) for information regarding the required jumper settings
when the BoosterPack is used with a specific LaunchPad.

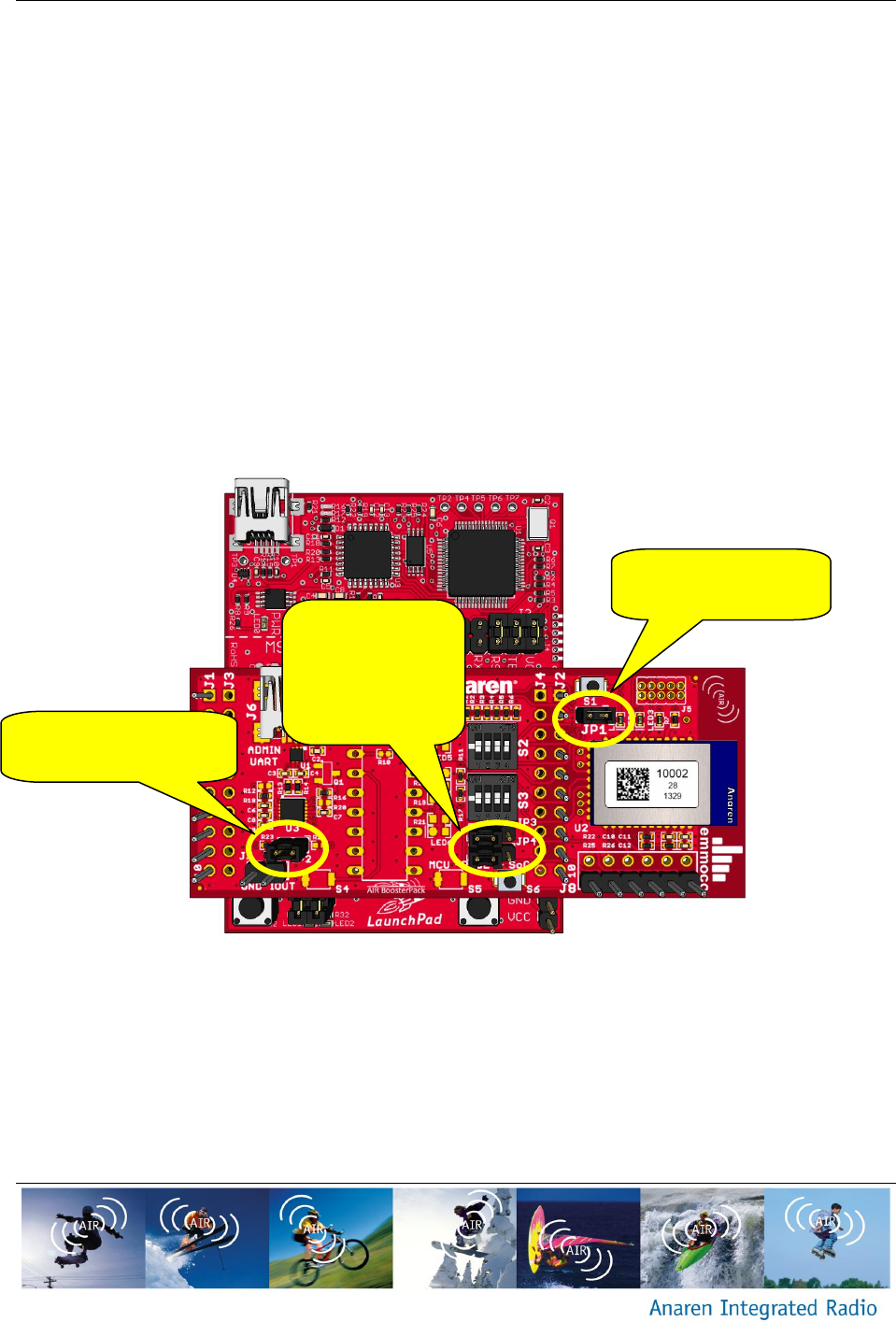

Figure 4 – AIR B-Smart BoosterPack Installed On MSP-EXP430G2 LaunchPad
Jumper must be on
BoosterPack JP1.
Jumper installed on
BoosterPack JP2.
Select desired
RTS/CTS pin
mapping using
BoosterPack
JP3 and JP4.
