Owner manual
Special Features

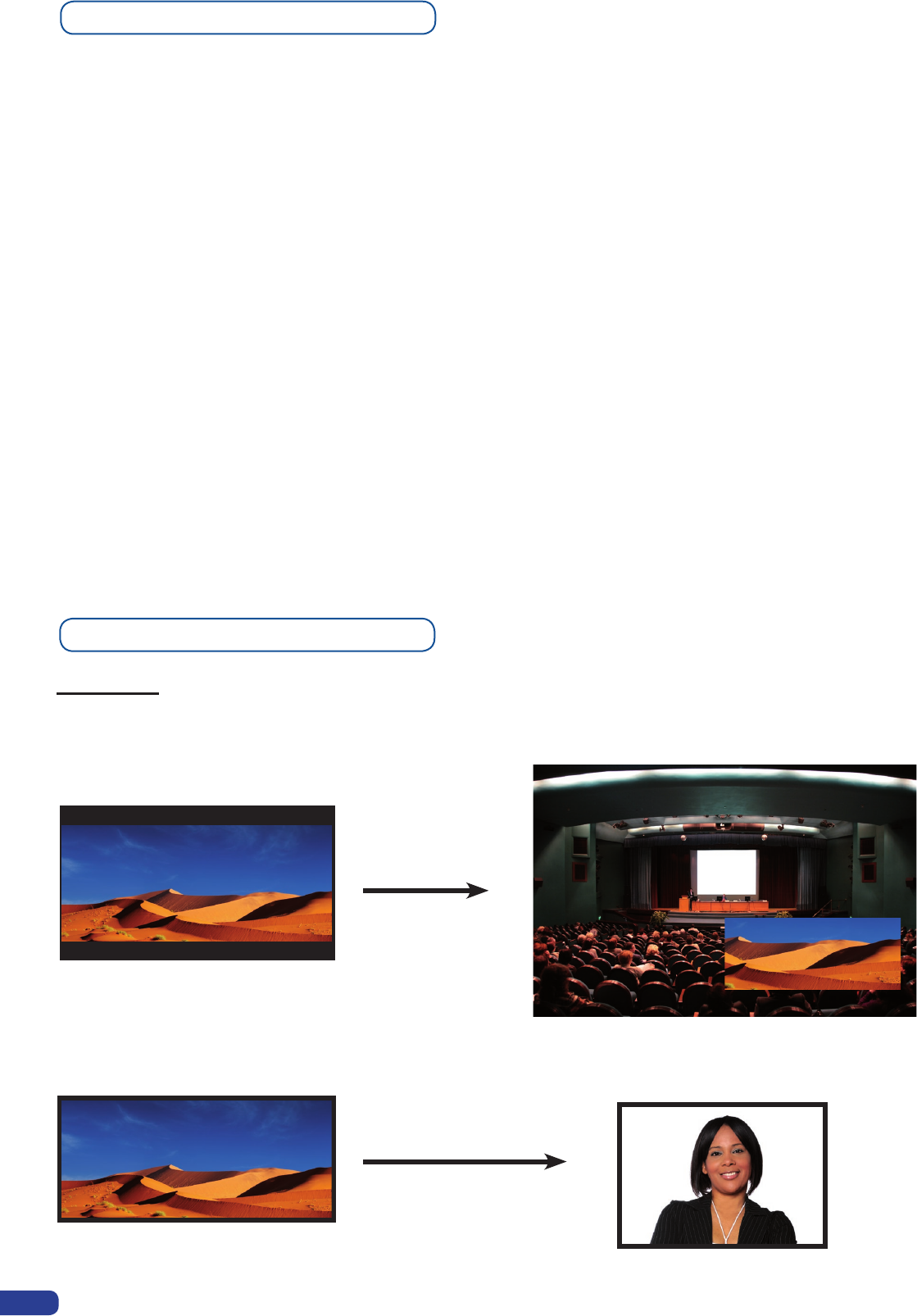

Dynamic Fit (automatically activates the Transparent Background)
- Dynamic & Automatic adjustment of the PIP to t the source image borders (Black Stripe).
- Automatic adjustment of the PIP (Ratio) to t the source image borders during a transition.
PIP
To congure audio settings of the SMX200, plug all audio inputs into the device, and navigate to the Audio
menu.
1. Choose the audio mode, Break Away or Top Layer Follow, which you wish the audio to work in.
* NOTE * : the Break Away mode will route the selected audio source, while the Top Layer Follow mode will
route audio from the topmost active layer of the SMX200.
2. Select Source Settings from the Audio Menu to select the audio source you wish to work with, then set
levels and left/right balance for each input.
3. Select Auxiliary Settings to determine level and balance of the auxiliary input.
4. In Matrix Mode, all output parameters can be assigned separately to outputs #1 and #2.
5. In Matrix Mode, select Out1 Prelist or Out2 Prelist from the Audio menu to set audio pre-listen output
parameters.
6. Select Delay Mode, to determine how the SMX200 deals with audio delay. Select Auto Adjust to let the
SMX200 determine audio output delay. Select Manual Adjust to determine audio delay manually.
* NOTE * : selecting Manual Adjust will give access to audio delay value (in milliseconds) of the main and
Prelist audio output Menus.
Audio conguration
46
