2- Clone mode: The output #1 and #2 will be the same. All changes on the output #1 will be affected to the

output #2. Layers will have the same position and size.

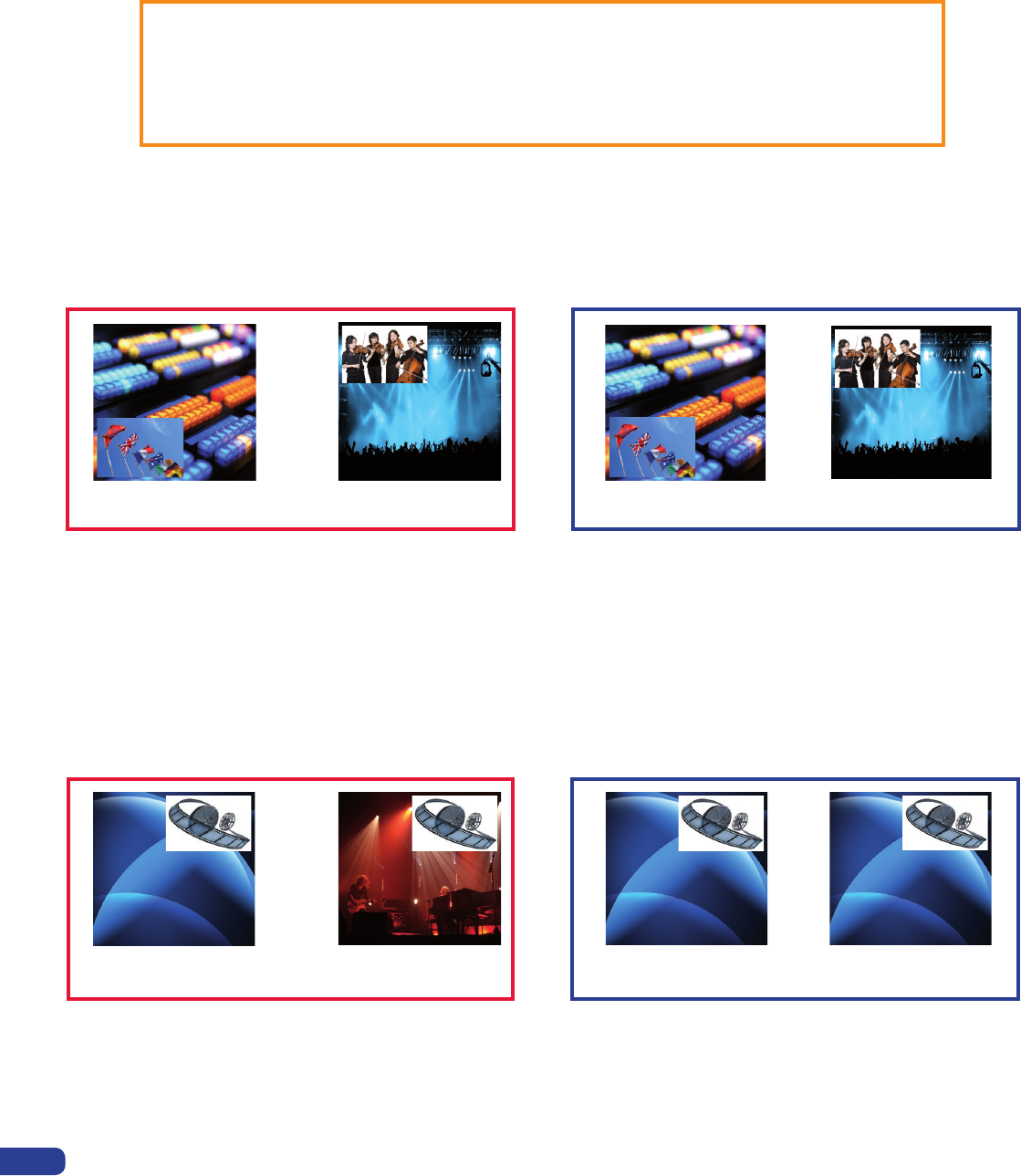

For the ❶, ❷, ❸ & ❹ modes:

Red case: Mirror Mode activated only for the PIP layer

Blue case: Mirror Mode activated for PIP layer and Background live Layer

Using the Matrix Mode, several conguration are available, the Simple Mode and the Mirror Mode.

Using the Mirror Mode:

OUTPUT #1

OUTPUT #2

Select the chosen layer and go in the layer menu, then select the “Layer Copy Mode” menu.

There are several mirror positioning options:

To use the Mirror Mode, simply select the Matrix Mode through the Main menu, then the Mirror Mode can be

activated layer by layer thanks to the layers menu.

1- No Copy: this mode is the standard matrix mode, output #1 and #2 are independent...

❶

❷

OUTPUT #1 OUTPUT #1OUTPUT #2 OUTPUT #2
