Working with Native Matrix Mode

To activate the Native Matrix Mode:

Mode Menu → Native Matrix Mode Menu

You’ll nd all menus from the Mixer Mode in the Main menu except some specic matrix functions added.

To work with native matrix mode, you have to use the Matrix # buttons rst.

For instance, if you want to put the Frame #1 on the Output #1 and the Live source #3 on the Output #2:

Press Matrix #1 button → Press Background Frame button → Press input #1

Press Matrix #2 button → Press background Live button → Press input #3

Press Take to view the result on both screens

Don’t forget to press the correct Matrix # button before pressing the Layer selection button, in order to be sure

doing the manipulation on the correct output.

Video Out

In Matrix Mode, the menu “Connection Mode” appears. It allows you to choose recording Output #1 or

Output #2.

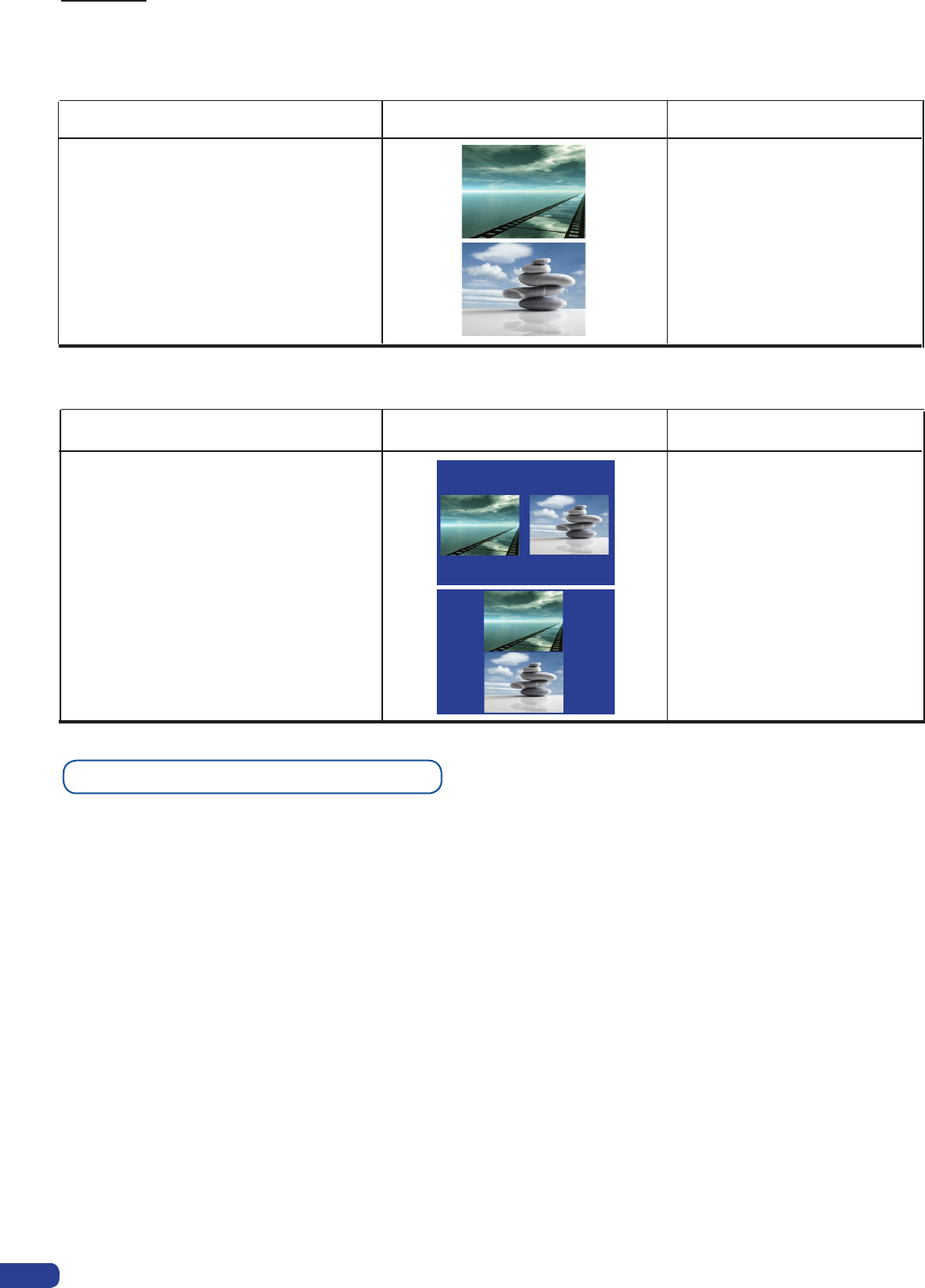

Display Mode

Presentation

Availability

YES

Matrix Mode only

YES

Matrix Mode only

OUT #1

OUT #2

Output #1

Output #2

Output #1 & #2 side by side

Output #1 & #2 Top and Bottom

Menu→ Video Out → Connection →

Output Titled Horizontally

Menu→ Video Out → Connection →

Output Titled Vertically
