Owner manual

• ANALOG OUTPUTS

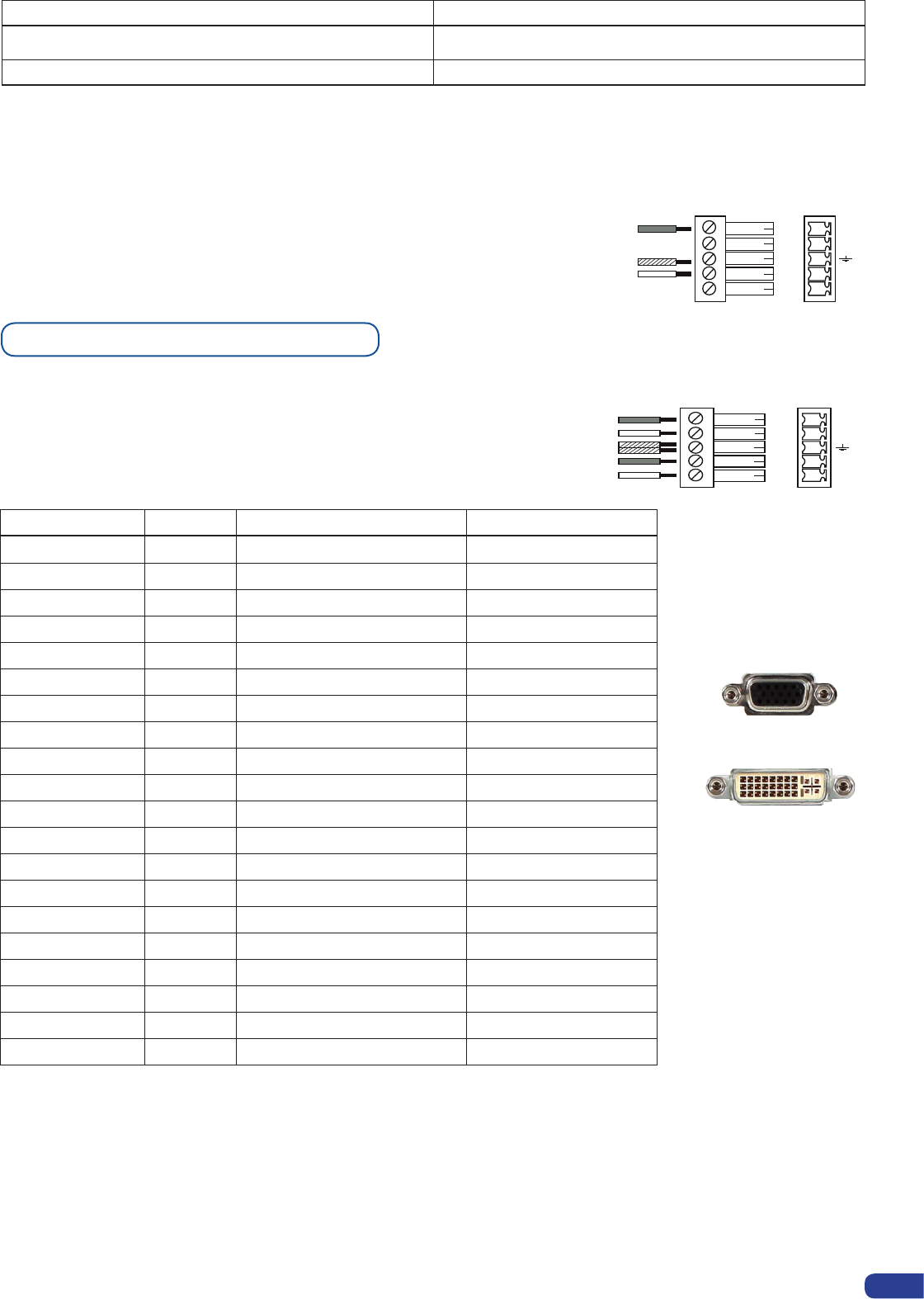

Connector: Outputs #1 (Main) & #2 (Preview):
female HD15, DVI-I (analog pins).
Resolutions:
Signals: RGBHV, RGBS and RGsB.
Levels: R, G, B = 0.7 Vp/p.
Sync. : Separate H & V = TTL (negative).
Composite = TTL (negative).
SOG = 0.3 Vp/p (negative).
Impedance: R, G, B = 75 ohms.
Output specications
FORMAT RATIO Available Refresh Rates Reduced Blanking
640 x 480 4 : 3 50Hz 60Hz 72Hz 75Hz
800 x 600 4 : 3 50Hz 60Hz 72Hz 75Hz
848 x 480 16 : 9 50Hz 60Hz 72Hz 75Hz
1024 x 768 4 : 3 50Hz 60Hz 72Hz 75Hz
1280 x 720 16 : 9 50Hz 60Hz
1280 x 768 15 : 9 50Hz 60Hz 72Hz 75Hz
1280 x 800 16 : 10 50Hz 60Hz 72Hz 75Hz
1280 x 1024 5 : 4 50Hz 60Hz 72Hz 75Hz
1360 x 768 16 : 9 50Hz 60Hz 72Hz 75Hz
1366 x 800 15 : 9 50Hz 60Hz 72Hz 75Hz
1400 x 1050 4 : 3 50Hz 60Hz 72Hz 75Hz
1440 x 900 16 : 10 50Hz 60Hz 72Hz 75Hz
1600 x 1200 4 : 3 50Hz 60Hz
1680 x 1050 16 : 10 50Hz 60Hz
1920 x 1080 16 : 9 50Hz 60Hz 72Hz 75Hz YES
1920 x 1080 B 16 : 9 50Hz 60Hz YES
1920 x 1080 C 16 : 9 50Hz 60Hz YES
1920 x 1080 HD 16 : 9 50Hz 60Hz YES
1920 x 1200 16 : 10 50Hz 60Hz YES
2048 x 1080 19 : 10 50Hz 60Hz YES
or
• Connector: Balanced or unbalanced mono/stereo inputs
(all pin MCO male connector).
8 audio stereo inputs + 1 auxiliary.
(all balanced / unbalanced).
Vi = +15dBV max.
Zi = 40Kohms (Balanced).
L+
L-
R+
R-
UNBALANCED
LEFT
RIGHT
GROUND
4
MCO male connectors
Inputs #1 to #6: Balanced & unbalanced connection
Inputs DVI #1 to DVI #2: Balanced & unbalanced
connection
Input AUX: Balanced & unbalanced connection
AUDIO SETTINGS
Settings Availability
GAIN
YES: from -
∞
to + 18dB
Balanced Audio YES: Left and Right
17
4
L+
L-
R+
R-
BALANCED
L+
R+
L-
R-
GROUND(S)
Outputs #1 to #2: Balanced & unbalanced connection
