Input specications

• ANALOG COMPUTER

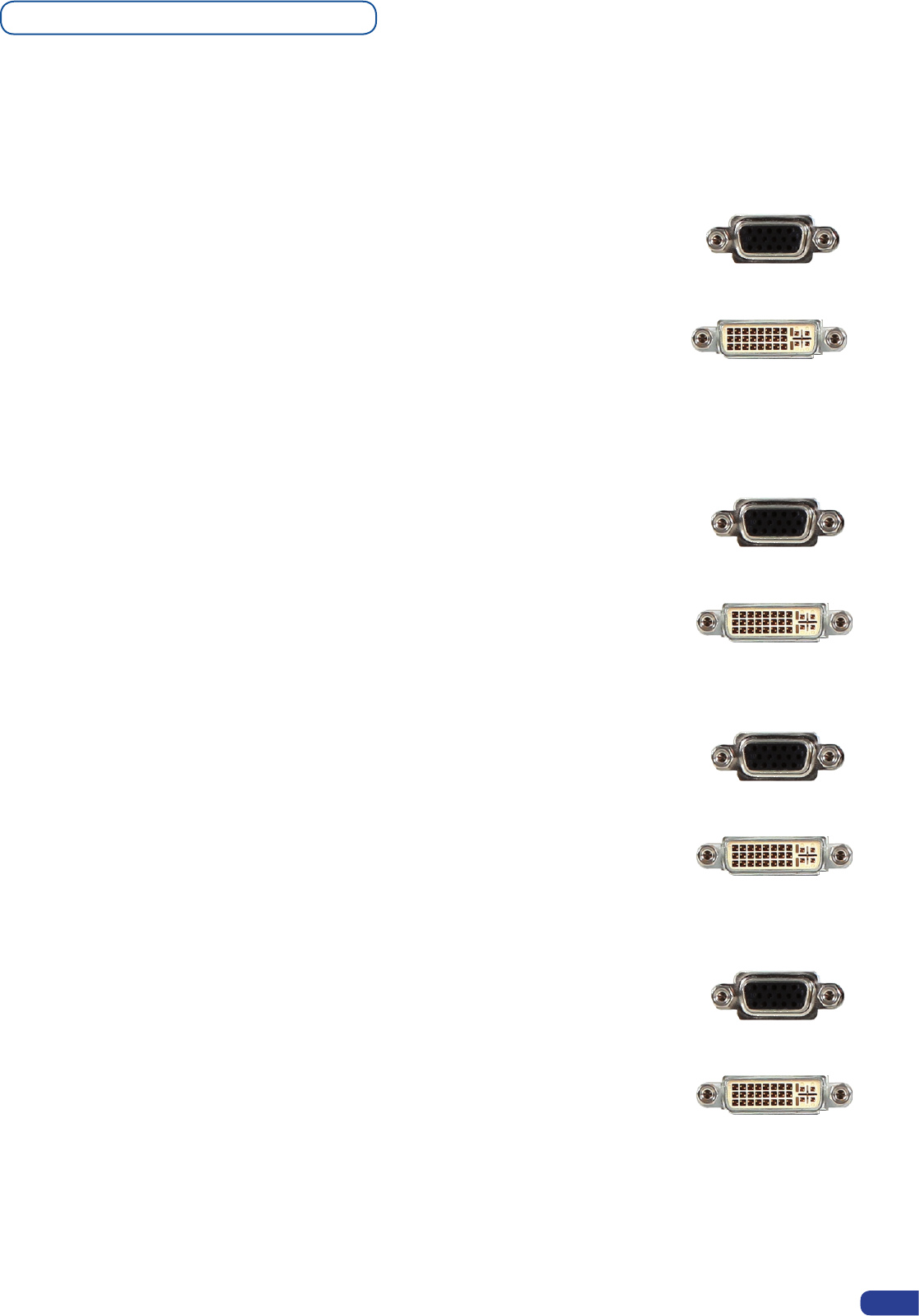

Connectors: Inputs #1 to #4: female HD15. Inputs #5-#6: female DVI-I

(analog pins).

Line frequency: Up to 130 kHz (165 MHz Max pixel rate).

Resolution: Up to 1600x1200 @ 165Mhz, 1920x1200px

(RB, Max V size: 1200px, Max H size 2048px).

Sync. types: RGBHV, RGB/S, RGsB (Sync On Green).

Levels: R, G, B = 0.7 Vp/p.

H & V Sync = TTL.

Composite Sync = TTL and 0.3 V (negative).

SOG (Sync On Green) = 0.3 V.

Impedance: R, G, B = 75 ohms.

H = 75 ohms or Hi-Z.

V = Hi-Z.

• RGB/S - RGsB VIDEO

Connectors: Inputs #1 to# 4: female HD15. Inputs #5-#6: female DVI-I (analog pins).

Frequency: 15.625 kHz - 50 Hz (625 lines).

15.734 kHz - 60 Hz (525 lines).

Levels: R, G, B = 0.7 Vp/p.

SYNC. = 0.3 Vp/p or TTL (negative).

Impedance: RGB = 75 ohms.

SYNC. = 75 ohms or Hi-Z.

• COMPONENT

Connectors: Inputs #1 to #4: female HD15. Inputs #5-#6: female DVI-I (analog pins).

Input #8: female HD15.

Frequency: 15.625 kHz - 50 Hz (625 lines).

15.734 kHz - 60 Hz (525 lines).

Levels: Y = 1 Vp/p (0.7 V Luma + 0.3 V Sync.).

Cr / Pr & Cb / Pb = 0.7 Vp/p.

Impedance: 75 ohms.

• HDTV - HD-YUV

Connectors: Inputs #1 to #4: female HD15. Inputs #5-#6: female DVI-I

(analog pins).

Formats: 720p/576p (60Hz), 1080i (50/60Hz), EDTV,

1080p (50/60Hz Reduce Blanking)

Levels: Y = 1 Vp/p (0.7 V + sync.).

Cr / Pr & Cb / Pb = 1 Vp/p (0.7 V + sync.).

Sync.: Tri-level: ±0.3V (positive/negative).

Bi-level: 0.3V (negative).

Impedance: 75 ohms.
