8-6. COMMUNICATION PORTS
8-7. TRIGGER
8-8. ENVIRONMENTAL
• RS232 (on DB9 female connector)
DataRate:   9600Bauds,8databits,1stopbit,noparitybit,noowcontrol.
Pin-out :
PIN # FUNCTIONS
2 Tx1 (transmit data to the control device)
3 Rx1 (receive data from the control device)
4 Rx2 (receive data from the display device)
5 GROUND (Gnd)
8 Reserved for manufacturer.
9 Tx2 (transmit data to the display device)
• LAN
Protocol : TCP (Transmission Control Protocol) / UDP (User Datagram Protocol).
DataRate:   10/100Mbps.
LED functions (on RJ45 connector) :
Left LED Right LED Meaning
OFF OFF No link
     OFF  ON  100BASE-Tlink.
     ON  OFF  10BASE-Tlink.
Connector : Jack 3.5 mm female.
Command levels : ON = + 12 Vdc trigger. OFF=0Vdc.
OutputCurrent:  0.1Amaxat+12Vdc.
NOTE : This output is activate with the AC Power Switch (ON/OFF).
PowerSupply:   InternalCE/UL/CSA/IEC950(50W),universal,automatic.
    Input:100VACto250VAC;50-60Hz;I=1AMax.
StorageTemperature:  -40°Cto+70°C(-40°Fto+158°F).
Operatingtemperature: 0°Cto+50°C(32°Fto122°F).
Hygrometry:   10%to80%(withoutcondensation).
Dimensions:   D265xW482xH44mm/D10.4”xW19”xH1.74”.
    Compatiblewiththe19”rack(height=1unit).
Weight : 3.5 kg / 7.7 lbs.
+ 12 Vdc
Ground

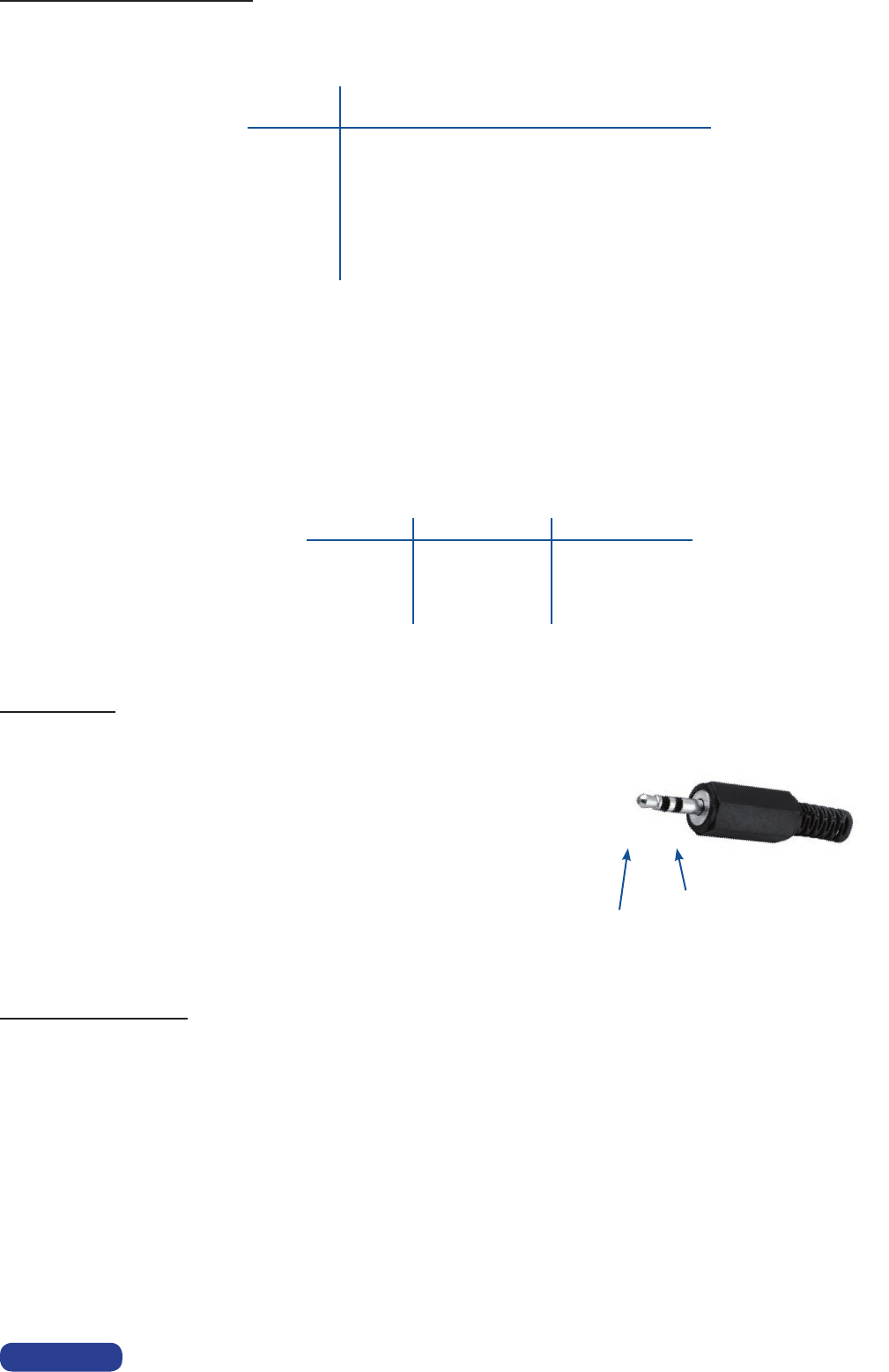

Jack 3.5 connection
