• CASE OF LAN PORT :
 -With the front panel display menu of the device, verify the conguration of the LAN communication port
(CONTROL > LAN setup), then activate the LAN communication port (CONTROL > RS232/LAN port > LAN).

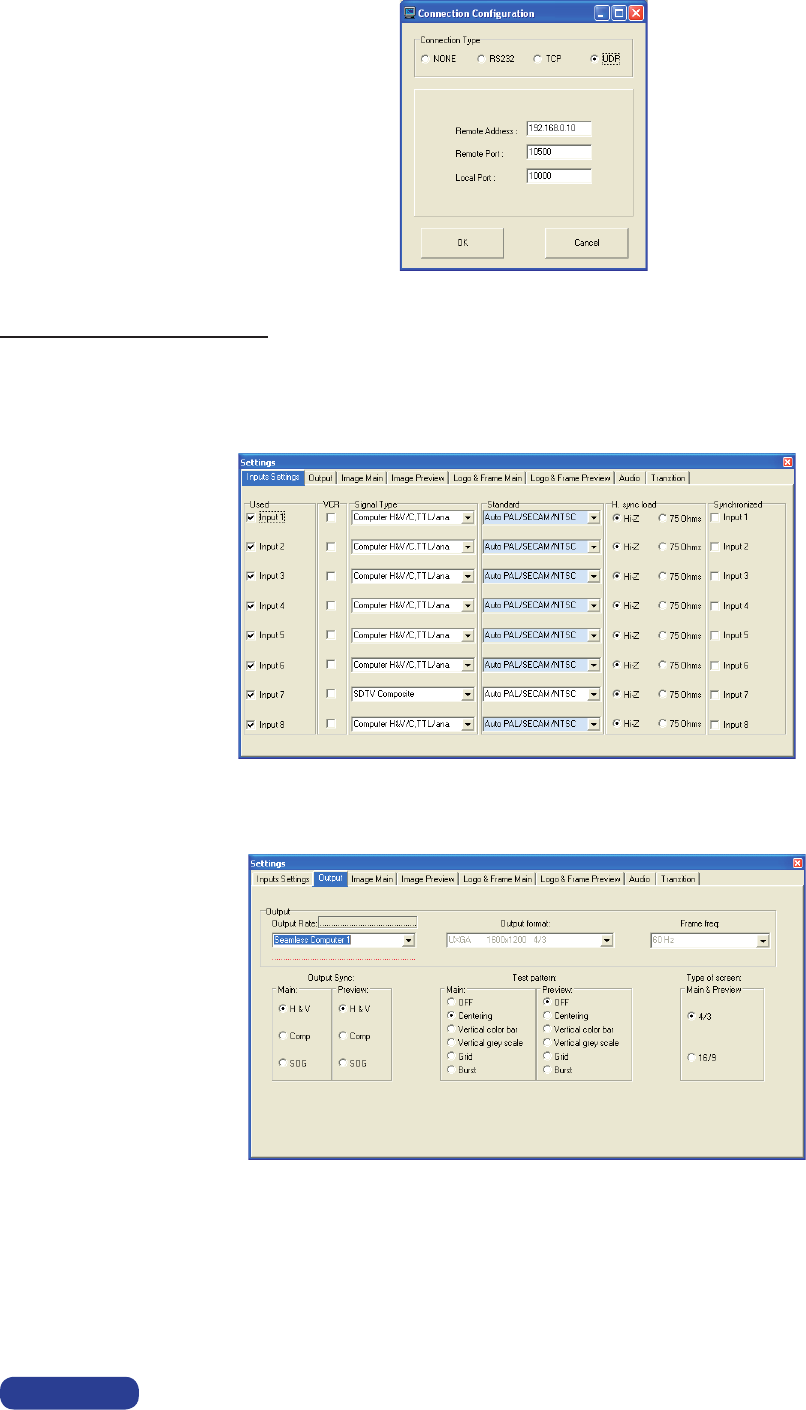

 -WiththeControlmenuofthesoftware,selectRS232/LANsetupandLANSetup.ThenconguretheLocal
port, the Remote IP address and the Remote port and click on Apply to setup the new values. The software will
also display Device connected.
① Click on the Settings button (left bottom of the window) to display the Settings window.
② Click on the Input Settings tab and select the Signal Type for each input. Then make the other adjustments
(video Standard...).
7-4. USING THE SOFTWARE
③ Click on the Output tab, then select the Switching mode (internal rate, input #- rate, or seamless), then select
the desired adjustment (output sync, output format, output rate...).
