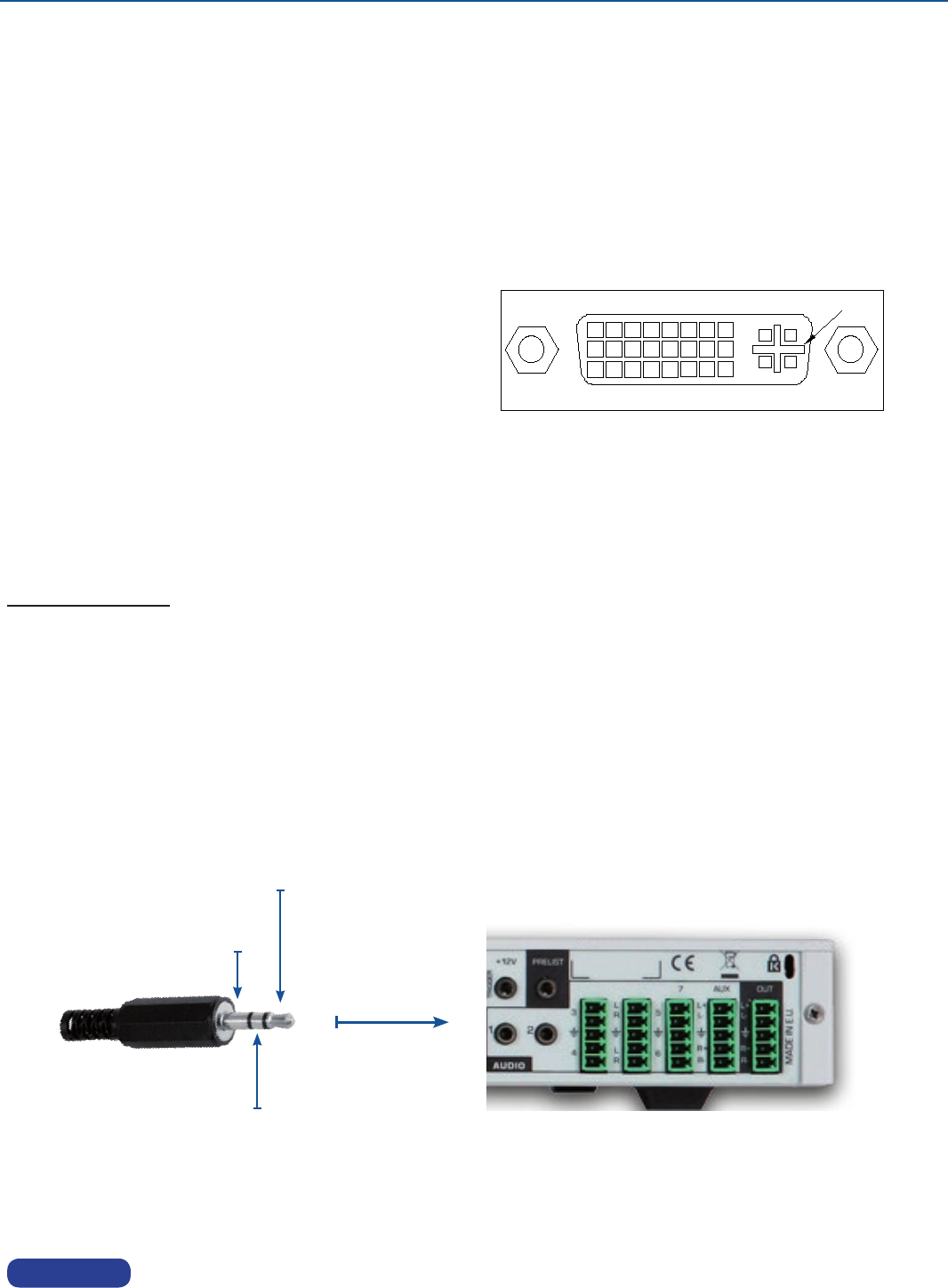

4) DVI-I PIN ASSIGNMENT :
8
1
9
16
24
17
C1 C2
C3
C4
C5
PAGE 15
Pin Function Pin Function Pin Function
Pin Function Pin Function Pin Function
1 TMDS Data 2- 9 TMDS Data 1- 17 TMDSData0-
2 TMDS Data 2+ 10 TMDS Data 1+ 18 TMDSData0+
3 TMDS Data 2 Shield 11 TMDS Data 1 Shield 19 TMDSData0Shield
4 Not used. 12 Not used. 20 Not used.
5 Not used. 13 Not used. 21 Not used.
6 DDC Clock 14 + 5V (Power) 22 TMDS Clock Shield
7 DDC Data 15 Ground for (+5V) 23 TMDS Clock+
8 Analog Vertical Sync. 16 Hot plug detect. 24 TMDS Clock-
C1 Not used
C2 Not used
C3 Not used
C4 Not used
C5 Not used
DDC = Display Data Channel.
TMDS = Transition Minimized Differential Signal.
3.5 mm JACK connector
RIGHT
(ring)
LEFT
(tip)
GROUND
2-5. AUDIO INPUTS
Each audio input either has a 3.5 mm jack female connector or a 5-pin MCO male connector.
1) 3.5 mm jack female connector
The INPUTS # 1, 2, and 8 are equipped with this audio connector. This connector allows connecting only UNBALANCED
audio source. Connect your UNBALANCED audio sources as follow :
