2-2. INPUT #1 DESCRIPTION

1) CONNECTION :

You can connect to this input one of the following sources :

• A composite video source.

• A S.video source.

• A Component video source.

• A HD-YUV source.

• A RGBS video source.

• An analog (RGBHV, RGsB, RGBS) computer source.

NOTE : You can use the DVI / HD15 adaptor provided with the device to connect analog sources

to the DVI-I (IN) connector.

• A digital computer source.

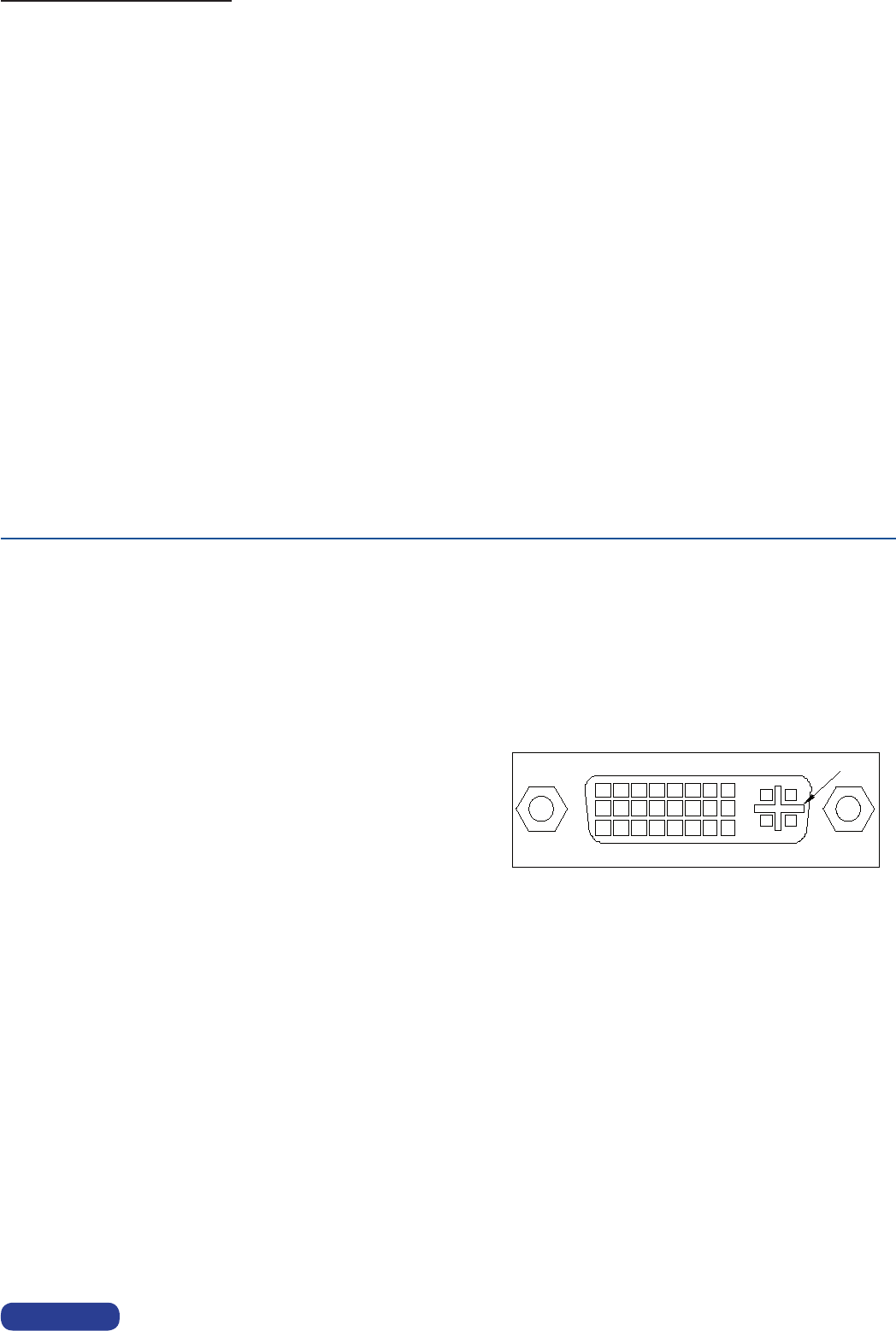

2) DVI-I PIN ASSIGNMENT :

The DVI-I female connector can be used with digital signals as well as analog signals. The table hereafter ex-

plains the pin assignment of this connector.

DDC = Display Data Channel.

TMDS = Transition Minimized Differential Signal.

3) AUDIO SOURCE :

You can connect an AUDIO stereo source to the 3.5 mm jack connector.

C1 C2

PAGE 13

Pin Function Pin Function Pin Function

1 TMDS Data 2- 9 TMDS Data 1- 17 TMDSData0-

2 TMDS Data 2+ 10 TMDS Data 1+ 18 TMDSData0+

3 TMDS Data 2 Shield 11 TMDS Data 1 Shield 19 TMDSData0Shield

4 Not used. 12 Not used. 20 Not used.

5 Not used. 13 Not used. 21 Not used.

6 DDC Clock 14 + 5V (Power) 22 TMDS Clock Shield

7 DDC Data 15 Ground for (+5V) 23 TMDS Clock+

8 Analog Vertical Sync. 16 Hot plug detect. 24 TMDS Clock-

C1 Analog Red video (or Cr / Pr or C)

C2 Analog Green Video (or Y or composite video)

C3 Analog Bleu Video (or Cb / Pb)

C4 Analog Horizontal Sync (or composite sync)

C5 Analog Common Ground Return
