INPUT #8 : Universal (computer and video) input. This input accepts the following sources :
• AUDIO L+R : Audio stereo source on jack 3.5 female connector.
• COMPUTER/TV/HDTV : Computer (RGBHV, RGBS or RGsB) or video (SDTV or HDTV) source on a HD15
female connector.
• S.VIDEO : S.VIDEO (Y/C) source on a 4-pin mini DIN female connector.
• C.VIDEO : Composite Video (PAL, NTSC...) source on a RCA female connector.
Fn : Secondary function selection button.
EFFECT PRESET : Selection of the 6 EFFECT PRESET.
NOTE : Effect preset #4, 5 & 6 can be used by rst pressing Fn.
FREEZE : Freeze the main output (the blinking LED indicates the FREEZE is active).
LOGO : Allows to display logo onto the Main output.
NOTE : Logo display can be used by rst pressing Fn.
INPUT SELECTION : • Selection of the 8 input sources : 1 to 8.
• Selection of the 4 frames : F1 to F4.
NOTE : - Frame selection can be used only when Fn is activate (LED blinking quickly).
- The pre-selected source (LED blinking slowly) is displayed onto the PRE-
VIEW output.
- The pre-selected frame (LED blinking quickly) is displayed onto the PRE
VIEW output.
- The source/frame displayed onto the MAIN output is indicate by a turn ON LED.
• A long push (1 second) on the selected/preselected input button allows to active the
BLACK function. A black screen is displayed onto the corresponding output. A short
push on the same button allows to inactive this function.
TAKE : Allows to display the pre-selected source onto the Main output with the selected effect.
CONTROL :
◄►
Allows to scroll thru the different menus (in Control mode).
EXIT – MENU : Switches between Status and Control mode.
ENTER : Validates a selected item.
PAGE10

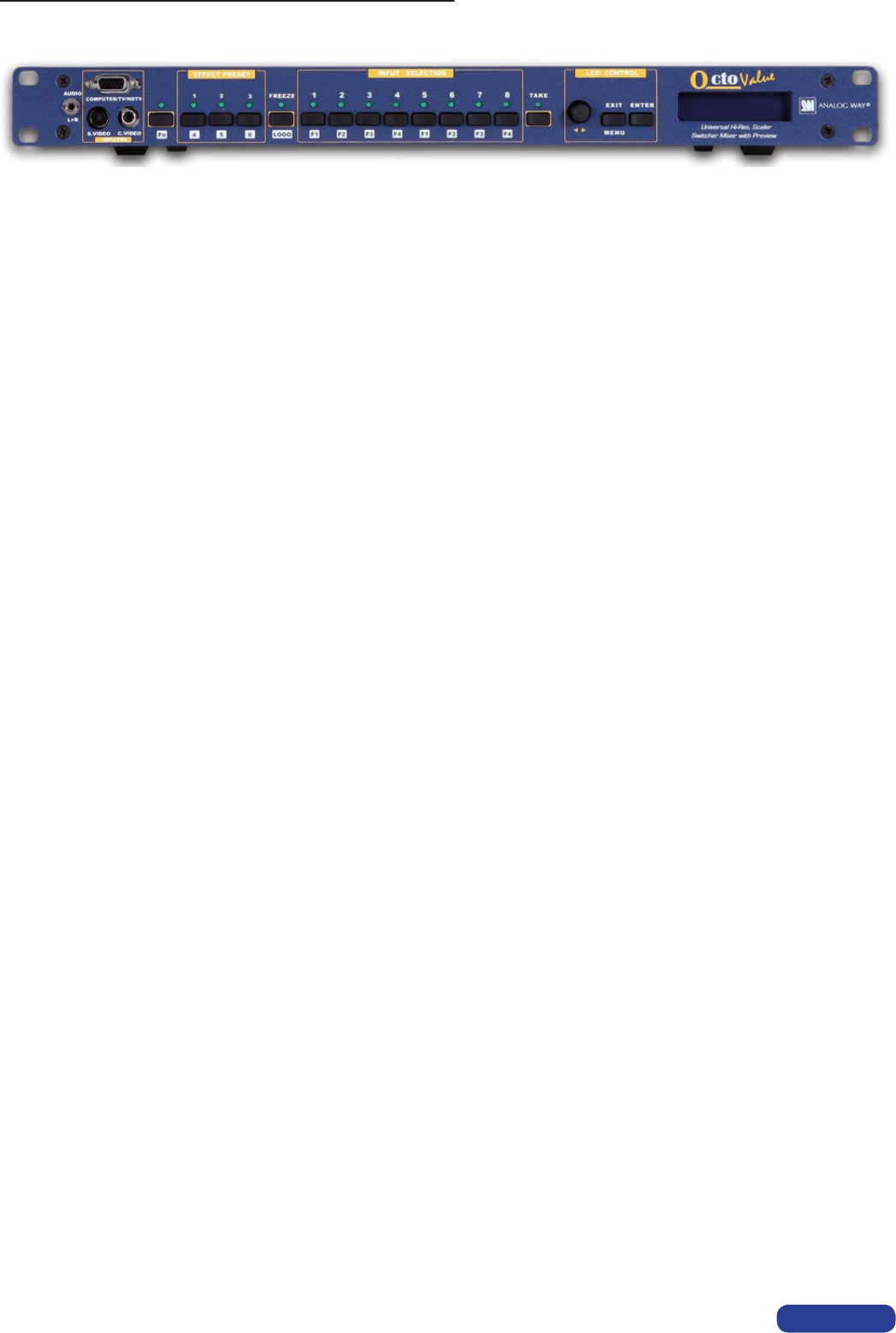

1-5 FRONT PANEL DESCRIPTION OF THE OCTO VALUE
