User guide

Di-VentiX II - Ref. DVX8044

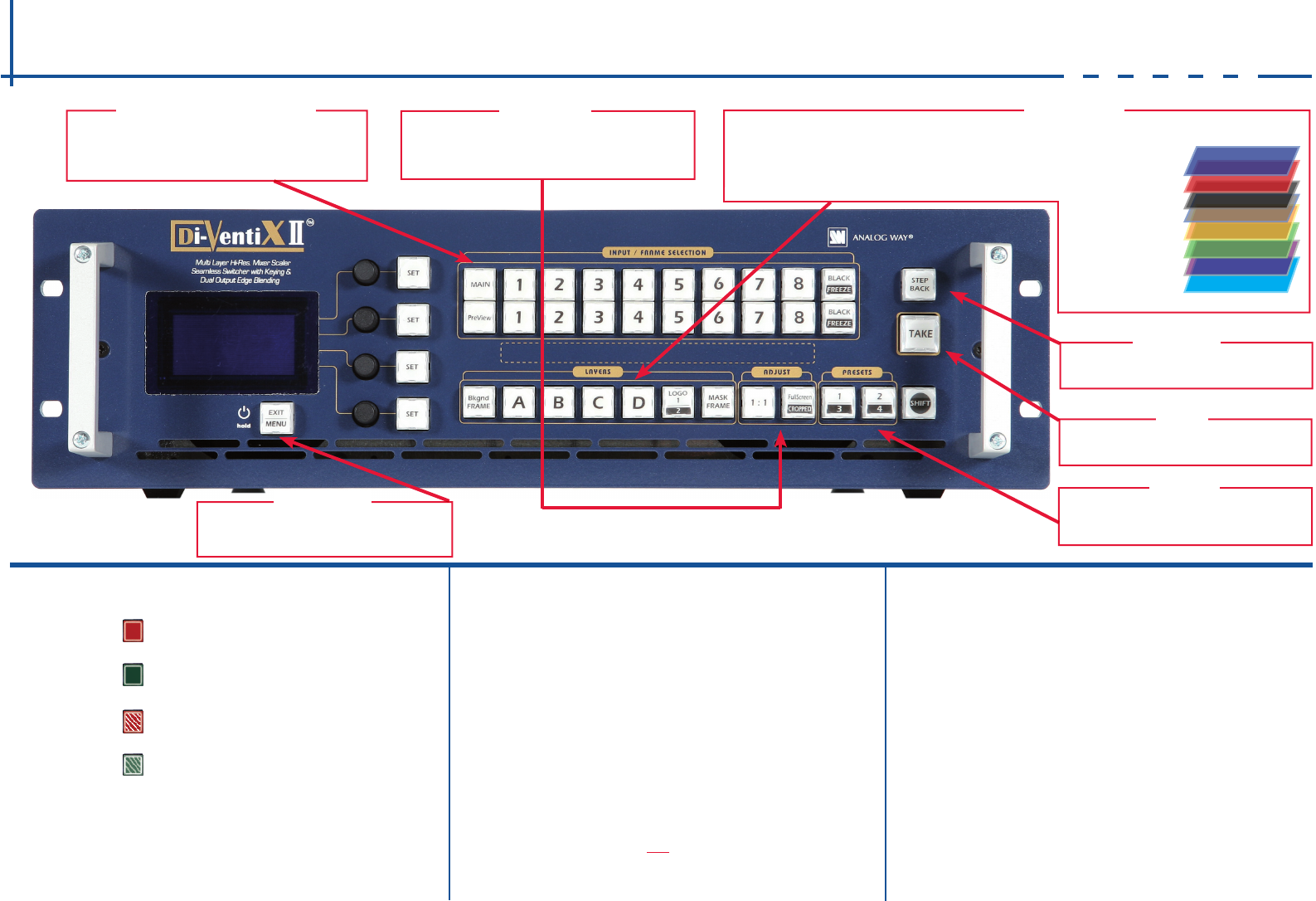

Front Panel Description
EXIT/MENU: Home Menu or back one level
ENTER: Validates the menu or command
Press to select a layer, then choose an input.
LOGO: Display a partial screen Logo
Mask Frame: display a Mask Frame
Bkgnd Frame: Display full screen frame in this layer
Recall a custom stored preset (4 memories
available).
To store a preset, use Menu -
>
Preset.
#1 to #8: Press to access analog source #1 to #8
BLACK: Clear the active layer
FREEZE: Freeze the input linked to the current layer
on MAIN
1:1: Press to adjust the aspect out 1:1 for the image
Full Screen: to adjust the image to full screen
Cropped: to adjust the image to cropped
CONTROL
LAYERS
PRESET
INPUT / FRAME SELECTION
ADJUST
I N P U T S E T U P
1- Press the [EXIT/MENU] button from the Home menu (all functions must be
conrmed by the [ENTER] button)
2- Select INPUT and AUTOSET ALL
3- If the acquisition has failed, check all connections and perform a manual setup
4- For a comprehensive Input Setup, please refer to user’s Manual
5- For a manual input setup, press the [EXIT/MENU] button:
a) Select INPUT,
b) Select an input from Input #1 up to SDI #2, then
c) Select TYPE.
NOTE: To adjust input Size or Pos, use the Layer Menus.
To adjust Blanking, use the Auto-Centering or Blanking adjustments in the
Image menu.
Transition the pre-selected sources onto
the MAIN output with the selected effects
Recall the last preset into your preview
monitor
TAKE
STEP BACK
O P E R AT I O N S O V E R V I E W
WORKING IN MIXER MODE
1- Select a Layer then select an INPUT.
2- On the preview screen, the input appears
3- Select an [EFFECT] (open/close)
4- Press [TAKE] to view the result on the Main screen
5- Try enabling the ‘Preset Toggle’ from the Control menu to have your preview
replaced by program during each Take
WORKING WITH PIPs IN MIXER MODE
1- Press one of the layers button. On the preview screen, the PIP (layer) appears
as a color rectangle
2- Select an input. On the preview screen, the input appears in the layer rectangle
3- Adjust the PIP (layer) with Layer menu (Pos & Size or Zoom by Toggle function)
4- Select a transition (open/close) or an effect into Layer menu HOME MENU
5- Press [TAKE] to view the result on the main screen
6- To remove layer, press [BLACK] then [TAKE]
7- For another PIP setup, repeat from step #1
O U T P U T S E T U P
1- Press the [EXIT/MENU] button from the Home menu (all functions must be
conrmed by the [ENTER] button)
2- Select OUTPUT
3- Select OUTPUT FORMAT
4- On Format line, select the display’s native resolution
5- Control or adjust your display device (Monitor or Video Projector)
6- If necessary, select TEST PATTERN in the Output menu
B U T TO N C O L O R U S A G E
#1 = Source is on the main outputs
Solid red: #2 = Freeze enable
#3 = Stand-by button
#4 = Preset Selection
Solid green: #1 = Source is on Preview
#2 = Function available for modication
Blinking red: Layer/source selected, and is currently active on
the main output
Blinking green: Layer/source selected, and is not currently active
one the main output
LAYER HIERARCHY
Logo 2
Mask Frame
Logo 1
Layer B
Layer D
Layer A
Layer C
Background Frame
