ADV7174/ADV7179
Rev. B | Page 8 of 52
t
3
t
2
t
6
t
1
t
7
t
5
t
3
t
4
t
8
SDATA
S
CLOCK
02980-0A-002

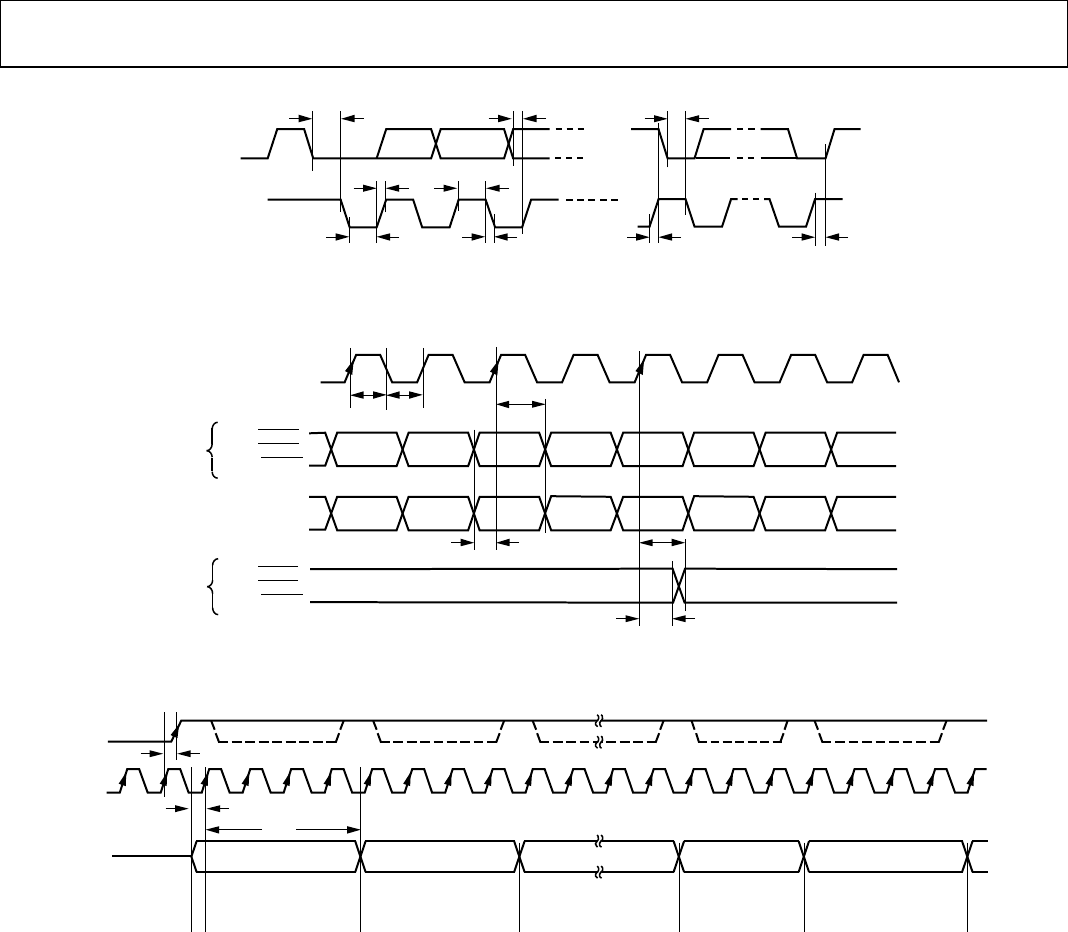

Figure 2. MPU Port Timing Diagram
t
9
t
11
CLOCK
PIXEL INPUT
DATA
t
10
t
12
HSYNC,
FIELD/VSYNC,
BLANK
HSYNC,
FIELD/VSYNC,
BLANK
Cb Y Cr Y Cb Y
t
14
CONTROL
I/PS
CONTROL
O/PS
S
t
13
02980-A-003
Figure 3. Pixel and Control Data Timing Diagram
t
16
t
17
t
18
TTXREQ
CLOCK
TTX
4 CLOCK
CYCLES
4 CLOCK
CYCLES
4 CLOCK
CYCLES
3 CLOCK
CYCLES
4 CLOCK
CYCLES
02980-A-004
Figure 4. Teletext Timing Diagram
