ADV7174/ADV7179
Rev. B | Page 52 of 52

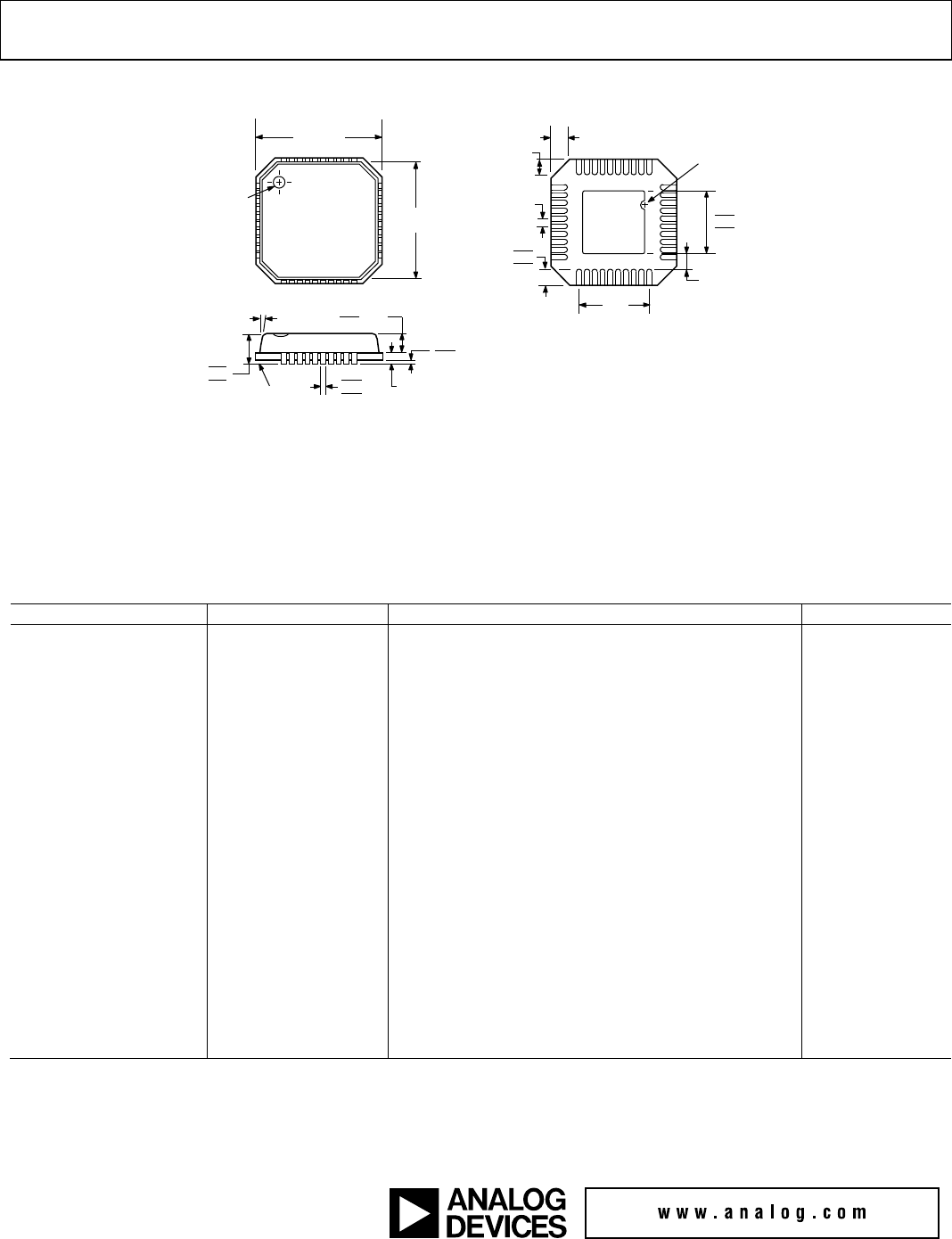

OUTLINE DIMENSIONS
1
40
10
11
31
30
21
20
BOTTOM
VIEW
4.25
4.10 SQ
3.95
TOP
VIEW
6.00
BSC SQ
PIN 1
INDICATO
R
5.75
BSC SQ
12° MAX
0.30
0.23
0.18
0.20 REF
SEATING
PLANE
1.00
0.85
0.80
0.05 MAX
0.02 NOM
COPLANARITY
0.08
0.80 MAX
0.65 TYP
4.50
REF
0.50
0.40
0.30
0.50
BSC
PIN 1
INDICATOR
0.60 MAX
0.60 MAX
0.25 MIN
COMPLIANT TO JEDEC STANDARDS MO-220-VJJD-2
Figure 81. 40-Lead Lead Frame Chip Scale Package [LFCSP_VQ]
6 mm × 6 mm Body, Very Thin Quad
(CP-40-1)
Dimensions shown in millimeters
Note that the exposed metal paddle on the bottom side of the LFCSP package must be soldered to PCB ground for proper heat dissipation
and also for noise and mechanical strength benefits.
ORDERING GUIDE
Model Temperature Range Package Description Package Option
ADV7179KCP
1
0°C to 70°C 40-Lead Lead Frame Chip Scale Package [LFCSP_VQ] CP-40-1
ADV7179KCP-REEL
1
0°C to 70°C 40-Lead Lead Frame Chip Scale Package [LFCSP_VQ] CP-40-1
ADV7179KCPZ
2
0°C to 70°C 40-Lead Lead Frame Chip Scale Package [LFCSP_VQ] CP-40-1
ADV7179KCPZ-REEL
2
0°C to 70°C 40-Lead Lead Frame Chip Scale Package [LFCSP_VQ] CP-40-1
ADV7179BCP
1
−40°C to +85°C 40-Lead Lead Frame Chip Scale Package [LFCSP_VQ] CP-40-1
ADV7179BCP-REEL
1
−40°C to +85°C 40-Lead Lead Frame Chip Scale Package [LFCSP_VQ] CP-40-1
ADV7179BCPZ
2
−40°C to +85°C 40-Lead Lead Frame Chip Scale Package [LFCSP_VQ] CP-40-1
ADV7179BCPZ-REEL
2
−40°C to +85°C 40-Lead Lead Frame Chip Scale Package [LFCSP_VQ] CP-40-1
ADV7179WBCPZ
2, 3
−40°C to +85°C 40-Lead Lead Frame Chip Scale Package [LFCSP_VQ] CP-40-1
ADV7179WBCPZ–REEL
2, 3
−40°C to +85°C 40-Lead Lead Frame Chip Scale Package [LFCSP_VQ] CP-40-1
ADV7174KCP
1
0°C to 70°C 40-Lead Lead Frame Chip Scale Package [LFCSP_VQ] CP-40-1
ADV7174KCP-REEL
1
0°C to 70°C 40-Lead Lead Frame Chip Scale Package [LFCSP_VQ] CP-40-1
ADV7174KCPZ
2
0°C to 70°C 40-Lead Lead Frame Chip Scale Package [LFCSP_VQ] CP-40-1
ADV7174KCPZ-REEL
2
0°C to 70°C 40-Lead Lead Frame Chip Scale Package [LFCSP_VQ] CP-40-1
ADV7174BCP
1
−40°C to +85°C 40-Lead Lead Frame Chip Scale Package [LFCSP_VQ] CP-40-1
ADV7174BCP-REEL
1
−40°C to +85°C 40-Lead Lead Frame Chip Scale Package [LFCSP_VQ] CP-40-1
ADV7174BCPZ
2
−40°C to +85°C 40-Lead Lead Frame Chip Scale Package [LFCSP_VQ] CP-40-1
ADV7174BCPZ-REEL
2
−40°C to +85°C 40-Lead Lead Frame Chip Scale Package [LFCSP_VQ] CP-40-1
ADV7174WBCPZ
2, 3
−40°C to +85°C 40-Lead Lead Frame Chip Scale Package [LFCSP_VQ] CP-40-1
ADV7174WBCPZ-REEL
2, 3
−40°C to +85°C 40-Lead Lead Frame Chip Scale Package [LFCSP_VQ] CP-40-1
EVAL-ADV7179EBZ
2
Evaluation Board
EVAL-ADV7174EBZ
2
Evaluation Board
1
Not recommended for new designs.
2
Z = RoHS Compliant Part.
3
Automotive product.
Purchase of licensed I
2
C components of Analog Devices or one of its sublicensed Associated Companies conveys a license for the purchaser under the Philips I
2
C Patent
Rights to use these components in an I
2
C system, provided that the system conforms to the I
2
C Standard Specification as defined by Philips.
